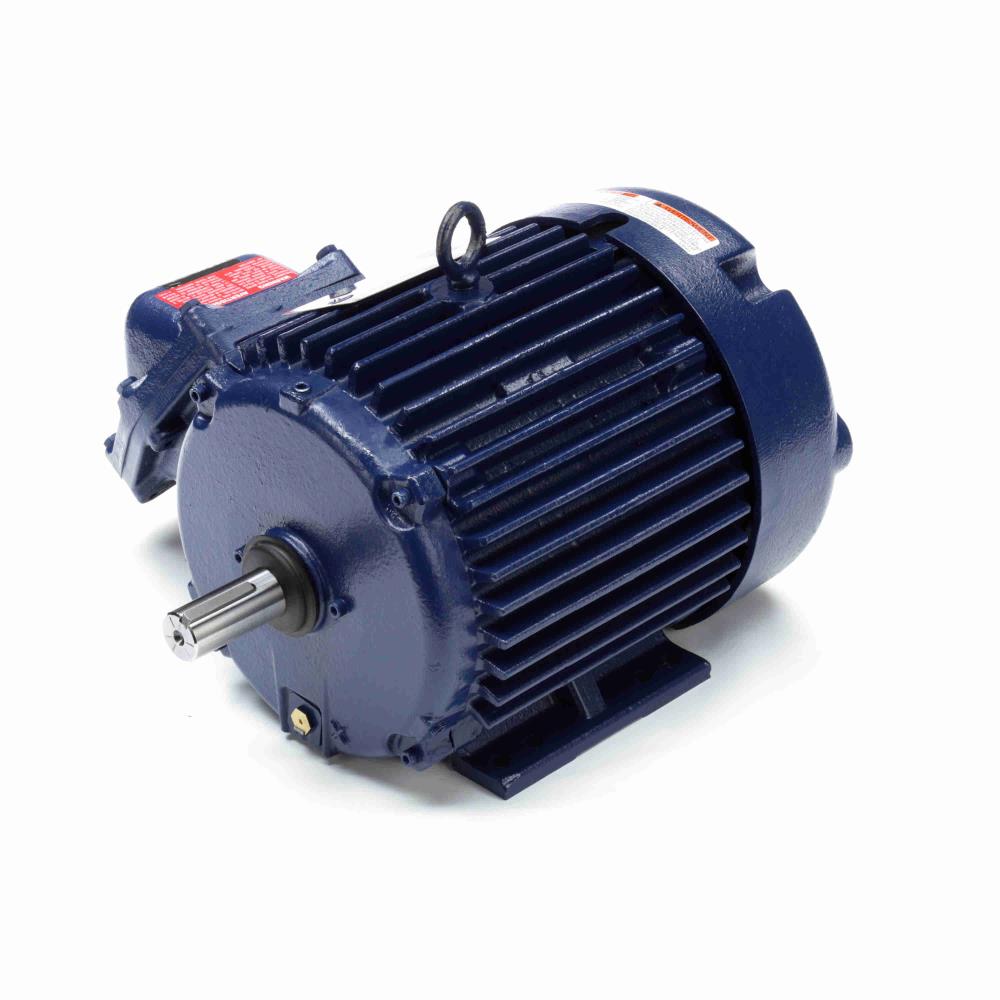

Marathon Motors MU004A U004A Explosion Proof Motor

Name: Marathon Motors MU004A U004A Explosion Proof Motor
Brand: MARATHON MOTORS
SKU: MU004A
Price: 1111.57 USD
Availability: OutOfStock

Brand: MARATHON MOTORS

SKU: MU004A

Availability: Out Of Stock

Quantity:

$1,111.57; $1,111.57
Unit price: per

LTL Delivery

This product weighs 143 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845

Chat

Secure Payments
Easy Returns
Expert Advice
Fast Shipping

Description

MU004A
Brand: Marathon Motors
Catalog Number: U004A
Category: Motor
Class: Explosion Proof Motor
Country of Origin: United States of America
UPC Number: 722856023162
Specifications
Electrical Type: Squirrel Cage Inverter Rated
Phase: 3
Frame: 182T
HP: 3
Speeds: 1
Enclosure: EPFC
Voltage: 230/460
RPM: 1765
Material: Cast Iron
Efficiency: 90.2
Rotation: Reversible
Amps: 8.0/4.0
Frequency: 60
Service Factor: 1.15
Overload Protector: Thermostats (N/C)
Certifications
CE: No
CSA: No
UL: UL Listed; also, UL Certified for Canada
Shaft
Type: T
Diameter (in): 1.125
Extension (in): 2.85
Frame
Length (in): 8.
Size: 182
Suffix: T
Mounting
Type: Rigid Base
Orientation: Horizontal
Dimensions
Length (in): 22.50
Width (in): 16.81
Height (in): 14.00
Weight (lb): 145.00
C (in): 15.87
