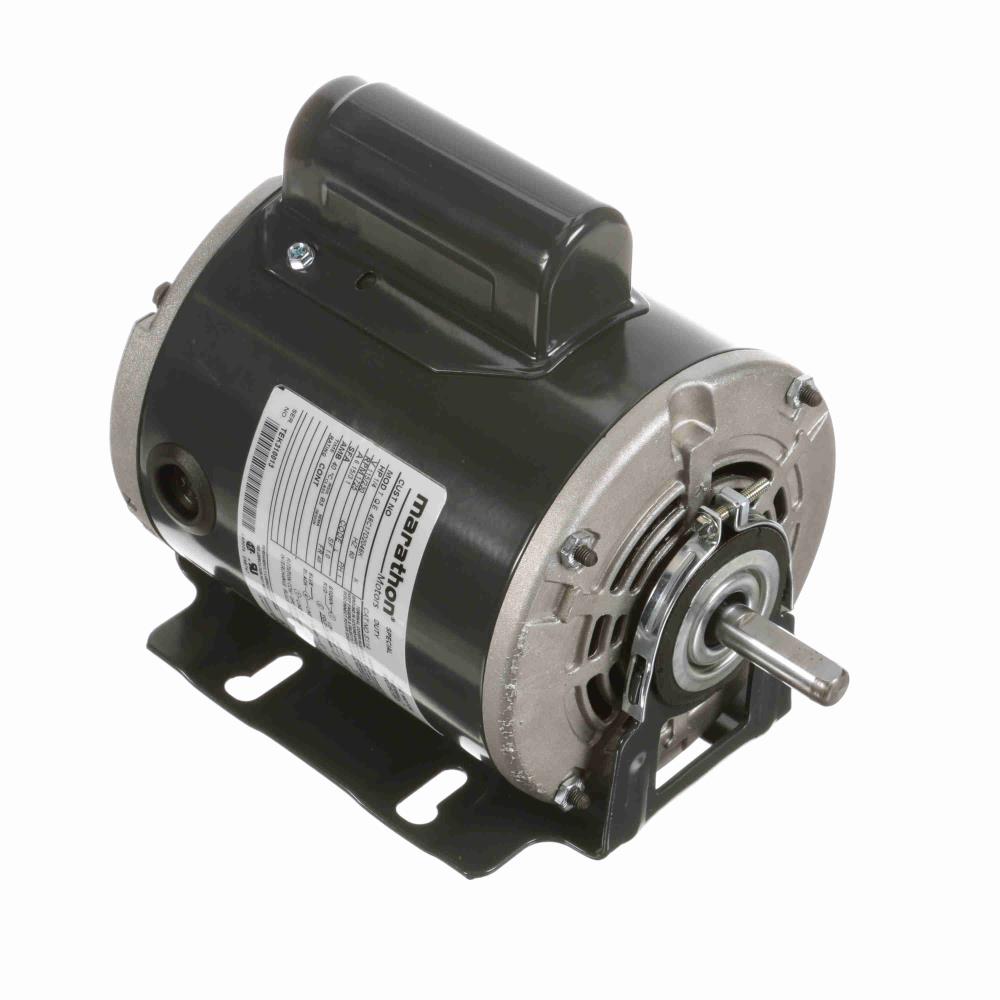

MARATHON MOTORS MS119 General Purpose Motor 1/4 HP

Product Description

The MARATHON MOTORS MS119 is a single-phase general-purpose motor designed for various applications. This motor is equipped with a capacitor start feature, making it suitable for tasks requiring reliable power. With a voltage rating of 115/230V, it offers flexibility for different electrical needs. The motor includes an auto overload protector for enhanced safety and efficiency.

• Capacitor start motor for reliable performance
• Open drip proof enclosure made from rolled steel
• Reversible rotation for versatility in application

Product Highlights

This motor is ideal for HVAC systems, pumps, and other industrial uses. Its robust construction ensures longevity, and the design facilitates easy installation.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MS119

Technical Specifications

• Horsepower: 1/4 HP
• Speed: 1725 RPM
• Frame Size: 48
• Enclosure: Open Drip Proof (ODP)
• Material: Rolled Steel
• Number of Speeds: 1
• Overload Protector: Auto
• Voltage: 115/230V
• Phase: Single Phase
• RPM Range: 1425-1800
• Electrical Type: Capacitor Start
• Diameter: 5.6 inches
• Rotation: Reversible
• Amperage: 6.2-3.1 Amps
• Shaft Dimension: 1/2 x 1-1/2 inches
• Mounting Type: Resilient Base
• Bearing Type: Ball Bearing
