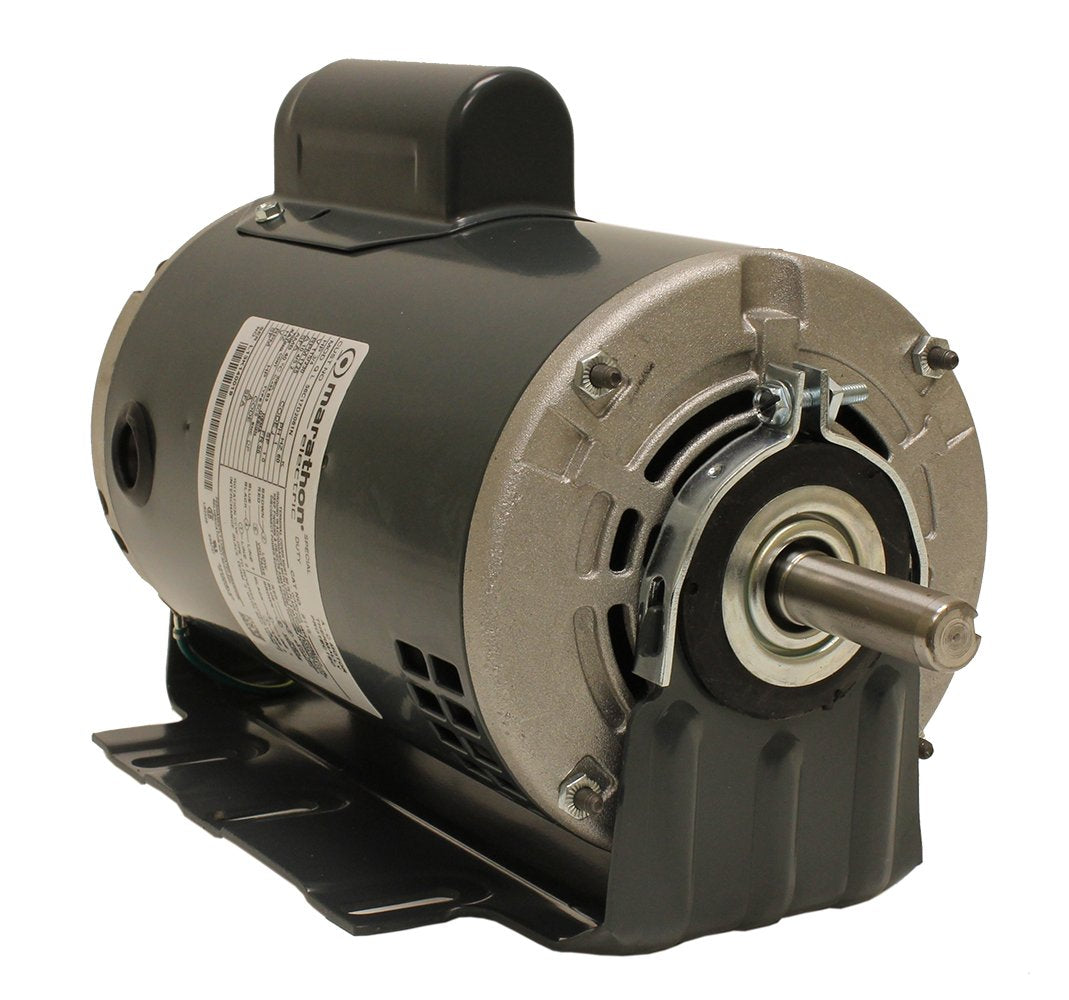

Marathon Electric MS115 Marathon S115 56 Frame General Purpose Motor, Single Split Phase, Resilient Base, Open Drip Proof, 10.4/5.2 amp, 3/4 hp, 1800 RPM, 115/230V

Product Description

The Marathon Electric MS115 is a general purpose motor designed for reliability and efficiency. It features a single split phase operation and runs at three-fourths horsepower. With an operational speed of one thousand eight hundred RPM, this motor supports both 115 and 230-volt power supplies, drawing 10.4/5.2 amps.

• Single split phase operation
• 1800 RPM maximum speed
• Open drip proof enclosure with resilient base

Product Highlights

This motor is ideal for various applications where robust performance is required. Its resilient base provides stability during operation, while the open drip proof design ensures protection from water and moisture.

Product Information

Standard Information

• Type: Electric Motor
• Frame Size: 56
• Horsepower: 0.75

Technical Specifications

• Voltage: 115/230V
• Amperage: 10.4/5.2
• Speed: 1800 RPM
• Weight: 26 lbs
• Enclosure Type: Open Drip Proof
• Mounting Type: Resilient Base
• Design Code: C
• Material: Rolled Steel
