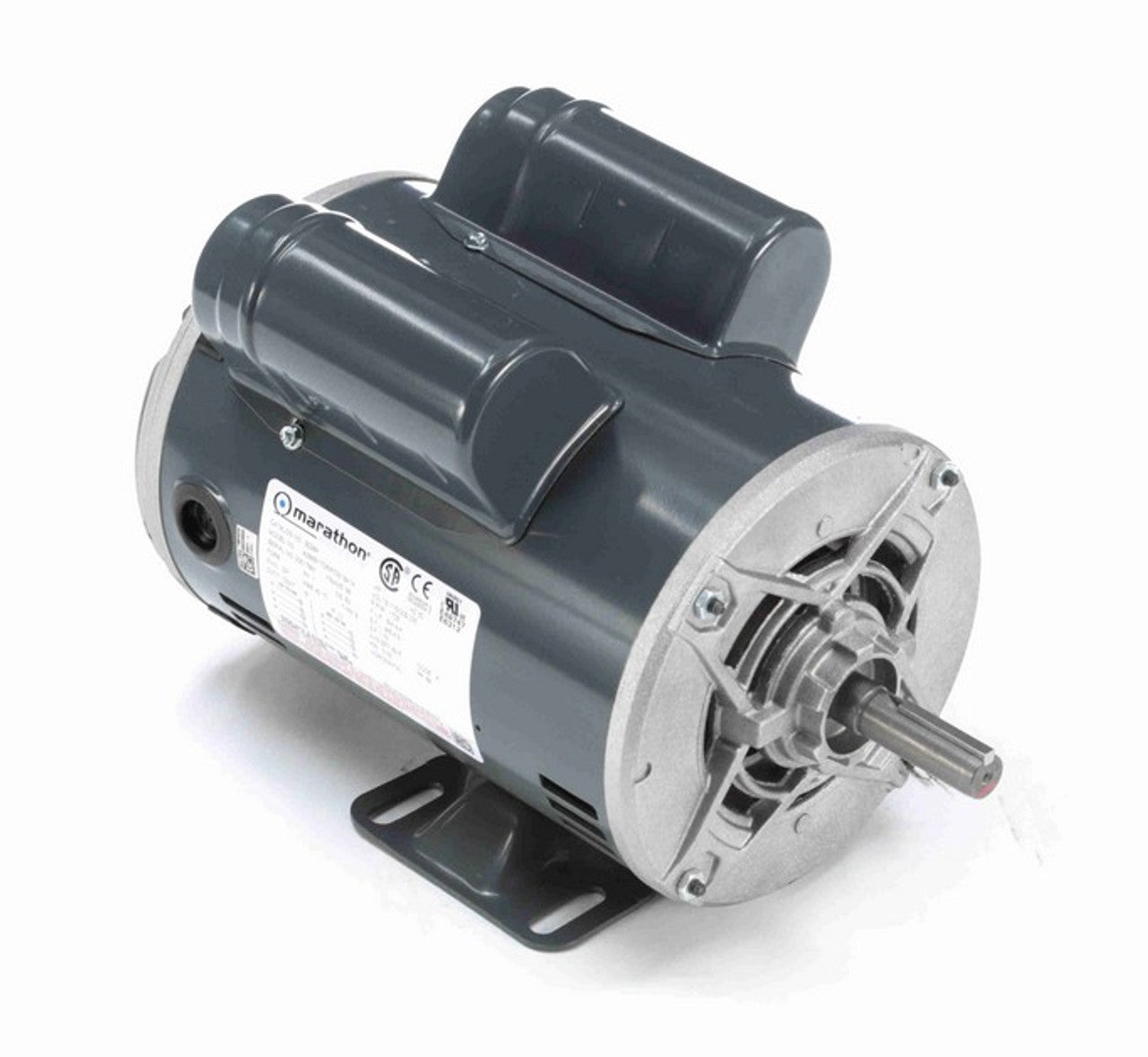

Marathon Motors MS038A S038A General Purpose Motor

MS038A
Brand: Marathon Motors
Catalog Number: S038A
Category: Motor
Class: General Purpose Motor
Country of Origin: Mexico
UPC Number: 722856056139
Specifications
Electrical Type: Capacitor Start Capacitor Run
Phase: 1
Frame: 56
HP: 1
Speeds: 1
Enclosure: DP
Voltage: 115/208-230
RPM: 1725
Material: Rolled Steel
Efficiency: 82.6
Rotation: Selective CCW
Amps: 8.0/4.4-4.0
Frequency: 60
Service Factor: 1
Overload Protector: Automatic
Certifications
CE: Yes
CSA: Yes
UL: Recognized
Shaft
Type: NEMA 56
Diameter (in): 0.625
Extension (in): 1.88
Frame
Size: 56
Suffix: None
Mounting
Type: Rigid Base
Orientation: Horizontal
Dimensions
Length (in): 16.38
Width (in): 10.50
Height (in): 8.62
Weight (lb): 37.00
C (in): 12.49
