MARATHON MOTORS MS036A General Purpose Motor

Product Description

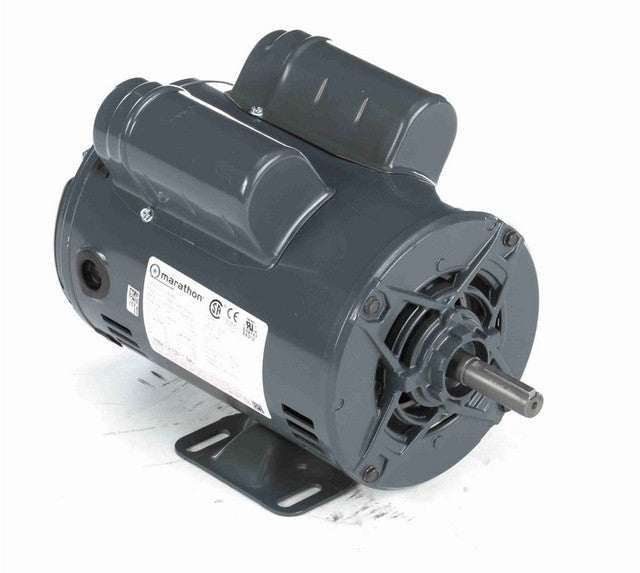

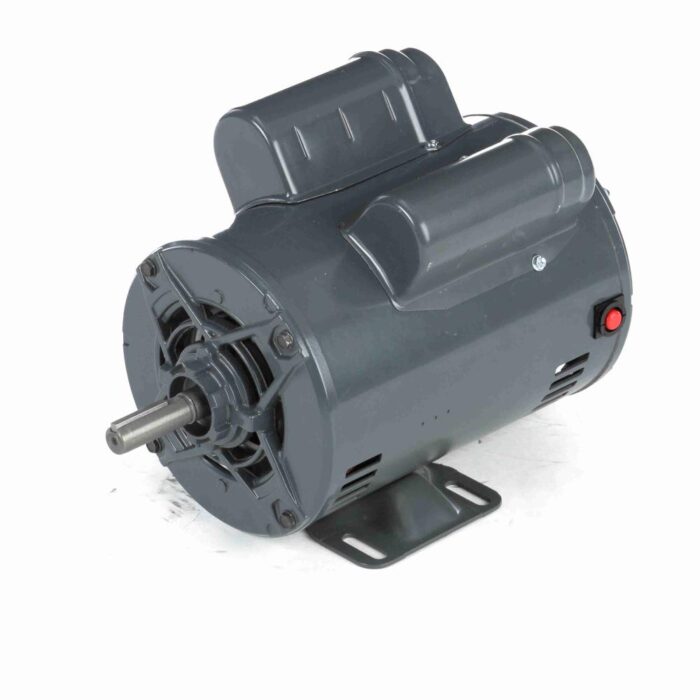

The MARATHON MOTORS MS036A is a single-phase, capacitor start/run motor built for general-purpose use. It operates at 115/208-230 volts and features a rigid base mount. The motor is designed with an open drip proof (ODP) enclosure made from rolled steel. It supports reversible operation and utilizes ball bearings. Additionally, this motor comes with a manual overload protector.

• Single-phase capacitor start/run motor
• Open drip proof enclosure
• Operates at 115/208-230V

Product Highlights

This motor is ideal for a range of applications, ensuring reliable performance in various environments.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MS036A

Technical Specifications

• Motor Type: Capacitor start/run
• Phase: Single
• Input Voltage: 115/208-230 V
• Overload Protection: Manual
• Frame Size: 56
• Enclosure: Open Drip Proof (ODP)
• Material: Rolled Steel
• Horsepower: 3/4 HP
• RPM: 1725
• Number of Speeds: 1
• Current Draw: 6.6/3.5-3.3 Amps at 115/208-230 V, 60Hz
• Service Factor: 1.25
• Shaft Diameter: 5/8 inches
• Shaft Length: 1 7/8 inches
• Reversible: Yes
• Mounting Type: Rigid base mount
• Bearings: Ball bearings
• Insulation Class: Class B
