MARATHON MOTORS MR345 IEC Motor

Product Description

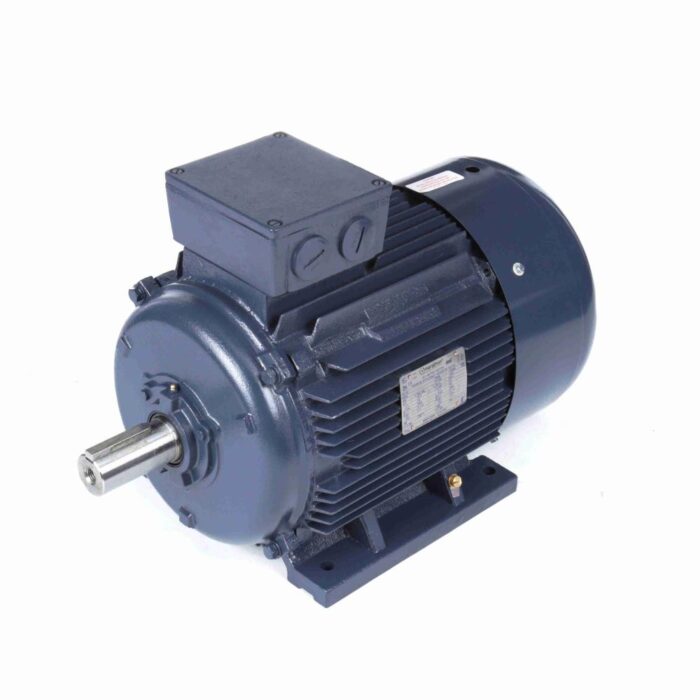

The MARATHON MOTORS MR345 is an electric motor intended for industrial applications. It has a cast iron body and is designed to be totally enclosed and fan cooled (TEFC). This motor supports reversible rotation and includes oil seals found at both the drive and non-drive ends. It is equipped with an Inverter Rated Insulation System (IRIS) and features a drilled and tapped shaft.

• Electrical Type: Phase
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Certifications: CSA File # LR33543, UL File # E57948, Conformité Européenne (CE)

Product Highlights

The MR345 is suitable for various industrial applications and ensures reliable performance.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MR345

Technical Specifications

• Electrical Type: Phase
• Input Voltage: 230/460 V
• Horsepower: 40 HP
• Frame Size: 200L
• Housing Material: Cast Iron
• Speed: 3560 RPM
• Number of Speeds: 1
• Output Current: 92.0/46.0 Amps
• Service Factor: 1.15
• Insulation Class: Class F
• Conduit Box Location: F3 (Top)
• Inverter Rated Insulation System: IRIS
• Drilled Tapped Shaft: Yes
• Oil Seals: Drive End and Non-Drive End
• Rotation: Reversible
• Certifications: CSA File # LR33543, UL File # E57948, Conformité Européenne (CE)
