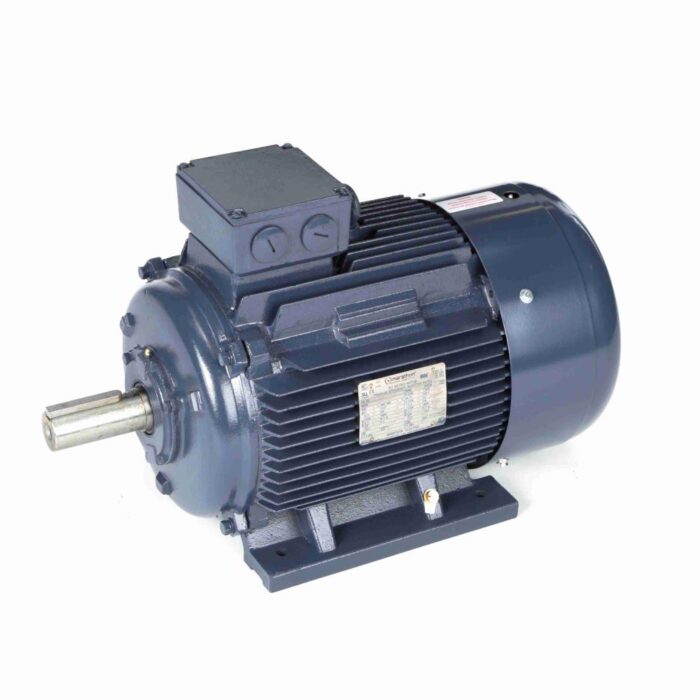

MARATHON MOTORS MR338A MARATHON MOTORS R338A 20HP Globetrotter IEC Motor

Product Description

The Marathon Motors R338A is a 20HP Globetrotter IEC motor suitable for various applications such as fans, pumps, compressors, and conveyors, adhering to IEC dimensions and electrical standards. This motor is designed to meet a range of operational demands in diverse settings.

• Totally Enclosed Fan-Cooled (TEFC) structure ensures long-lasting operation.
• IP55 rated for dust and water protection.
• Wiring diagram on the motor plate for straightforward installation.

Product Highlights

This motor is ideal for applications that require reliability and adherence to IEC standards.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MR338A

Technical Specifications

• HP: 20
• RPM: 1185
• Frame Size IEC: 180L
• Mount IEC: B3 Foot Mount
• IP Rating: IP55
• IEC Shaft Dia: 48mm
• Voltage: 230/460
• Efficiency: 92.4
• Inverter Ready: Yes
• Service Factor: 1.15
• Enclosure: TEFC
• Phase: 3
• Frequency: 60 Hz
• Current: 53.5/26.7 amps
• Base: Rigid
• Bearings: Ball bearings
• Reversible: Yes
• Insulation Class: F
