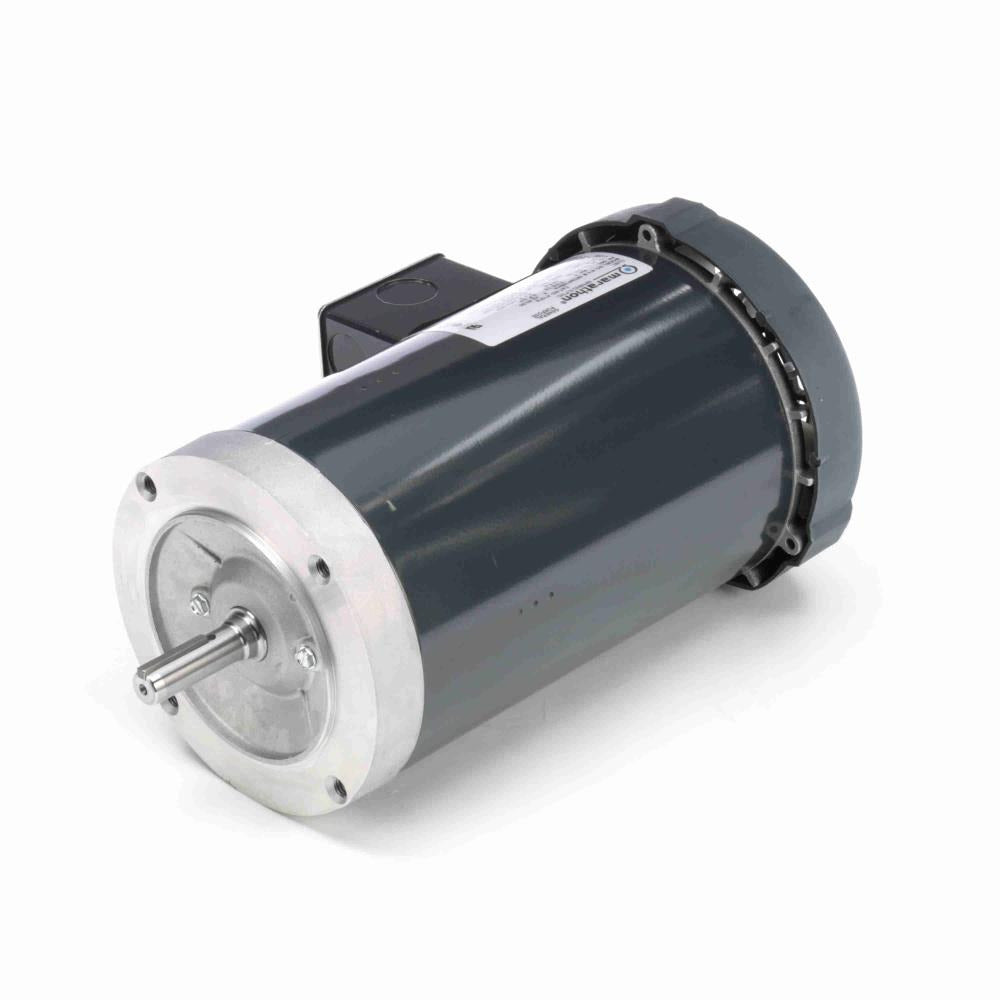

Marathon MP107A General Purpose Motor 3 HP 56

Product Description

The Marathon MP107A is a general-purpose motor featuring a three-phase design. With a power output of three horsepower, it is suitable for a variety of applications requiring reliable performance and efficiency. The motor operates at dual voltage settings of two hundred thirty or four hundred sixty volts, and has an overall frame size of fifty-six. It is built with a rolled steel material that enhances durability.

• Three-phase motor design
• Voltage options: 230/460
• TEFC enclosure for protection of internal components

Product Highlights

This motor is designed for versatility and can be mounted in C-Face or footless configurations, making it adaptable for multiple uses. It includes features like single shaft type and a compact diameter of six point five inches.

Product Information

Standard Information

• Brand: Marathon
• MPN: MP107A

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 3
• Frame Size: 56
• Diameter: 6.5 inches
• Enclosure Type: TEFC
• Voltage: 230/460
• Rotation: REV
• Amperage: 7.6/3.8
• Mounting Type: C-Face / Footless
• Material: Rolled Steel
• Shaft Type: Single
