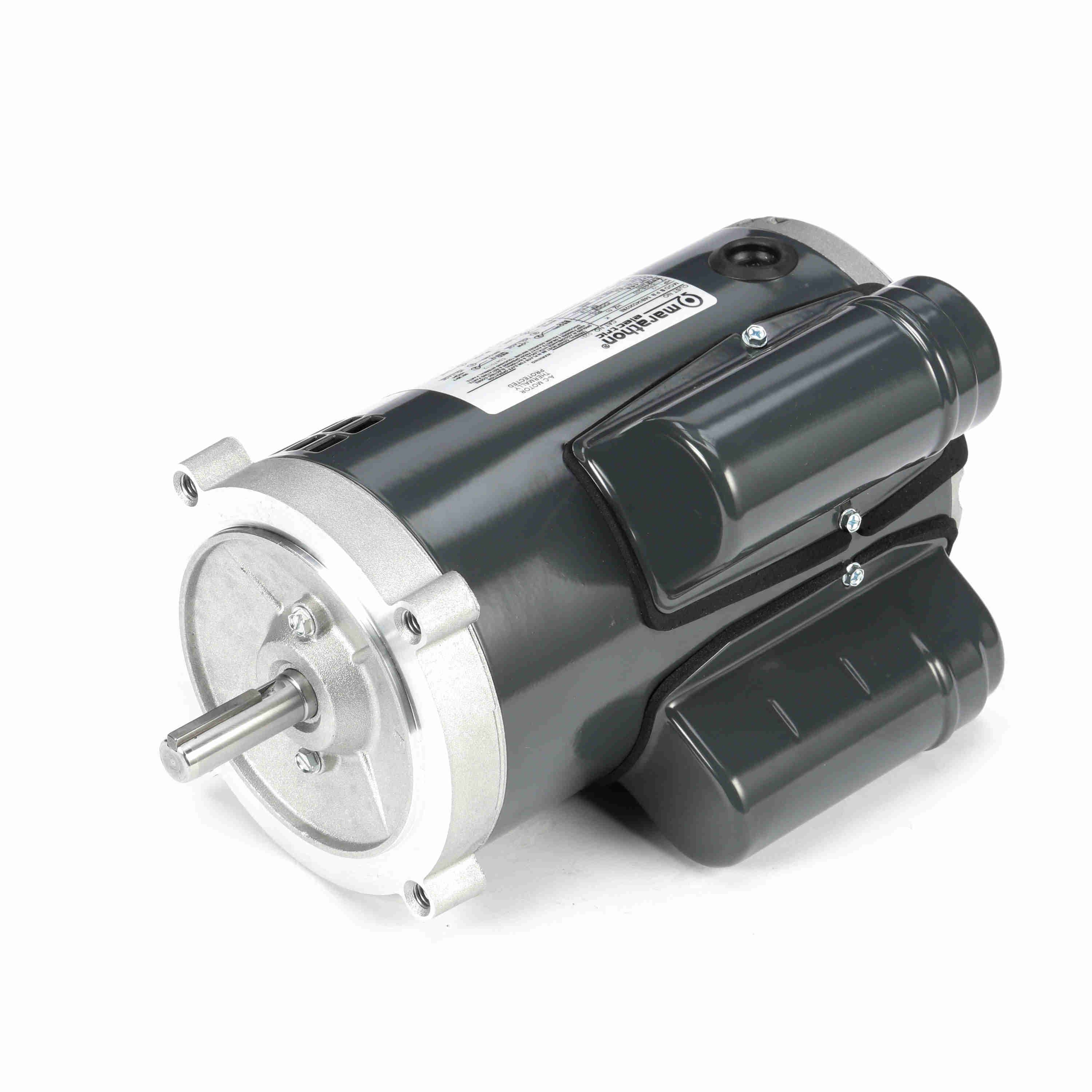

Marathon MO231 Oil Burner Motor 1 1/2 Hp 3600 RPM 115/208-230 VAC

Product Description

The Marathon MO231 Oil Burner Motor is a reliable choice for industrial applications. This motor is designed for efficiency and durability, making it suitable for various electrical and HVAC systems. It features a 1 1/2 horsepower capacity and operates at 3600 RPM with a voltage range of 115/208-230 VAC.

• 1 1/2 horsepower motor
• 3600 RPM speed
• Voltage range of 115/208-230 VAC

Product Highlights

This motor is built from rolled steel and includes a manual overload protector. It is designed for capacitor start and provides a single speed operation. The motor's C-Face, footless mounting makes it versatile for various uses.

Product Information

Standard Information

• Brand: Marathon
• MPN: MO231
• Product Name: Oil Burner Motor

Technical Specifications

• Electrical Type: Cap Start
• Horsepower: 1 1/2 hp
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: Open Drip Proof (ODP)
• Phase: Single
• Voltage: 115/208-230 VAC
• Rotation: Reverse (REV)
• Overload Protector: Manual
• Material: Rolled Steel
• Mounting: C-Face, Footless
• Amperage: 13.0/7.4-6.5
• Shaft Type: Single
