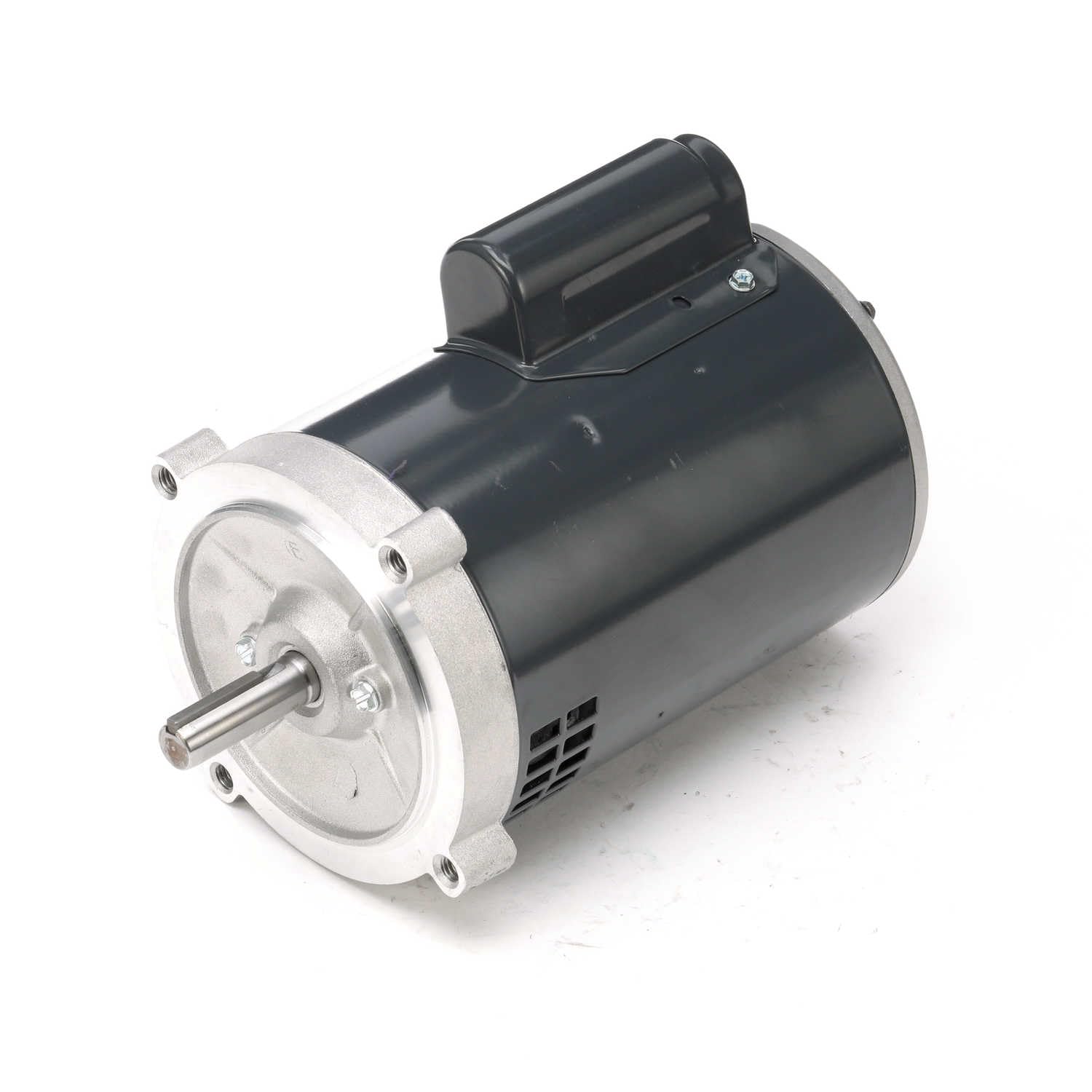

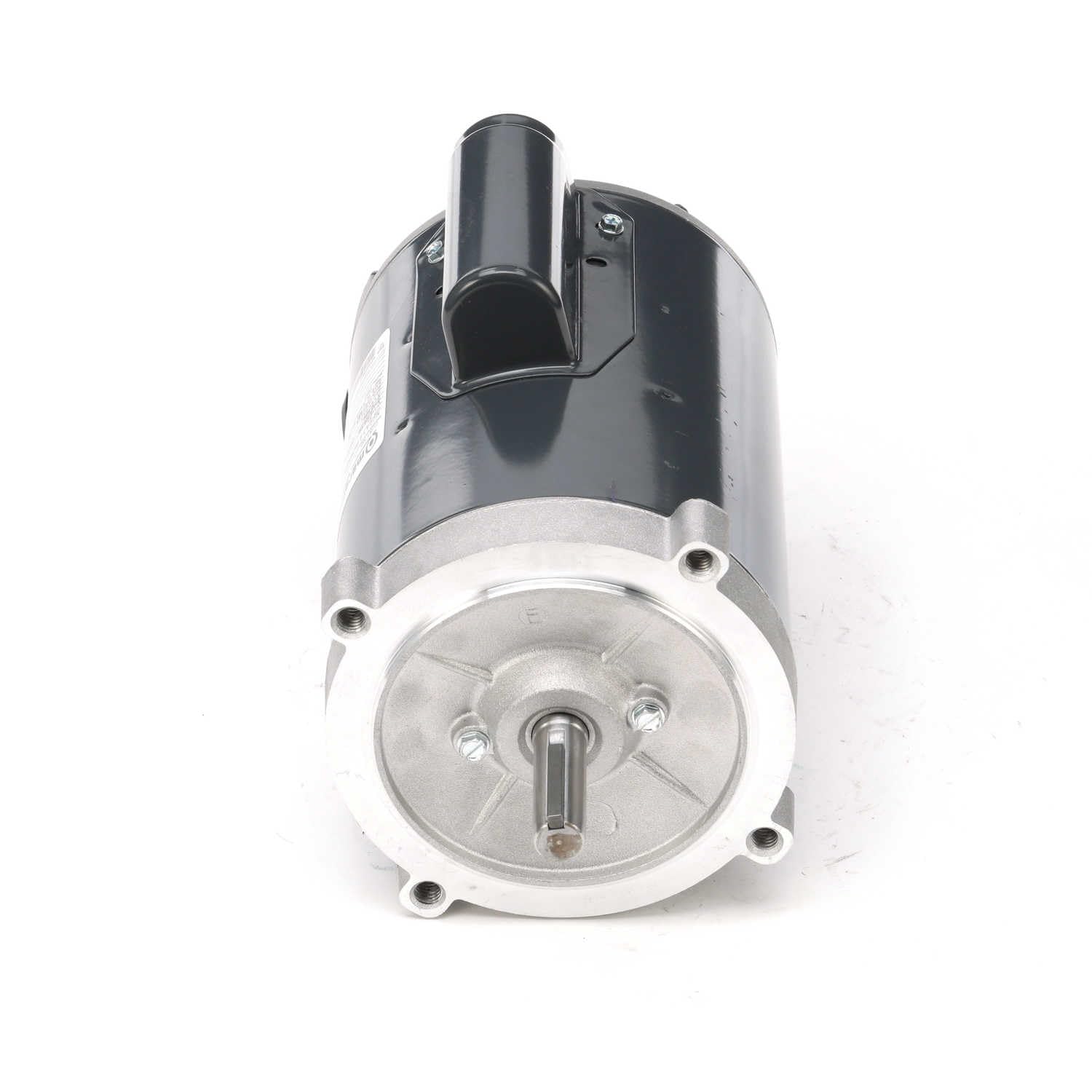

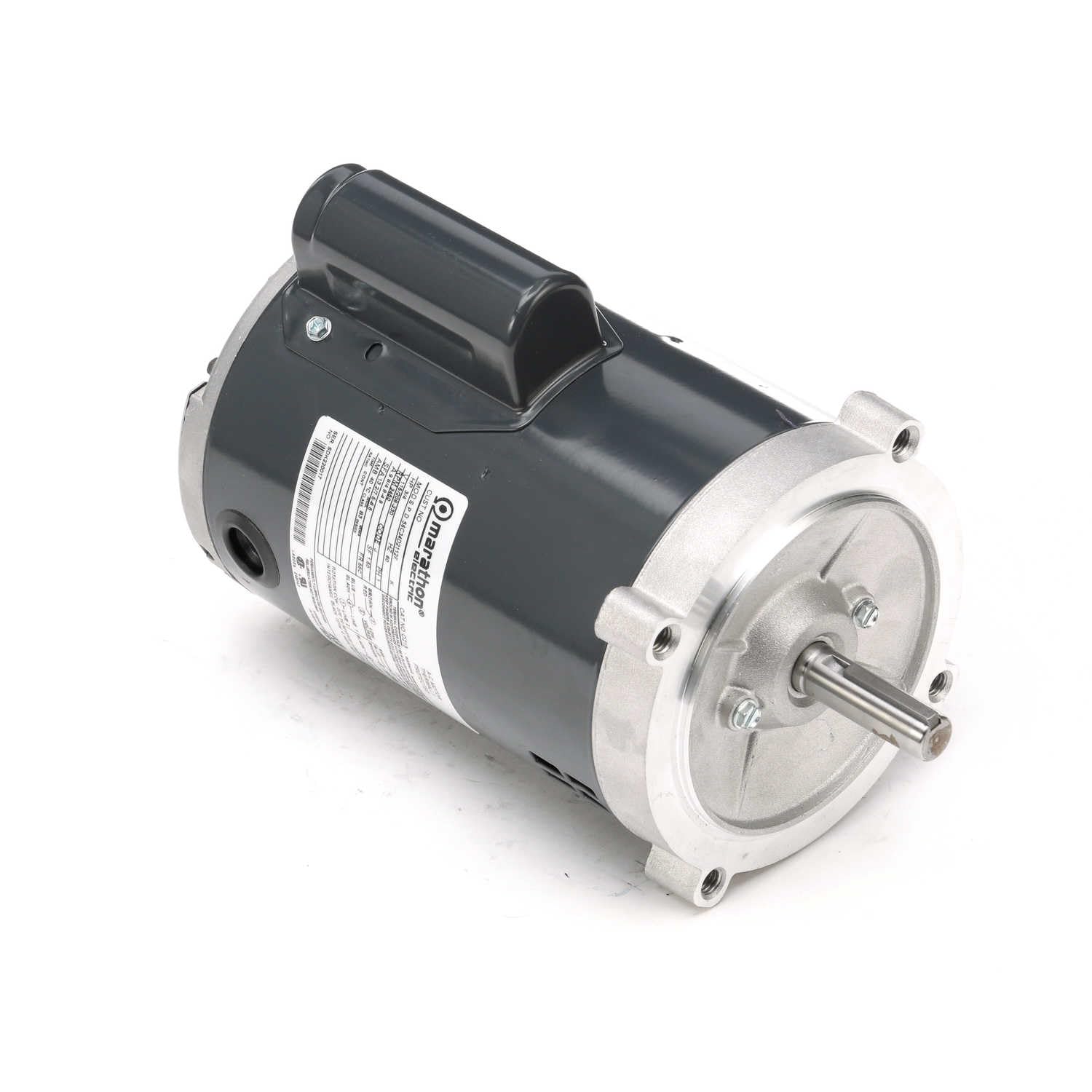

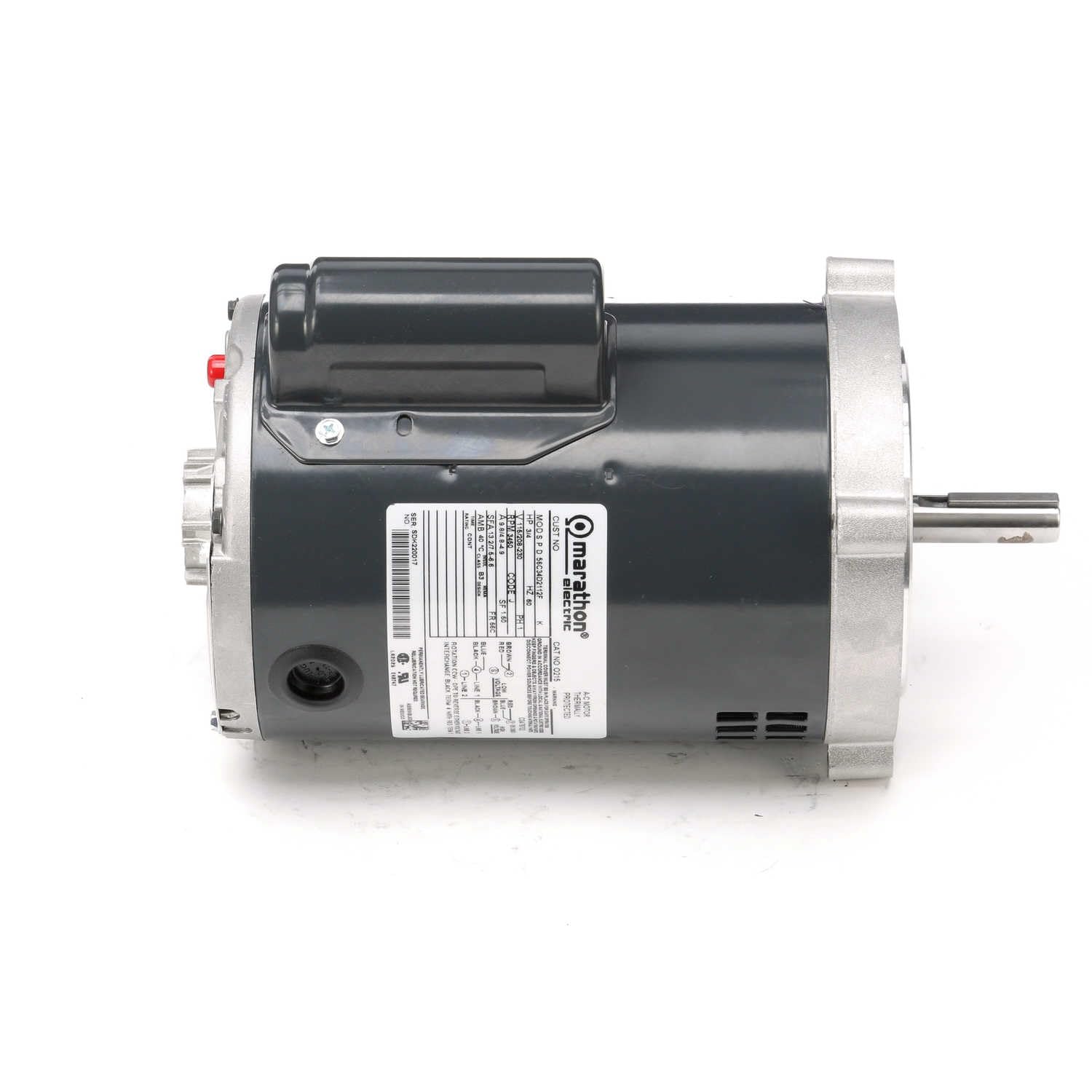

Marathon MO215 Oil Burner Motor, 3/4 hp, Capacitor Start, 115/208-230V

Product Description

The Marathon O215 Oil Burner Motor is a capacitor start motor designed for reliable operation in various applications. With a power rating of three-fourths horsepower, this single-phase motor operates efficiently at speeds up to three thousand six hundred RPM. It is compatible with voltages ranging from one hundred fifteen to two hundred thirty volts and is suitable for both residential and light commercial oil burning systems.

• Capacitor start motor with single-speed operation
• Three-fourths horsepower with maximum speed of three thousand six hundred RPM
• Open drip proof (ODP) enclosure and flange mounting design

Product Highlights

This motor features a robust construction, suitable for flame sensors and oil furnaces. It has a built-in manual overload protection to prevent damage during operation.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MO215

Technical Specifications

• Type: Capacitor Start
• Horsepower: 0.75 HP
• Frame Size: 56
• Voltage: 115/208-230V
• Amperage: 9.8/4.8-4.9 A
• Speed: 3600 RPM
• Weight: 18 lbs
• Mounting Type: C-Face, Footless
