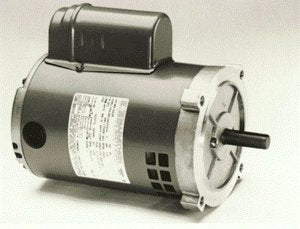

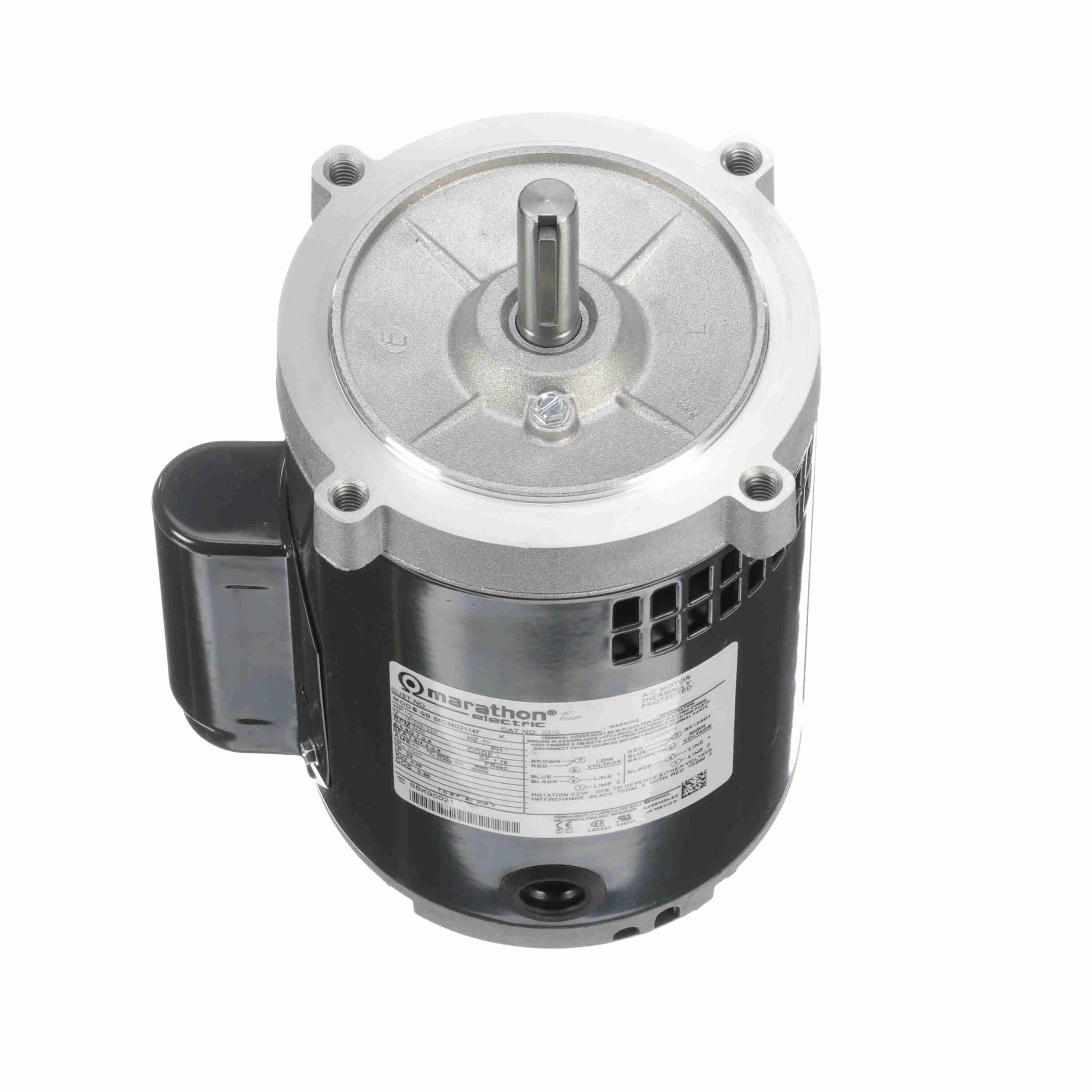

Marathon MO210 Oil Burner Motor 1/3 hp 3600 RPM 56C Frame

Product Description

The Marathon MO210 Oil Burner Motor 56C34D2114 by Marathon Electric is a single-phase, capacitor start motor designed for oil burners. It operates at 1/3 horsepower with a maximum speed of 3600 RPM and voltage options of 115/208-230 VAC. This motor features a 56C frame, open drip-proof (ODP) enclosure, and ball bearings for reliable operation. It includes auto protection and has flange mounting capabilities.

• Single phase, capacitor start
• 1/3 hp, 3600 RPM
• 56C frame, ODP enclosure

Product Highlights

This motor is ideal for oil burner applications, providing reliable start and run performance. It is designed with a ball bearing system and an open drip-proof enclosure for enhanced durability.

Product Information

Standard Information

• Brand: Marathon
• MPN: MO210
• Model: 56C34D2114

Technical Specifications

• Horsepower: 1/3 hp
• Maximum Speed: 3600 RPM
• Frame: 56C
• Voltage: 115/208-230 VAC
• Enclosure: Open drip-proof (ODP)
• Mounting Type: Flange
• Protection: Auto
• Bearing Type: Ball
