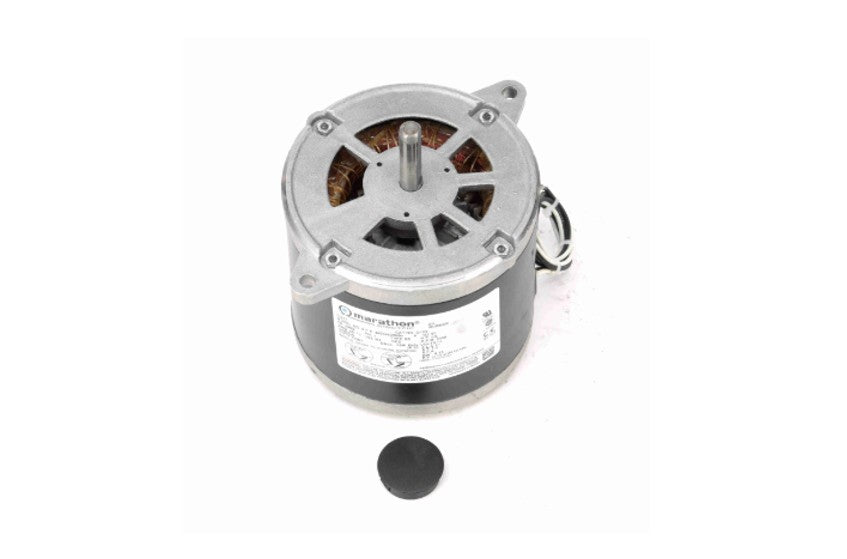

Marathon Electric MO102 48M Frame 48S34S2005 Open Drip Proof Oil Burner Motor 1/6 hp

Product Description

The Marathon Electric MO102 is a reliable oil burner motor designed for various heating applications. This open drip proof motor operates at 1/6 horsepower and has a maximum speed of 3450 RPM. It features a flange mount and sleeve bearing design for easy installation and maintenance. The motor runs on 115 VAC and provides one-speed operation, making it suitable for a wide range of oil burner systems.

• Type: Open Drip Proof (ODP) motor
• Voltage: Operates at 115 VAC
• Weight: Lightweight design of 11 pounds

Product Highlights

The Marathon Electric MO102 offers a robust construction and efficient performance for oil burning systems.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MO102

Technical Specifications

• Frame Size: 48M
• Horsepower: 1/6 hp
• Speed: 3450 RPM
• Voltage: 115 Volts
• Amperage: 3 Amps
• Dimensions: 11.45 x 7.36 x 7.28 inches
• Weight: 11 pounds
• Type: Split Phase
• Mounting Type: Flange Mount
