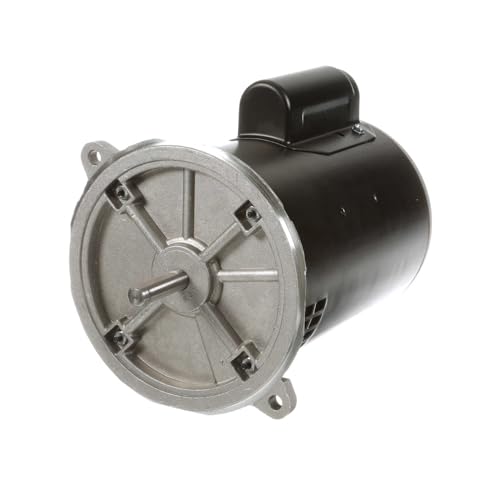

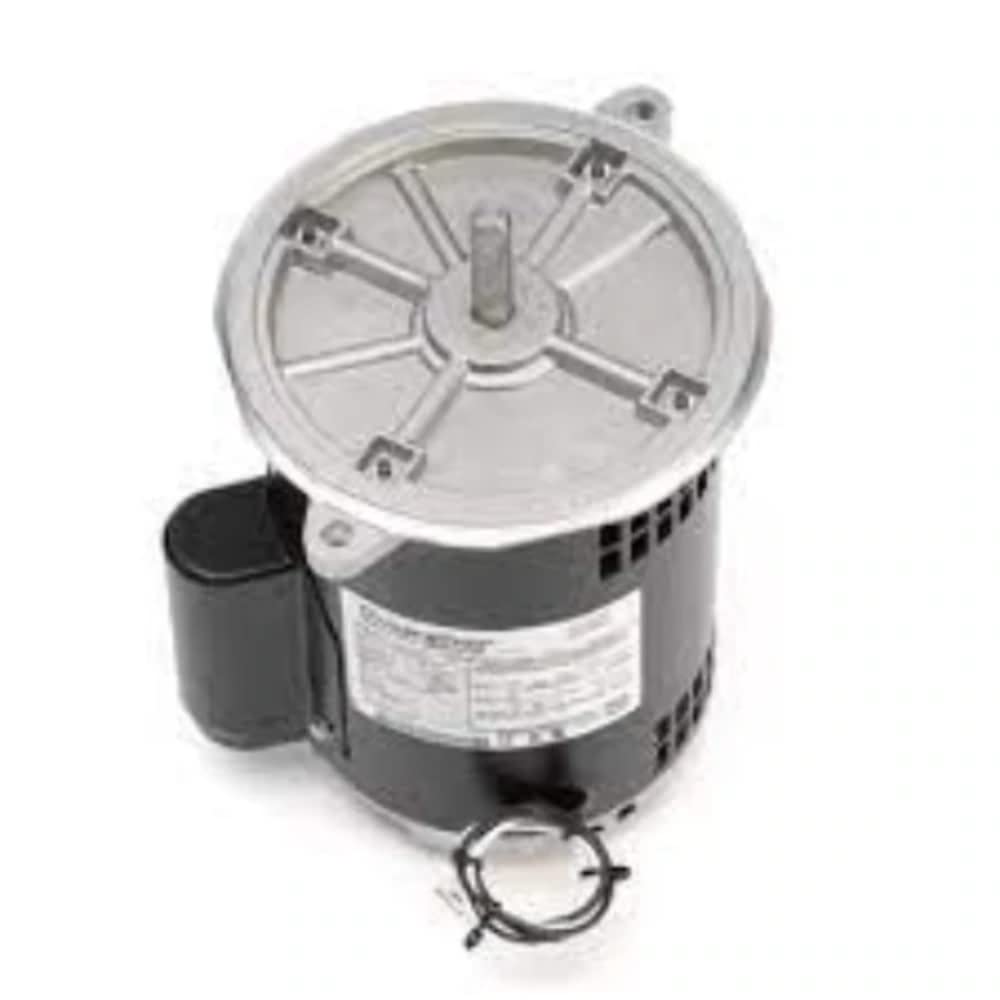

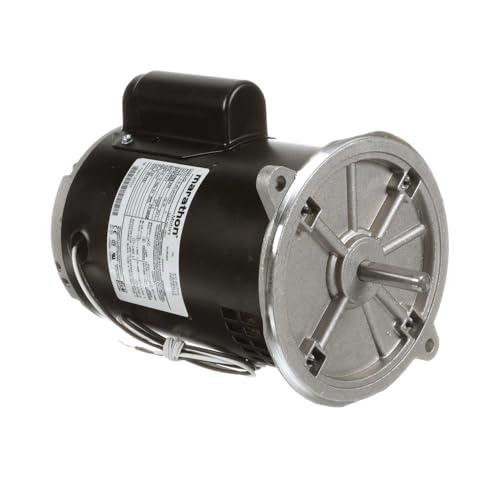

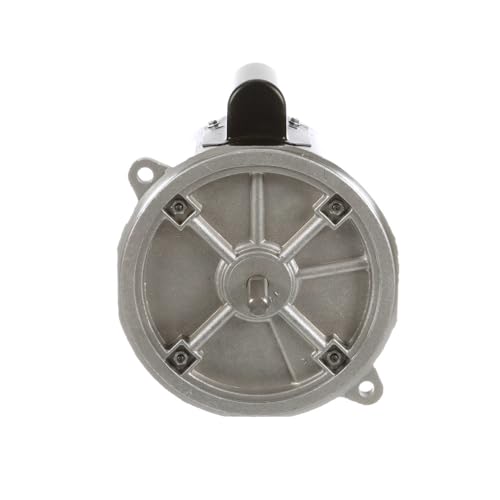

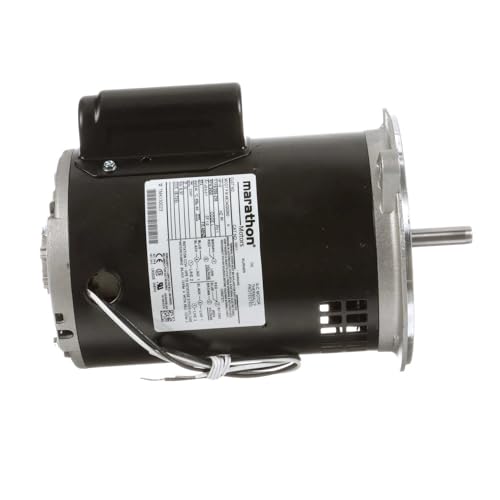

Marathon MO011 Oil Burner Motor Single Phase Capacitor Start 1/2 hp 3450 RPM 115/208-230V 7.4/3.5-3.7 Amp

Product Description

The Marathon MO011 Oil Burner Motor, designed for various industrial and residential applications, operates on single-phase power with a capacitor start. This motor, identified by Marathon as model MO011, features a power rating of 1/2 hp and runs at a maximum speed of 3450 RPM.

• Single-phase, capacitor start
• Operates at 1/2 hp and 3450 RPM
• Flange mounting with open drip proof enclosure

Product Highlights

This motor is suitable for driving oil burners and other HVAC applications, offering reliable performance and durable construction. The 48N frame ensures compatibility with various setups, and the manual overload protection contributes to safe operation.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MO011

Technical Specifications

• Horsepower: 0.5 hp
• Speed: 3450 RPM
• Voltage: 115/208-230V
• Amperage: 7.4/3.5-3.7 Amp
• Frame: 48N
• Enclosure: Open Drip Proof
• Mounting: Flange
• Material: Rolled Steel
• Rotation: REV
• Weight: 17 pounds
• Dimensions: 12.7 x 11.9 x 11 inches
