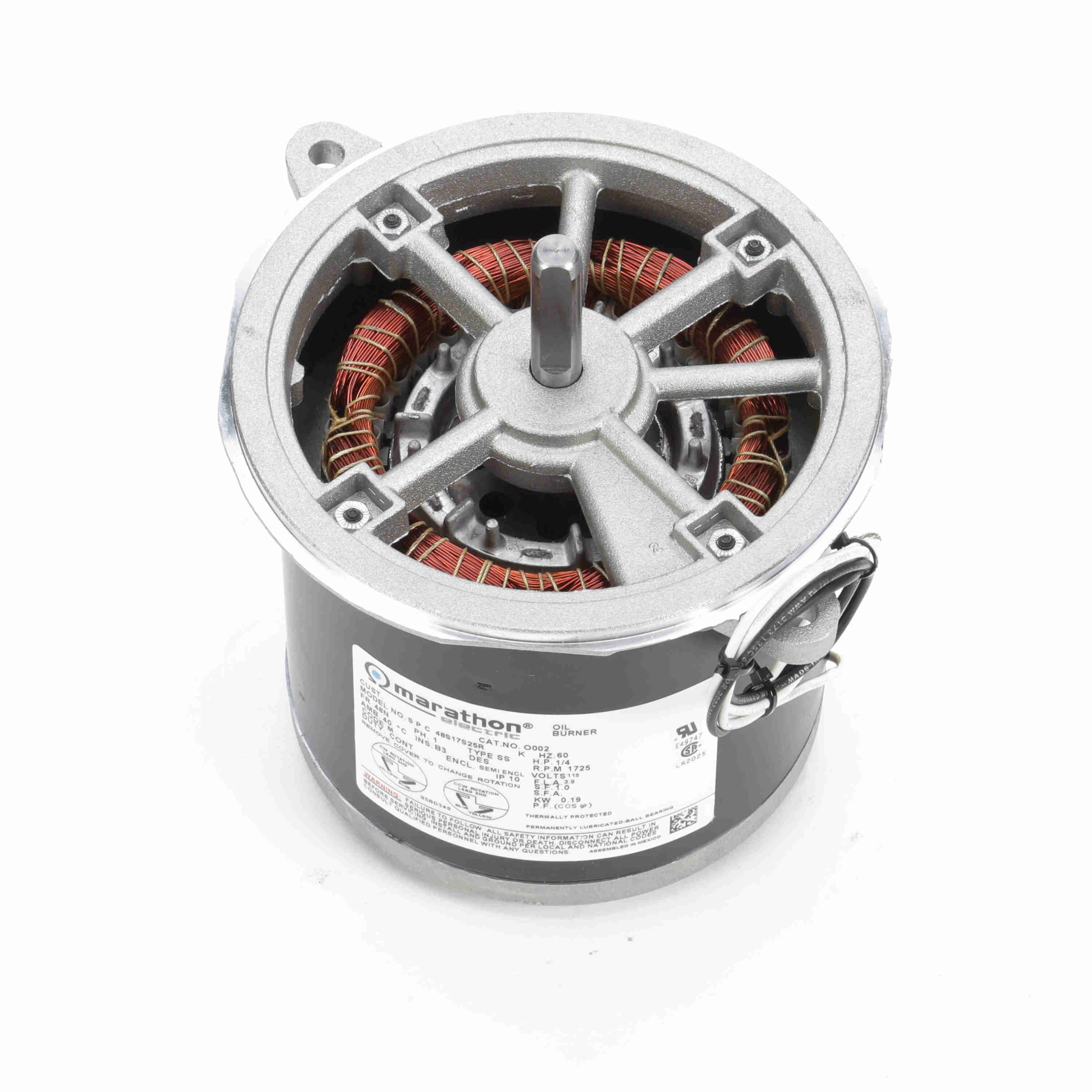

Marathon MO002 Oil Burner Motor 1/4 HP 1725 RPM 115 VAC Single Split Phase Sleeve Bearing Flange Mount

Product Description

The Marathon MO002 Oil Burner Motor is crafted by Marathon Electric. This motor operates with a 1/4 horsepower and reaches speeds up to 1725 RPM. It is designed for 115 volts AC, utilizing a single split phase with one-speed operation. The motor also features a 48N frame with open drip-proof (ODP) enclosure, providing reliable operation with sleeve bearings and flange mount.

• 1/4 HP with speeds up to 1725 RPM
• 115 VAC single split phase
• 48N frame with ODP enclosure and sleeve bearings

Product Highlights

This Marathon oil burner motor is easy to mount with its flange mount design. It runs efficiently at 115 VAC and 3.9 amps. The motor is designed for applications requiring 1/4 horsepower and 1725 RPM, making it suitable for various HVAC tasks and other professional uses.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MO002
• Model: 48S17S25

Technical Specifications

• Horsepower: 1/4 HP
• Speed: 1725 RPM
• Voltage: 115 VAC
• Phase: Single Split Phase
• Frame: 48N
• Enclosure: Open Drip Proof (ODP)
• Bearings: Sleeve
• Mounting: Flange
• Amperage: 3.9 Amps
• Overall Dimensions: 12.91 x 9.56 x 8.22 inches
• Weight: 12 Pounds
