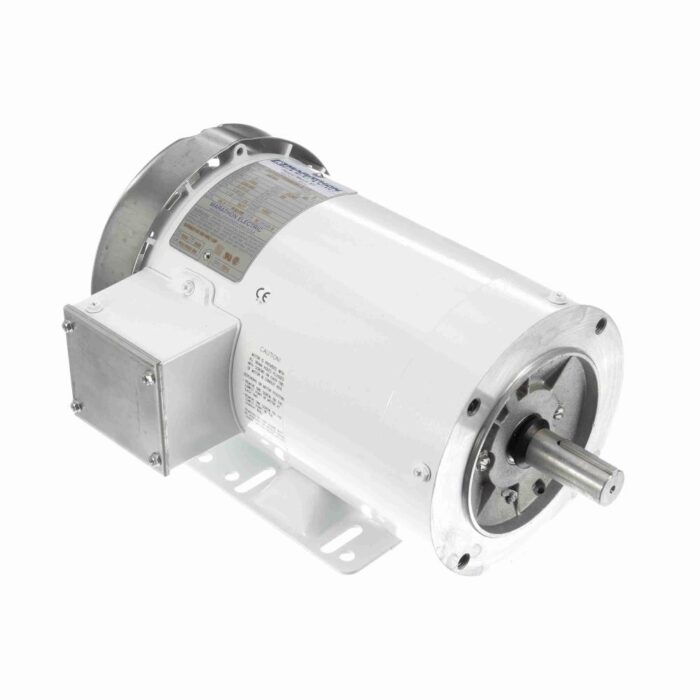

Marathon Motors MN626A Washdown Motor 1 HP C-face

Product Description

The Marathon Motors MN626A is an electrical motor designed for use in environments that need fresh water washdown. This motor has a Totally Enclosed Fan-Cooled (TEFC) enclosure. The stainless steel keyed shaft offers durability and a strong build. Its rigid base provides stability during operation.

• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Shaft: Stainless steel keyed shaft, seven-eighths inches diameter by two and one-eighth inches
• Mounting: C-face with shaft keyway

Product Highlights

This motor is effective for applications requiring reversible rotation.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MN626A

Technical Specifications

• Phase: 3
• Input Voltage: 208-230/460 V
• Horsepower: 1 HP
• Frame Size: 143C
• Speed: 1760 RPM
• Rotation: Reversible
• Service Factor: 1.15
• Shaft Type: Stainless steel keyed shaft
• Shaft Dimensions: Seven-eighths inches diameter by two and one-eighth inches
• Mounting Type: C-face with shaft keyway
• Base Type: Rigid
• Bearing Type: Ball bearings
• Insulation Class: Class F
