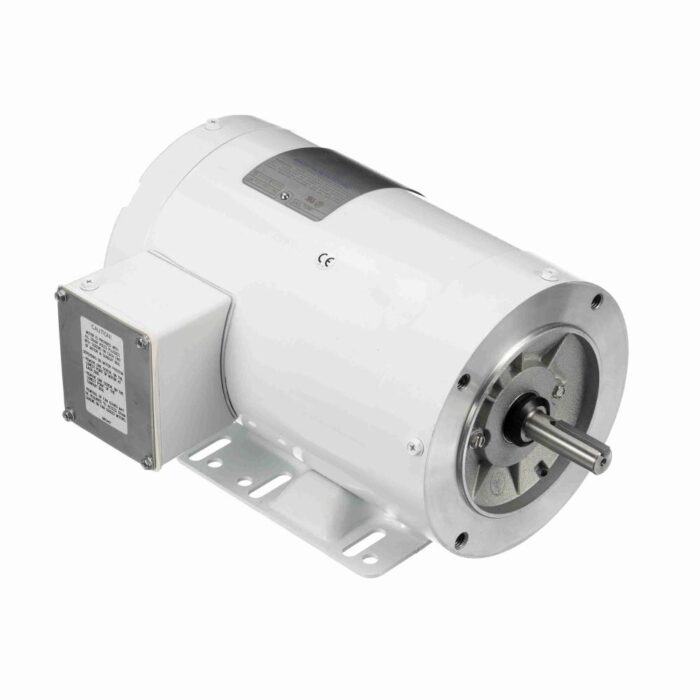

MARATHON MOTORS MN605 Washdown Motor

Product Description

The MARATHON MOTORS MN605 is an electric motor made for washdown applications. Built with rolled steel, it has a white epoxy finish which makes it suitable for wet environments. This motor includes a stainless steel keyed shaft and is designed to endure harsh conditions.

• Enclosure: Totally Enclosed Non-Ventilated (TENV)
• Shaft: Stainless Steel Keyed, five-eighths inch in diameter and one and seven-eighths inch in length
• Mounting: Rigid base with four threaded bolt holes for face mounting

Product Highlights

The MN605 provides reliable operation in wet conditions, making it ideal for food processing plants, breweries, and any site requiring frequent washdowns.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MN605

Technical Specifications

• Phase: 3
• Input Voltage: 230/460V
• Frame Size: 56HC
• Enclosure Type: TENV (Totally Enclosed Non-Ventilated)
• Housing Material: Rolled Steel
• Horsepower: 1.5 hp
• Rotation: Reversible
• RPM: 3450
• Number of Speeds: 1
• Service Factor: 1.15
• Overload Protection: None
• Mounting Type: Rigid Base, Face Mounting
• Bearings: Ball Bearings
• Insulation Class: F
• Shaft Type: Stainless Steel Keyed
• Shaft Diameter: five-eighths inch
• Shaft Length: one and seven-eighths inch
• Mounting Hole Distance: five and seven-eighths inch center to center
