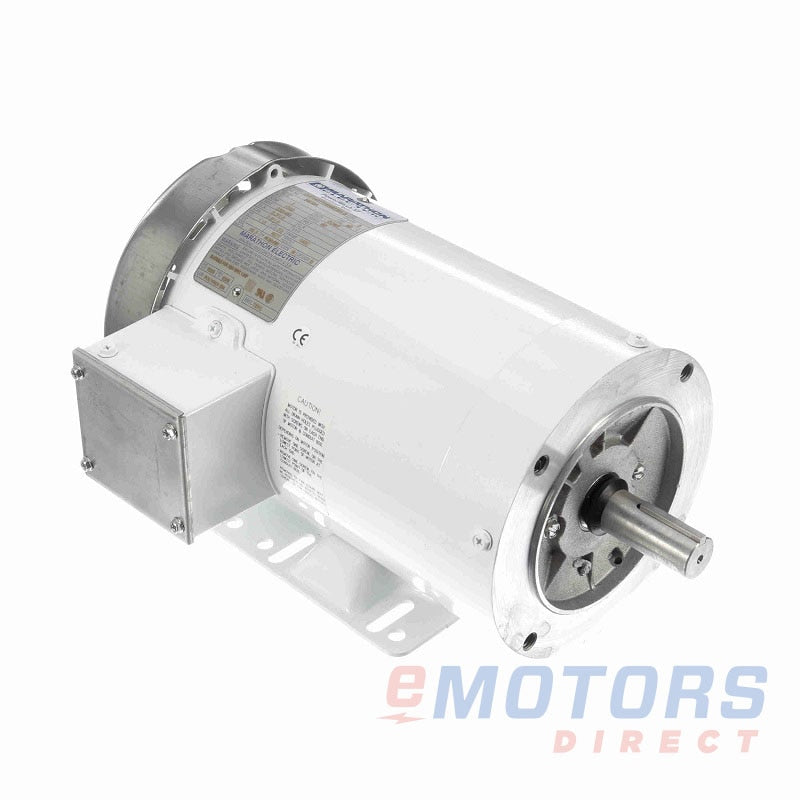

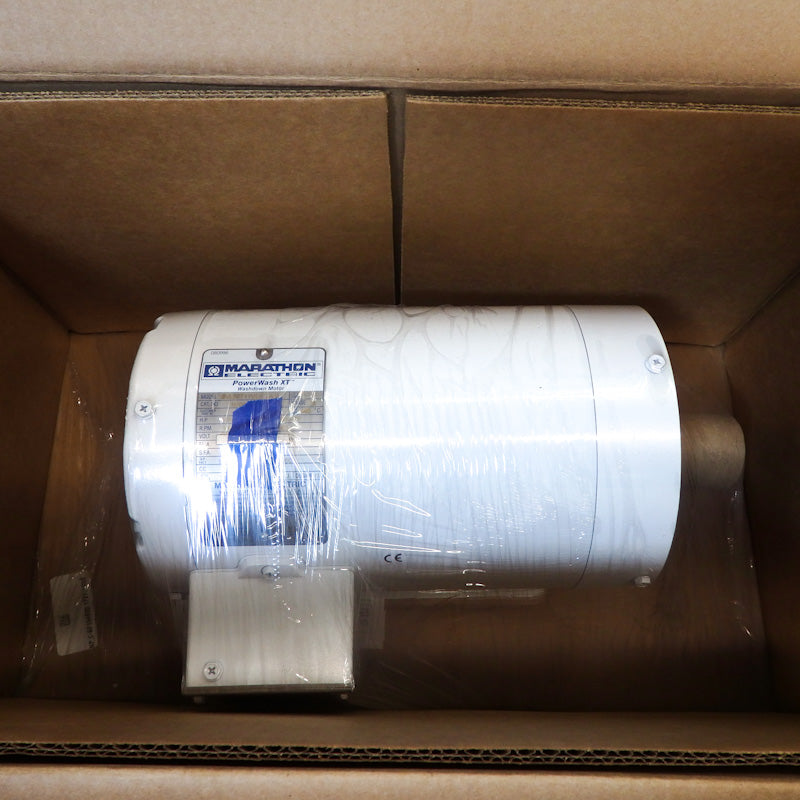

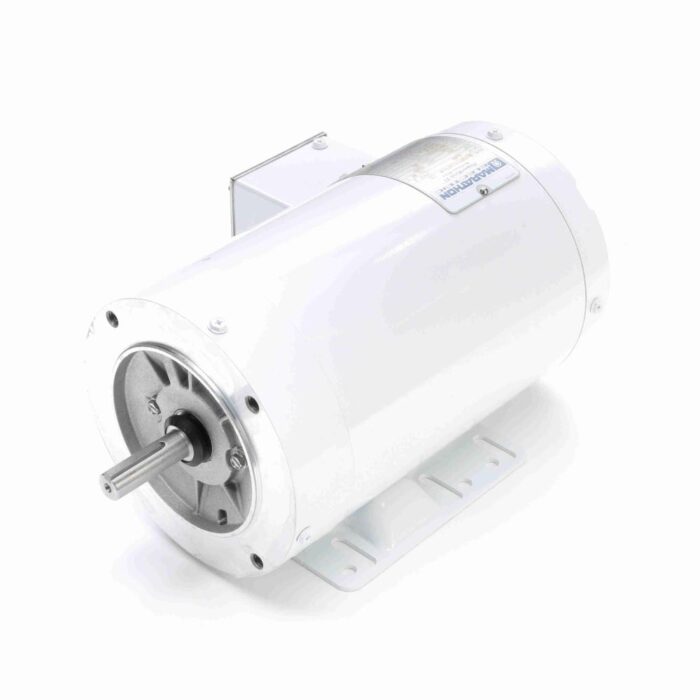

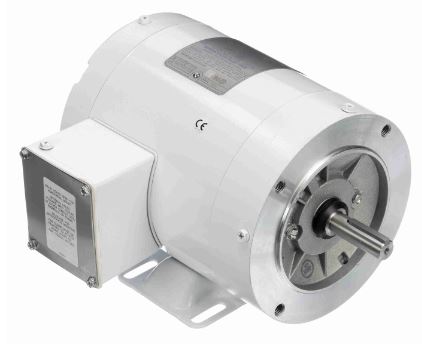

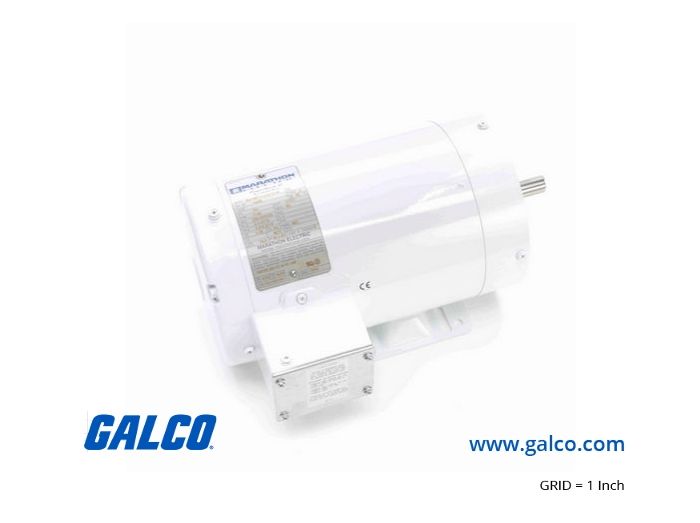

MARATHON MOTORS MN600 Washdown Motor

Product Description

The MARATHON MOTORS MN600 is a three-phase electric motor built for washdown applications. This motor resists exposure to high-pressure and high-temperature water. It features a stainless steel keyed shaft and a rolled steel body design, which enhance its durability in demanding environments.

• Designed for washdown applications.
• Includes a Totally Enclosed Non-Ventilated (TENV) enclosure.
• Compatible with C-face mounting.

Product Highlights

This motor operates continuously and offers reversible rotation to adapt to various operational needs.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MN600

Technical Specifications

• Horsepower: 3/4 hp
• Output Power: 0.55 kW
• RPM: 1140 RPM
• Voltage: 208-230/460 VAC
• Current Rating: 3.0/1.5 A
• Frequency: 60 Hz
• Phase: 3 Phase
• Frame Size: NEMA 56C
• Enclosure Type: TENV
• IP Rating: IP55
• Mounting Type: C-Face / Rigid
• Duty Cycle: Continuous
• Insulation Class: Class F
• Service Factor: 1.15
• Rotation: Reversible
• Body Material: Rolled Steel
• Shaft Diameter: 0.625
• Shaft Length: 1.875
• Efficiency: 78.5
• Ambient Temperature: 40°C
• Bearing DE: 6203
• Bearing NDE: 6203
• Poles: 6
• NEMA Design: B
• Thermal Protection: None
• Standards: UL Recognized
• Approximate Weight: 25 lb
