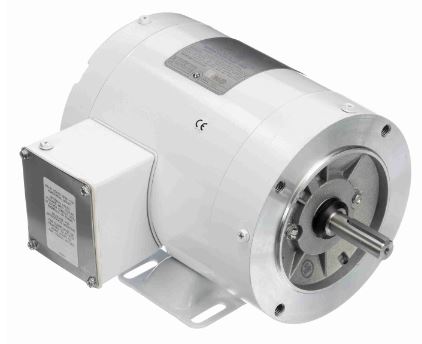

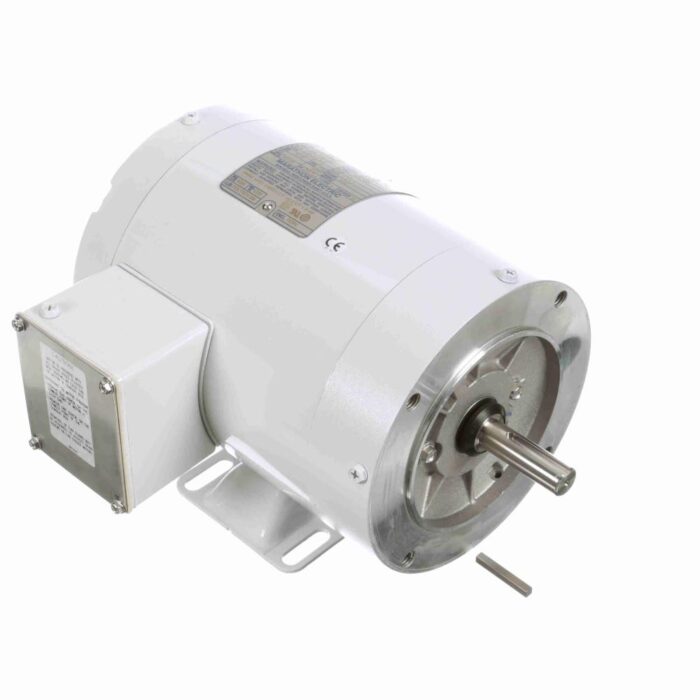

Marathon Motors MN569 Washdown Motor 3/4 HP NEMA 56C

Product Description

The Marathon Motors MN569 is a three-phase electric motor made for washdown applications. This motor withstands exposure to fresh water. It features a rigid base and offers reversible rotation.

• Designed for washdown use.
• Includes a stainless steel keyed shaft.
• Reversible rotation capability.

Product Highlights

This motor provides reliable performance in wet environments.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MN569

Technical Specifications

• Phase Type: 3-phase
• Input Voltage: 208-230/460V
• Horsepower: 3/4 HP
• RPM: 3600
• Frame Size: NEMA 56C
• Mounting Type: C-face
• Shaft Type: Stainless steel keyed
• Shaft Diameter: 5/8 inches
• Shaft Length: 1 7/8 inches
• Service Factor: 1.15
• Overload Protection: None
• Base Type: Rigid
• Rotation: Reversible
• Bearing Type: Ball bearings
• Insulation Class: Class F
