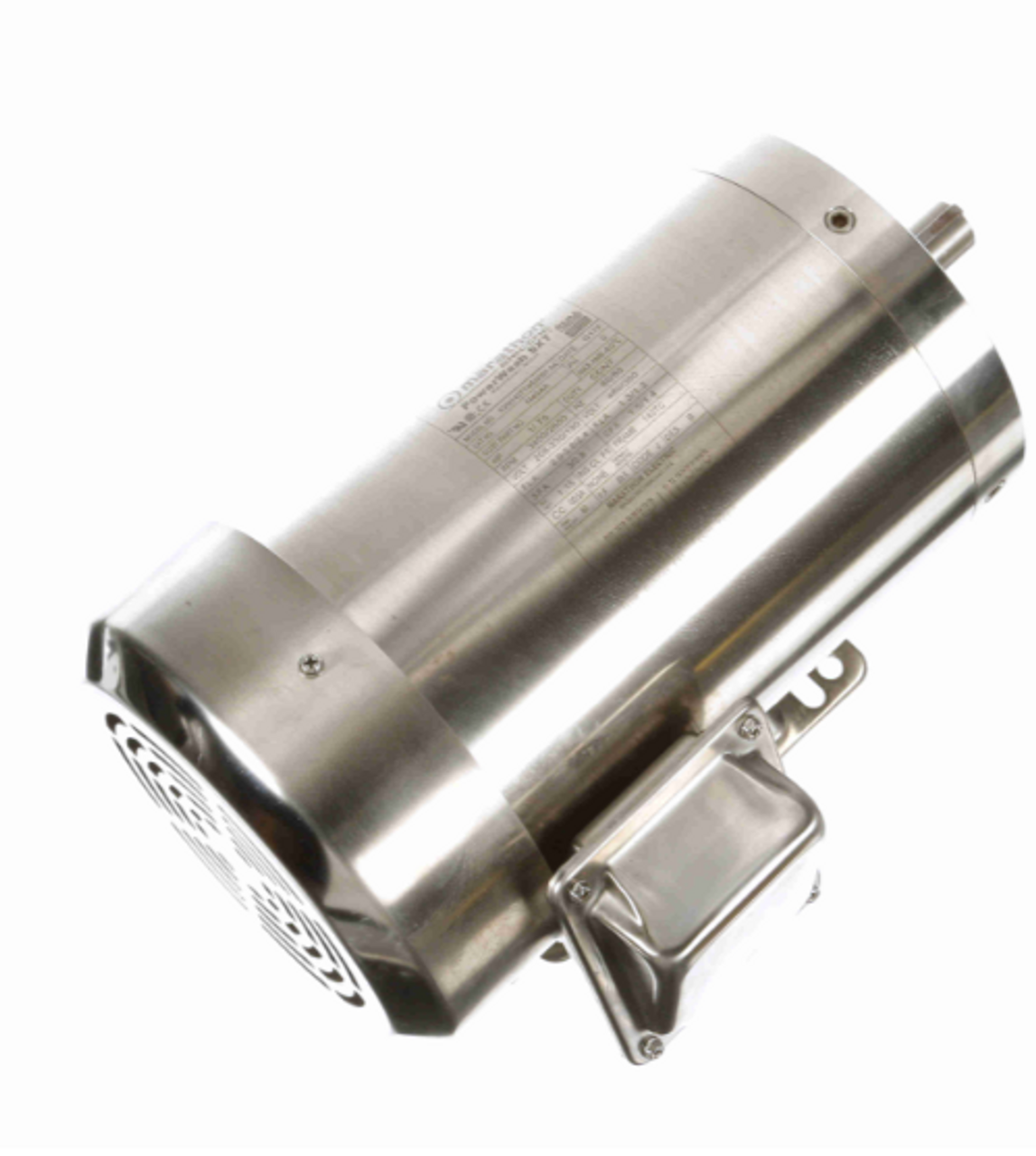

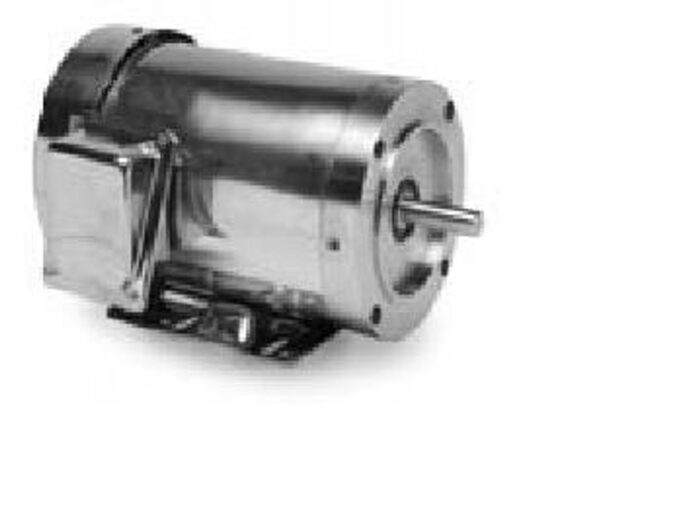

MARATHON MOTORS MN454A Washdown Duty Motor 1 HP 143TC

Product Description

The MARATHON MOTORS MN454A is a three-phase, 1 HP washdown duty motor. It is designed specifically for applications requiring high levels of sanitation. The motor features a 143TC frame size, double-sealed ball bearings, and Class F insulation for reliable operation.

• Constructed with 300 series stainless steel.
• Includes internal corrosion-resistant coatings.
• Provides VFD compatibility with a 10:1 variable torque ratio.

Product Highlights

This motor is UL Recognized, CSA Certified, and CE Marked, ensuring safety and quality in various environments.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MN454A

Technical Specifications

• Horsepower: 1 HP
• Speed: 3600 RPM
• Input Voltage: 208-230/460 Volts
• Frame Size: 143TC
• Output Current: 2.9-2.6/1.3 Amps
• Enclosure: TEFC (Totally Enclosed Fan-Cooled)
• Rotation: Reversible
• Material: Rolled Steel
• Bearings: Double-Sealed Ball Bearings
• Insulation Class: Class F
• Service Factor: 1.15 (Sinewave)
• VFD Compatibility: 10:1 Variable Torque Ratio
• Corrosion Resistance: Internal corrosion-resistant coatings
• Certifications: UL Recognized, CSA Certified, CE Marked
