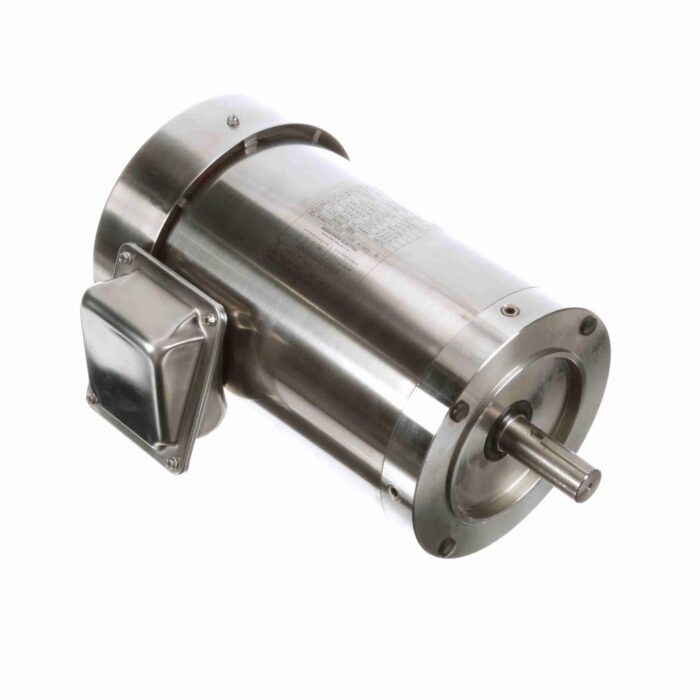

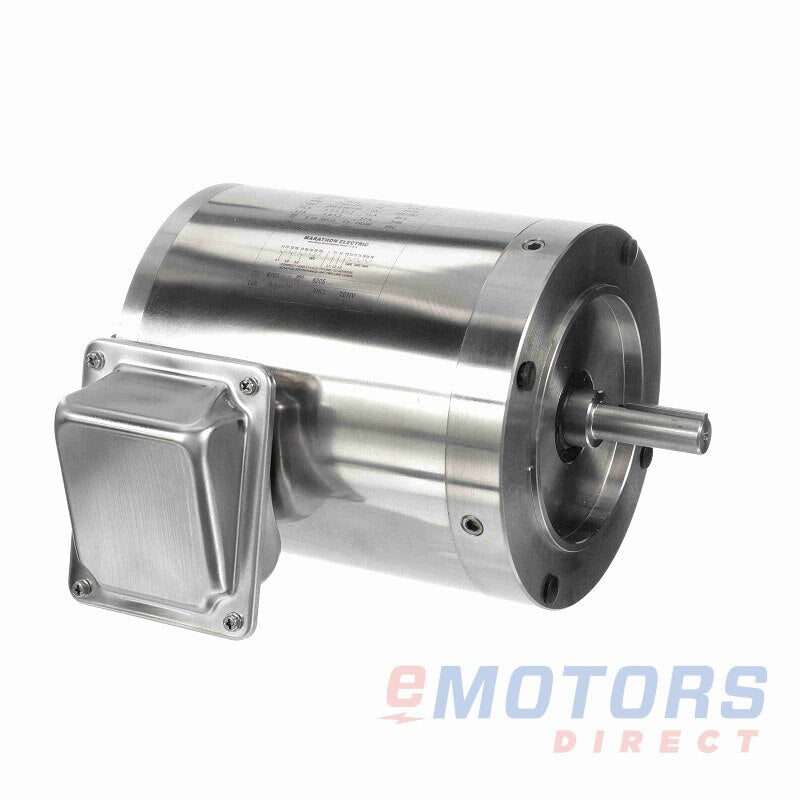

Marathon Motors MN436A Washdown Motor 1 1/2 hp TEFC

Product Description

The Marathon Motors MN436A is a washdown motor built for harsh and caustic environments. This reliable single-phase electric motor is ideal for C-face mount applications, providing durability and stability. It features a stainless steel keyed shaft that ensures effective power transmission. The motor is enclosed in a Totally Enclosed Fan-Cooled (TEFC) design, protecting it from dust and moisture.

• Designed for caustic environments
• Includes a stainless steel keyed shaft
• TEFC enclosure for enhanced protection

Product Highlights

The MN436A offers reversible rotation, making it versatile for various applications. Its robust ball bearings contribute to long-lasting performance in demanding settings.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MN436A

Technical Specifications

• Horsepower: 1 1/2 hp
• RPM: 1800
• Voltage Rating: 208-230/460 volts
• Frame Size: 145TC
• Enclosure: TEFC (Totally Enclosed Fan-Cooled)
• Rotation: Reversible
• Shaft: Stainless steel keyed shaft, 7/8 inches diameter x 2 1/4 inches
• Service Factor: 1.15
• Insulation Class: Class F
• Bearings: Ball bearings
