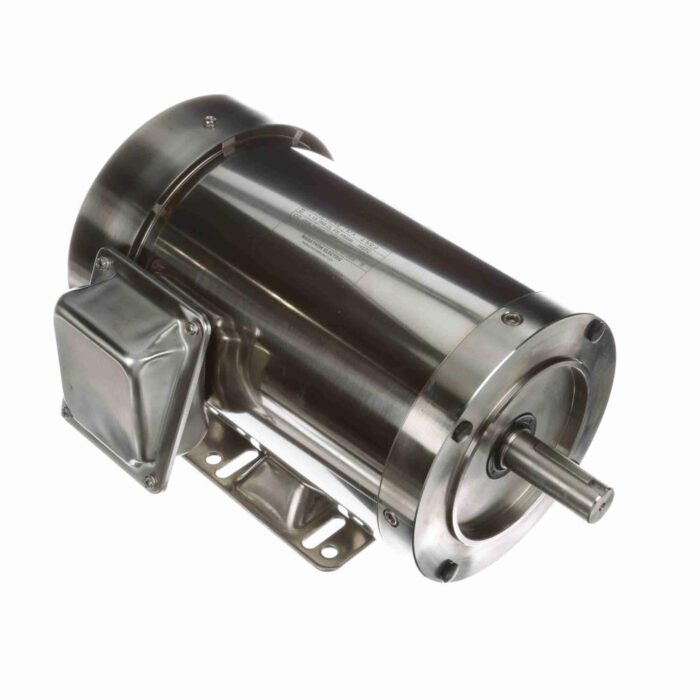

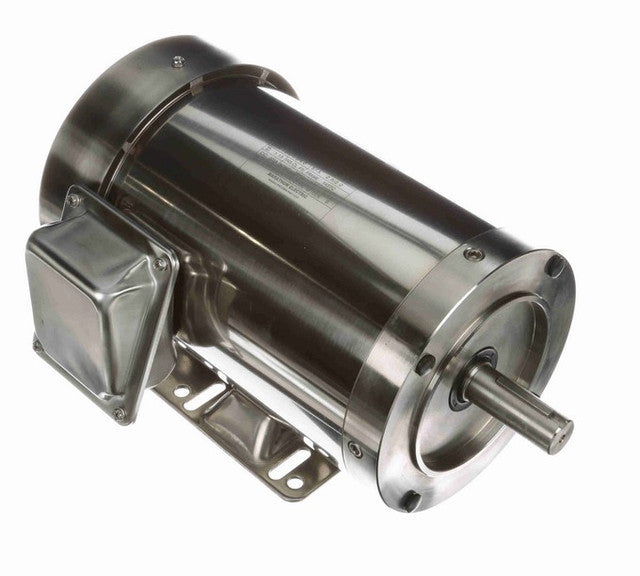

MARATHON MOTORS MN416A Stainless Steel Washdown Motor 1 1/2 hp

Product Description

The MARATHON MOTORS MN416A is a stainless steel washdown motor suitable for harsh environments. It is a single-phase electric motor ideal for C-face mount applications. The motor features a totally enclosed fan-cooled (TEFC) design and a rigid base for stability.

• Horsepower: 1 1/2 hp
• Reversible rotation
• Keyed shaft diameter: seven-eighths inches by two and one-fourth inches

Product Highlights

This motor is built with ball bearings and Class F insulation for durability and efficiency.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MN416A

Technical Specifications

• Horsepower: 1 1/2 hp
• RPM: 1800
• Voltage: 230/460 volts
• Frame Size: 145TC
• Enclosure: TEFC (Totally Enclosed Fan-Cooled)
• Service Factor: 1.15
• Overload Protection: None
• Keyed Shaft Diameter: seven-eighths inches by two and one-fourth inches
• Base Type: Rigid
• Rotation: Reversible
• Bearings: Ball bearings
• Insulation Class: Class F
• Threaded Bolt Holes: Four for face mounting pump gear head motors
• Bolt Hole Spacing: five and seven-eighths inches center to center
