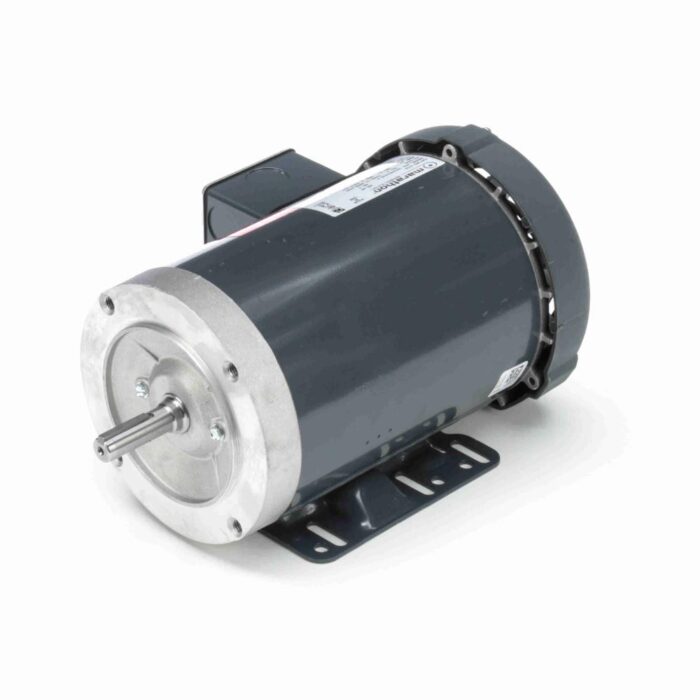

MARATHON MOTORS MK725 General Purpose Motor 3 HP 575 Volts

Product Description

The MARATHON MOTORS MK725 is a three horsepower motor suitable for a variety of general purpose applications. Operating at five hundred seventy-five volts, this motor provides reliable performance with a speed of three thousand six hundred RPM. It features a totally enclosed design ideal for harsh environments and includes a sturdy 56HC frame. The MK725 also integrates ball bearings for smooth operation and comes with a combination base that fits several mounting types.

• 3 HP, 575 Volts, 3-Phase motor.
• Totally enclosed with ball bearings.
• Compatible with gear reducers and pumps.

Product Highlights

Suitable for machine tools and industrial applications, this motor is designed to handle damp, dusty, and dirty conditions.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MK725

Technical Specifications

• Horsepower: 3 HP
• RPM: 3600
• Voltage: 575V
• Frame: 56HC
• Amperage: 3.1 Amps
• Enclosure: Totally-Enclosed
• Bearings: Ball bearings
• Base: 56H, 143T, and 145T Combination Base
• Mounting Holes: 12
• Mounting Type: F1
• Service Factor: 1.15
• Electrical Type: Phase
• Material: Rolled Steel
• Rotation: Reversible
• Number of Speeds: 1
