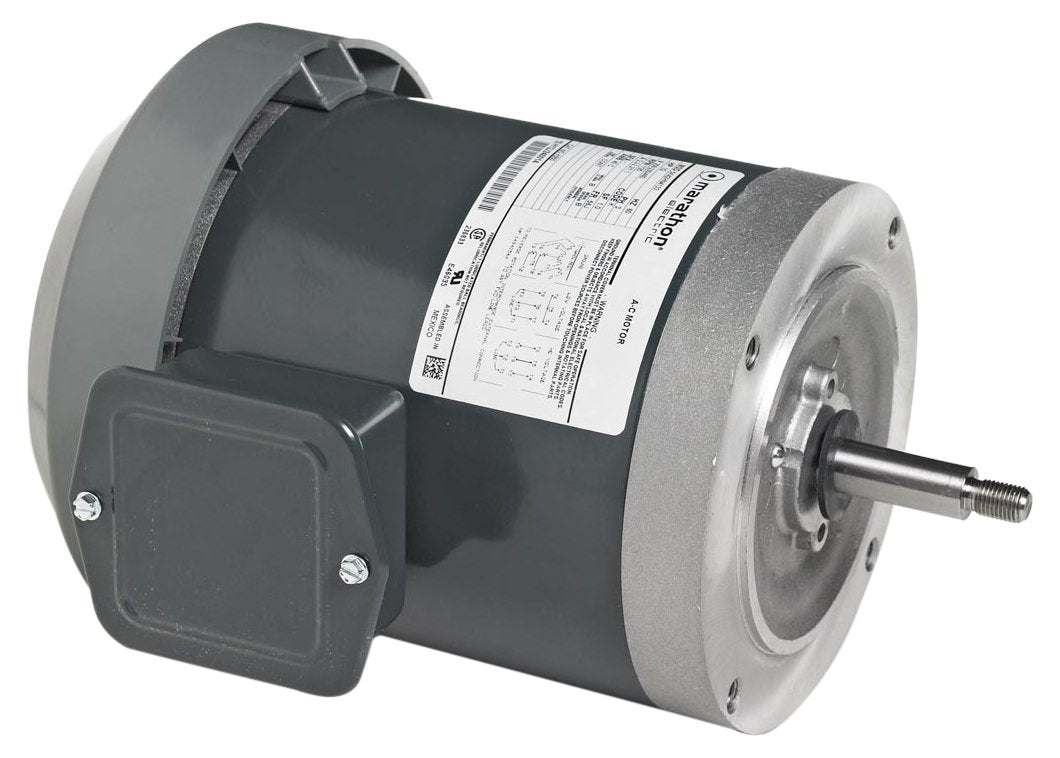

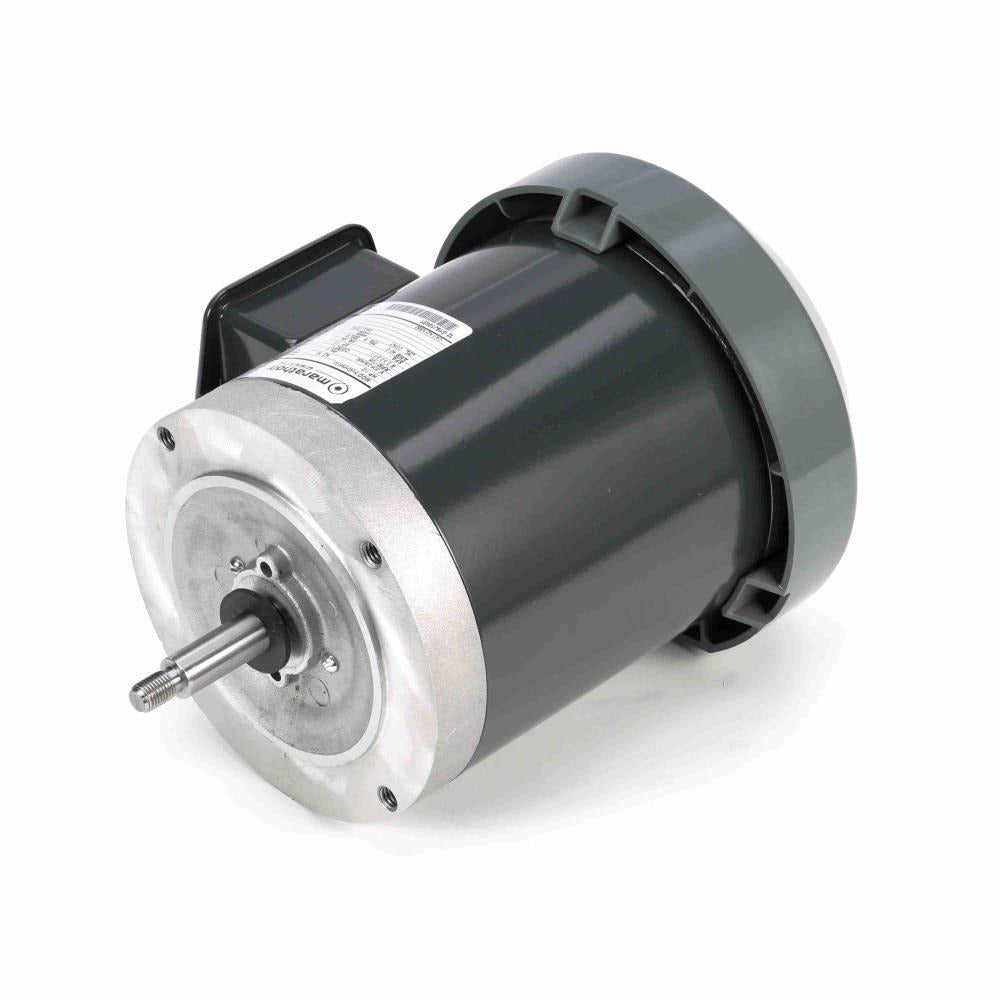

Marathon MK550 Jet Pump Motor 3 Phase Totally Enclosed C-Face 1/2 HP 1800 RPM 208-230/460 VAC 56J Frame

Product Description

The Marathon MK550 Jet Pump Motor is built for efficiency and durability. This motor, with a totally enclosed fan-cooled (TEFC) enclosure, operates on three-phase power at 208-230/460 VAC. With a 56J frame and ball bearing construction, this motor ensures long-lasting performance.

• Three-phase power
• Totally enclosed fan-cooled design
• 208-230/460 VAC

Product Highlights

The Marathon MK550 is ideal for various applications requiring a reliable jet pump motor. Key features include its totally enclosed fan-cooled design, offering protection against dust and moisture, and its robust 56J frame for optimal performance.

Product Information

Standard Information

• Brand: Marathon
• MPN: MK550

Technical Specifications

• Electrical Type: Three Phase
• HP: 1/2
• RPM: 1725
• Frame: 56J
• Diameter: 6.5 inches
• Enclosure: TEFC
• Phase: Three
• Voltage: 208-230/460 VAC
• Rotation: Reverse
• Material: Rolled Steel
• Amperage: 2.3-2.2, 1.1
• Shaft Type: Single
• Mounting Type: C-Face, Footless
