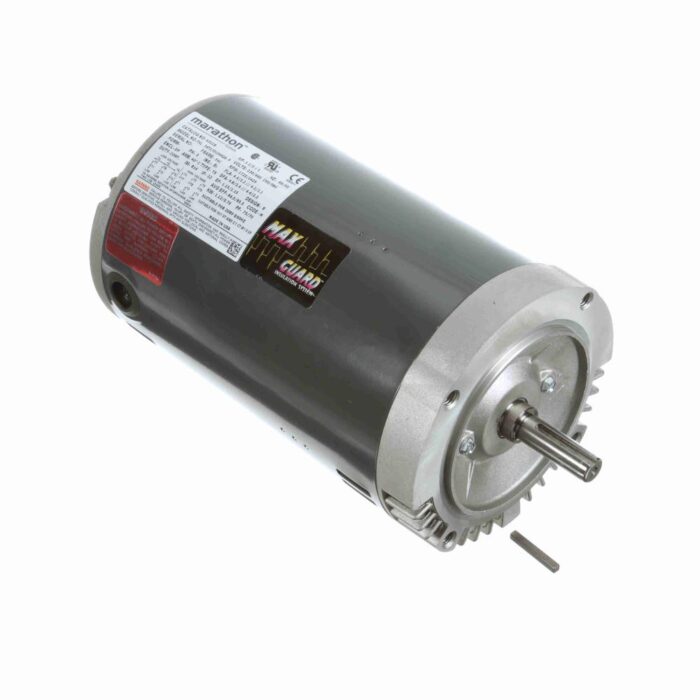

Marathon Motors MK521B General Purpose Motor 1.5 HP

Product Description

The Marathon Motors MK521B is a general-purpose motor for various industrial applications. This three-phase unit runs at 230/460 volts and draws 4.4/2.2 amps. It has a 56C frame with C-face mounting and a keyed shaft. The motor features an open drip proof enclosure suitable for continuous duty operations. It is reversible and does not come with a base.

• 1.5 HP motor operating at 1725 RPM.
• Designed for continuous duty applications.
• C-face mounting and keyed shaft for secure installation.

Product Highlights

This motor is ideal for applications needing reliable performance in industrial settings.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MK521B

Technical Specifications

• Horsepower: 1.5
• Speed: 1725 RPM
• Frame Size: 56C
• Phase: 3
• Input Voltage: 230/460 V
• Input Current: 4.4/2.2 A
• Service Factor: 1.15
• Enclosure Type: Open Drip Proof
• Base: No
• Mounting Face: C-FACE
• Shaft Type: .625 X 1.88 KEYED
• Overall Length: 13.81 inches
• Weight: 40 lbs
