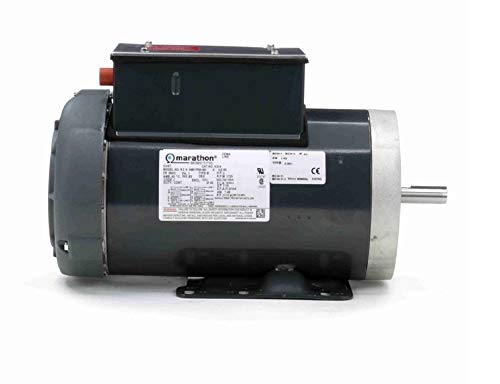

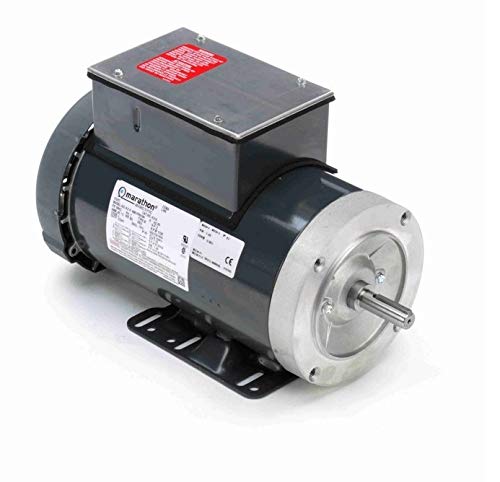

Marathon MK319 56HC Frame Totally Enclosed Fan Cooled General Purpose Motor 2 hp 1800 RPM 115/230 VAC 1 Phase Ball Bearing C-Face Capacitor Start

Product Description

The Marathon MK319 is a 56HC Frame Totally Enclosed Fan Cooled General Purpose Motor designed for a wide range of applications. With a power output of 2 hp and an operating speed of 1800 RPM, this motor runs on a single-phase 115/230 VAC system. The ball bearing construction ensures smooth operation, and it features a C-Face with a capacitor start mechanism for reliable performance.

• Power: 2 hp
• Speed: 1800 RPM
• Voltage: 115/230 VAC

Product Highlights

This motor is ideal for a variety of industrial and commercial applications, providing dependable service with its robust design and versatile mounting options.

Product Information

Standard Information

• Brand: Marathon
• Model: MK319

Technical Specifications

• Electrical Type: Cap Start
• Horsepower: 2
• Speed: 1725 RPM
• Frame: 56HC
• Diameter: 6.5 inches
• Enclosure: TEFC
• Phase: Single
• Voltage: 115/230
• Rotation: REV
• Overload Protection: Manual
• Material: Rolled Steel
• Amperage: 18.8/9.4
• Shaft Type: Single
• Mounting: Rigid Base
