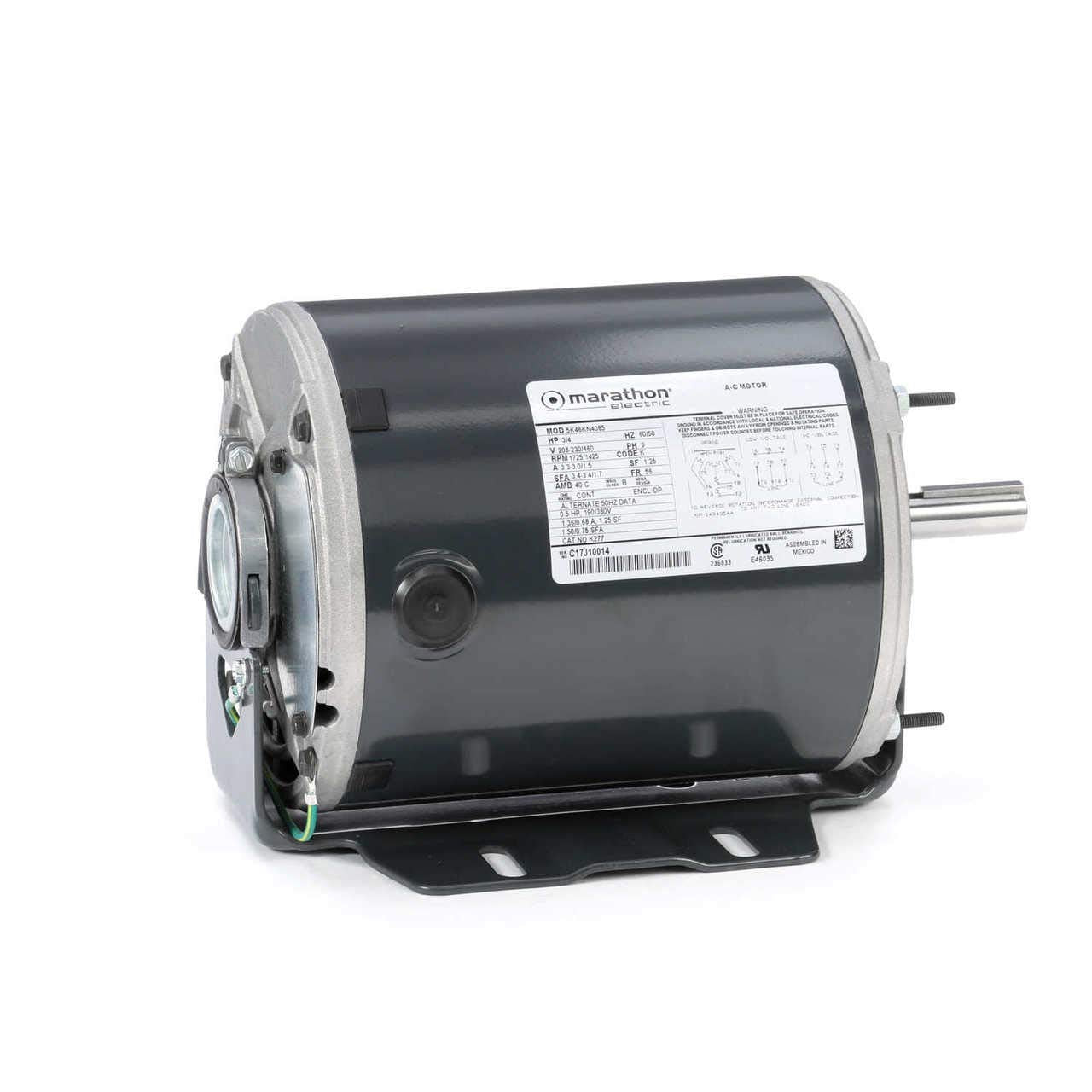

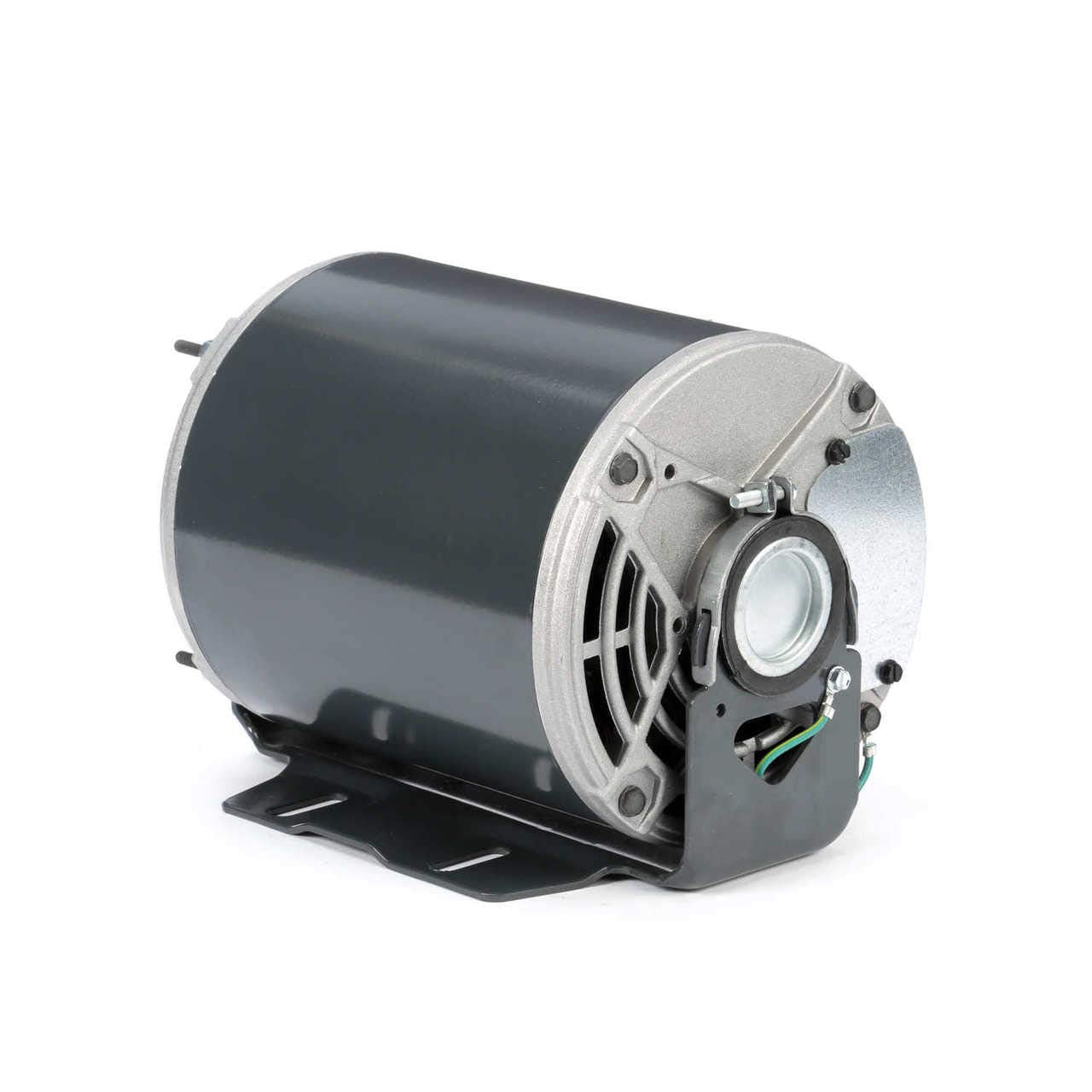

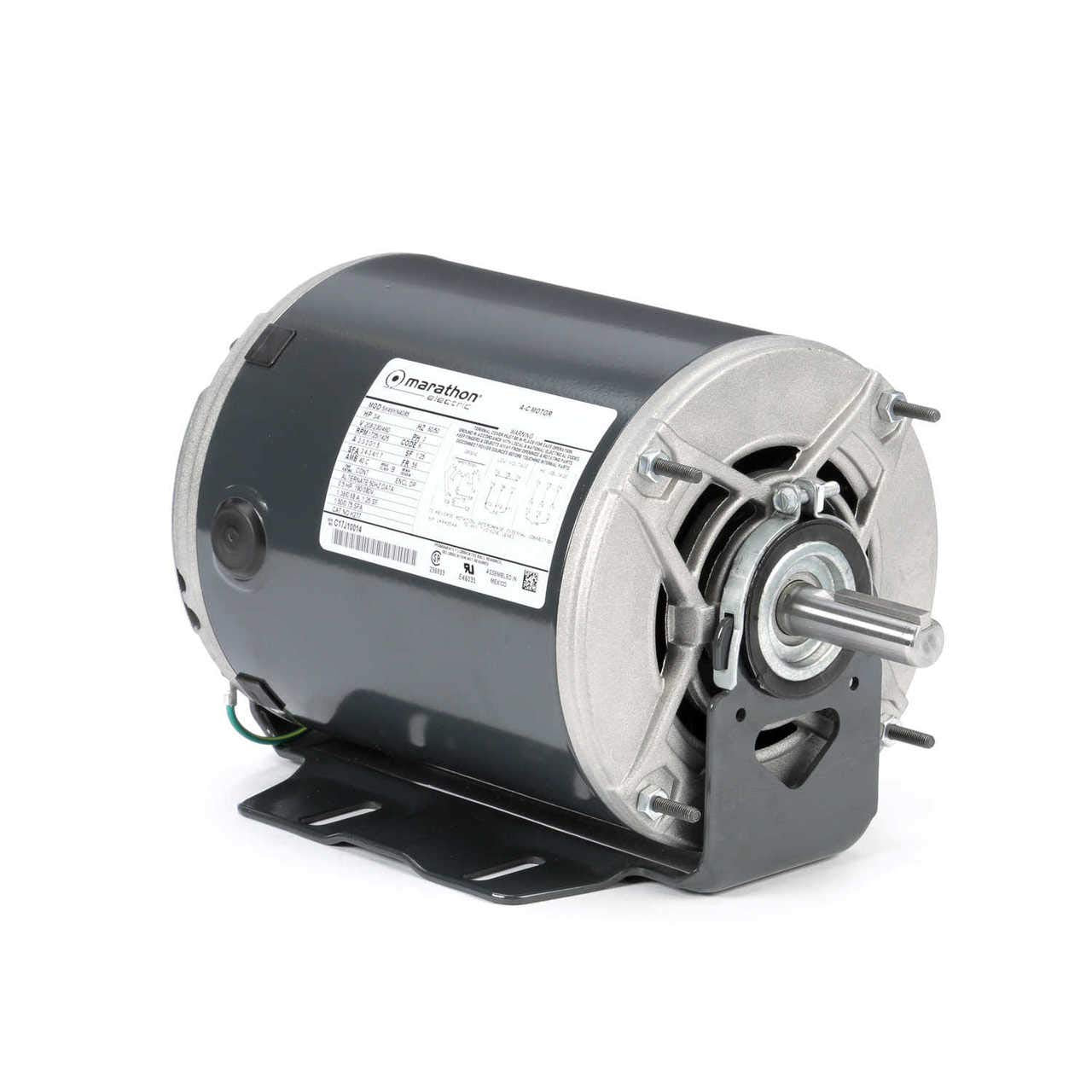

Marathon MK277 Fan and Blower Motor, 3 Phase, 3/4 hp, 1800 RPM, 208-230/460V

Product Description

The Marathon Electric MK277 is a reliable fan and blower motor designed for three-phase applications. This motor operates at three-quarters of a horsepower with a speed of one thousand eight hundred revolutions per minute. It can function on a voltage range of two hundred eight to four hundred sixty volts. The motor draws three point three to three point zero amps under normal operation.

• Three-phase design
• Powerful three-quarters horsepower rating
• Speed of one thousand eight hundred RPM

Product Highlights

The Marathon MK277 is a robust motor suitable for various commercial and industrial uses, including HVAC systems and blower applications. Its resilient design ensures stability and performance in demanding environments.

Product Information

Standard Information

• Brand: Marathon Electric
• Model Number: MK277

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 3/4 hp
• RPM: 1800
• Voltage: 208-230/460V
• Amperage: 3.3-3.0/1.5 amp
• Frame Size: 56
• Enclosure Type: Open Drip Proof
• Mounting Type: Resilient Base
