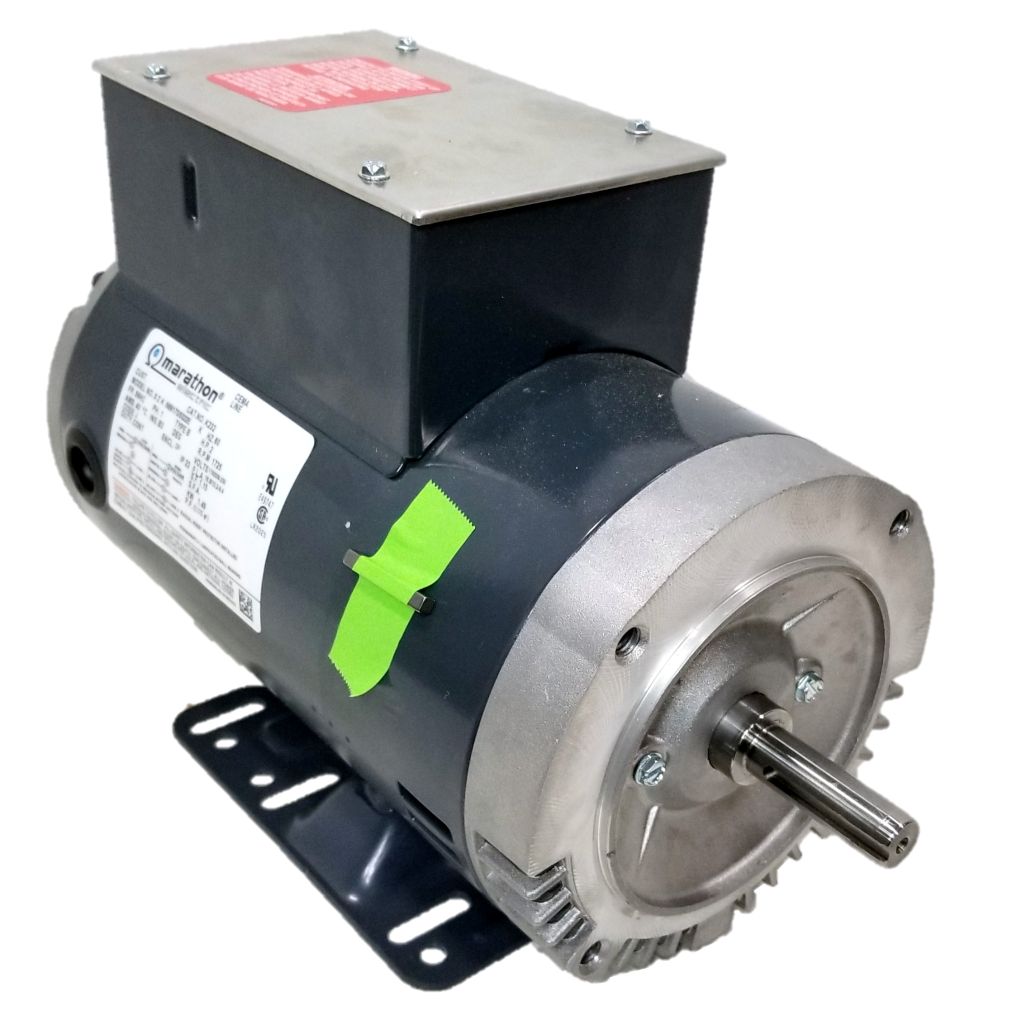

Marathon Motors MK232 K232 Pressure Washer Motor, 2 HP, 1 Ph, 60 Hz, 115/208-230 V, 1800 RPM, 56HC Frame, DP

Features:
Thermal protection prevents dangerous overheating that causes motor failure.
Heavy-duty, rolled steel construction ensures motor durability.
Double-shielded bearings extend the service life of the motor.
High service factor rating (as noted).

Specifications:
Output HP:2 Hp
Output KW:1.5 k
W
Frequency:60 Hz
Voltage:115/208-230 V
Current:18.8/10.2-9.4 A
Speed:1725 rpm
Service Factor:1.15
Phase:1
Efficiency:81.5 %
Power Factor:86.1
Duty:Continuous
Insulation Class:B
Design Code:NO DESIGN CODE
KVA Code:J
Frame:56HC
Enclosure:Drip Proof
Thermal Protection:Manual
Ambient Temperature:40 C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6205
UL:Recognized ( Not Protector)
CSA:Y
CE:N
IP Code:22
Number of Speeds:1
Electrical Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft T
Overall Length:13.43 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 ONLY
