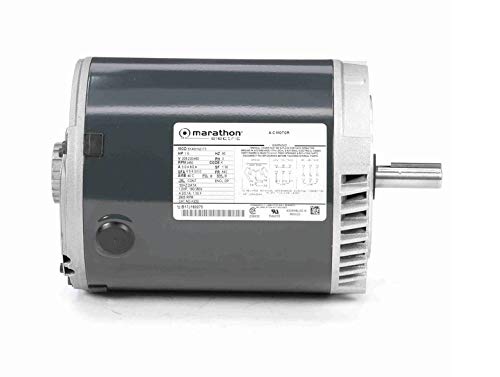

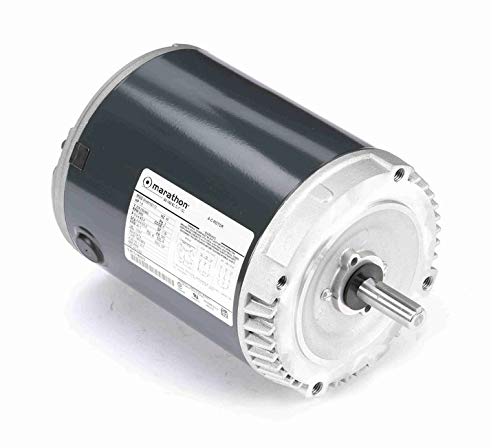

Marathon MK222 General Purpose Motor 1-1/2 HP 3600 RPM 56C Frame C-Face Footless

Product Description

The Marathon MK222 General Purpose Motor is designed for use on variable frequency drives (VFD). This 1-1/2 horsepower motor operates at 3600 RPM and supports voltages of 208-230/460, drawing 5.0-4.8/2.4 amps. It features a C-face footless design and an open drip-proof enclosure, making it suitable for various applications where motor protection is crucial.

• Three Phase
• C-Face Footless
• Open Drip Proof

Product Highlights

This Marathon motor is built for reliability and efficiency. Its ball-bearing construction ensures smooth operation, while the rolled steel material provides robust durability. The motor can be reconnected for reversible operation, and it's rated for 60/50 hertz frequencies.

Product Information

Standard Information

• Brand: Marathon
• MPN: MK222

Technical Specifications

• Horsepower: 1-1/2 HP
• RPM: 3600
• Voltage: 208-230/460V
• Amperage: 5.0-4.8/2.4 Amps
• Frame: 56C
• Enclosure: Open Drip Proof
• Material: Rolled Steel

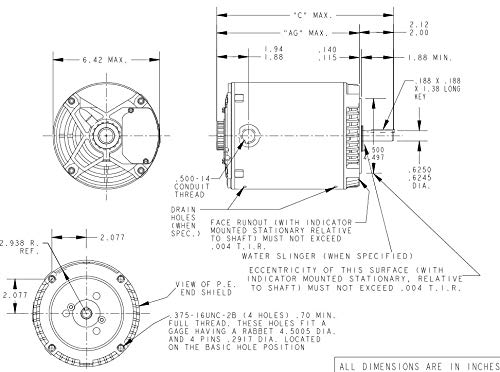

• Dimensions: 10.73 inches (C-Dimension)
