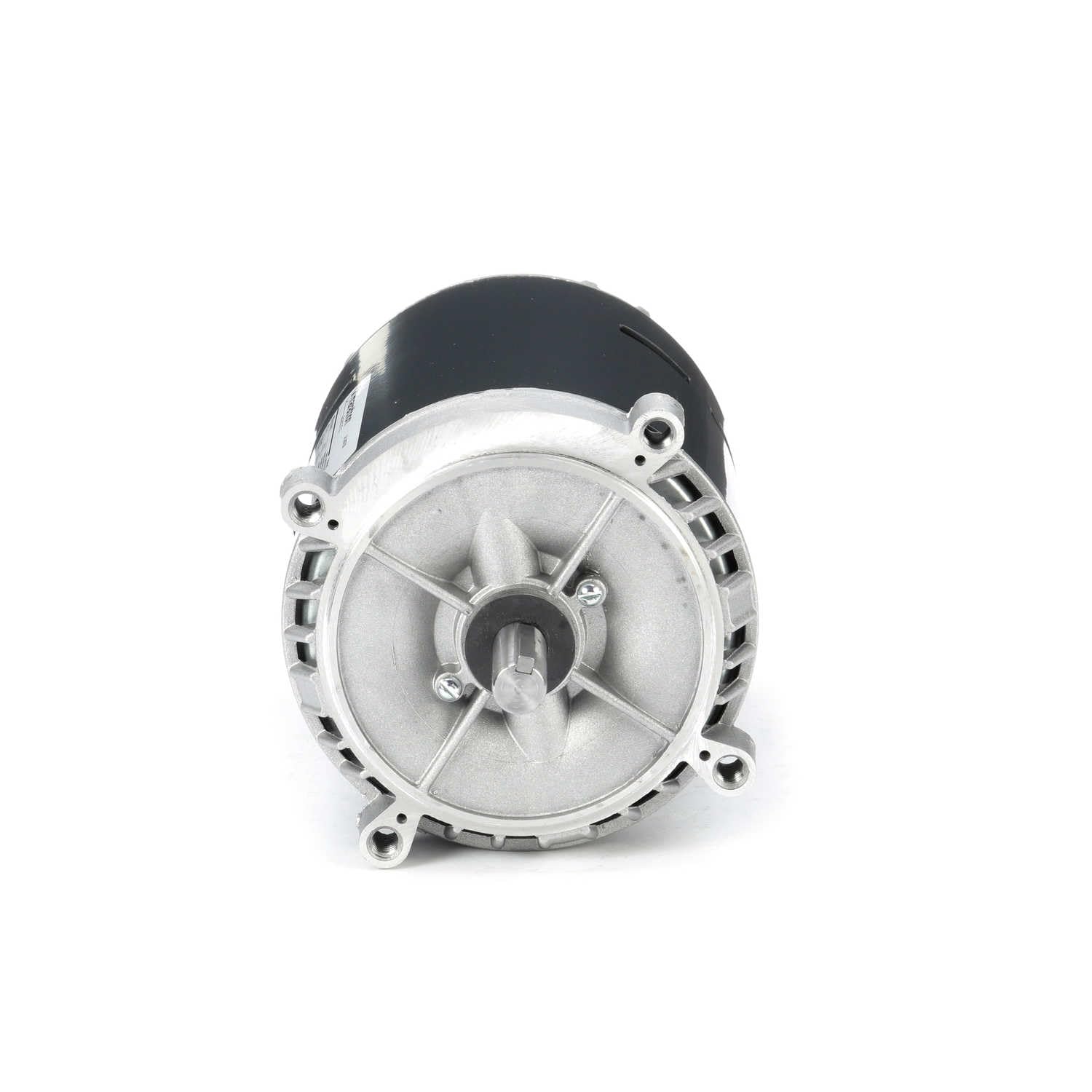

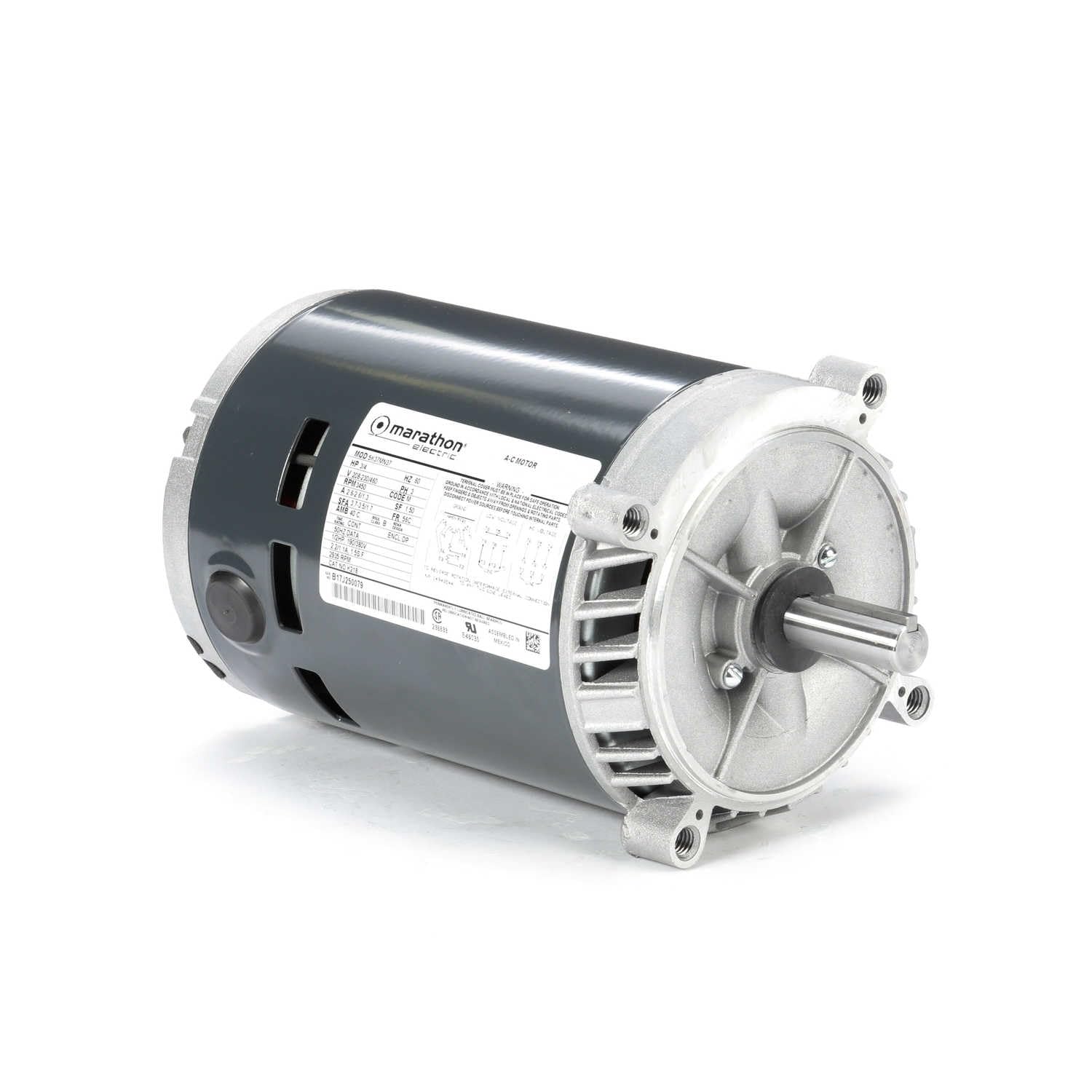

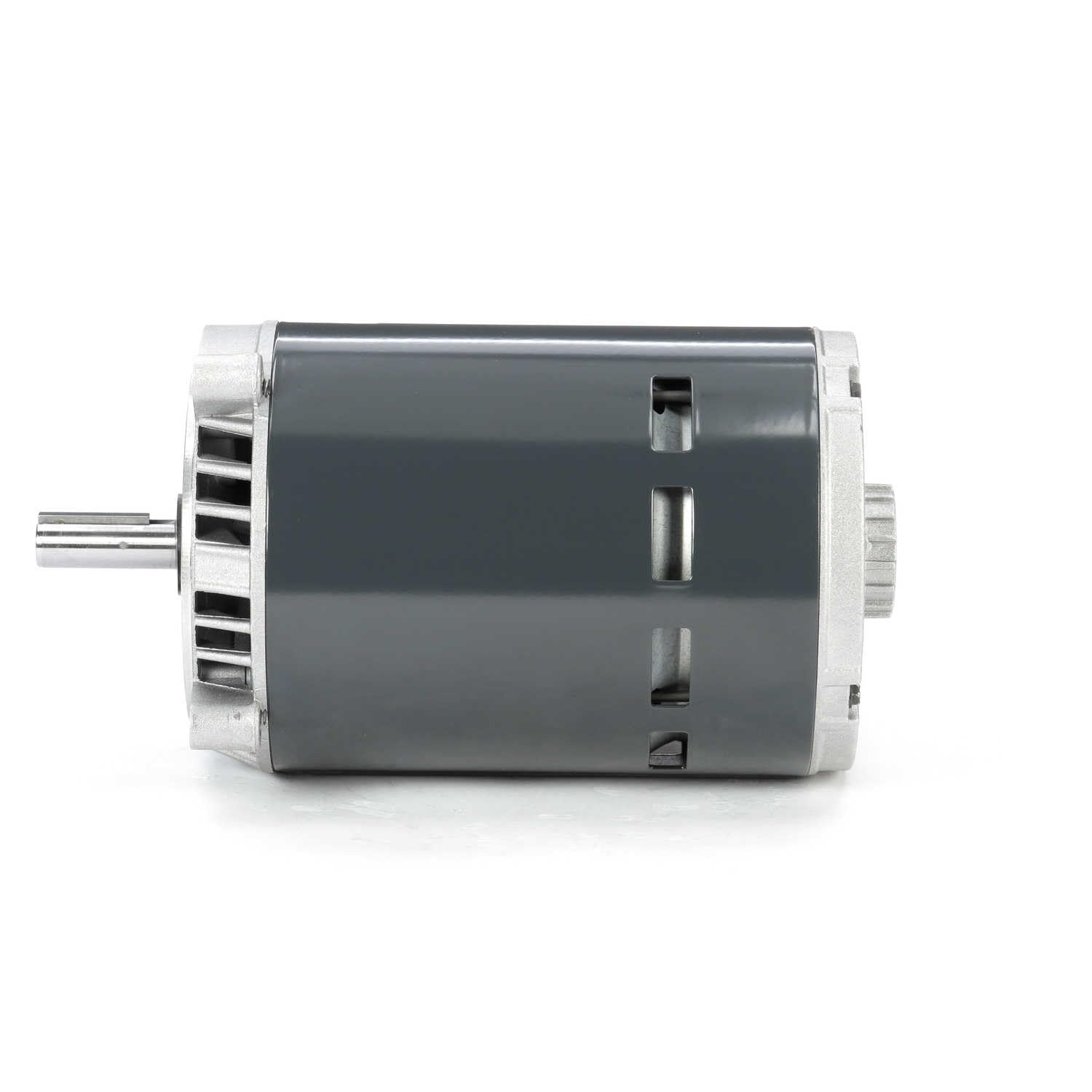

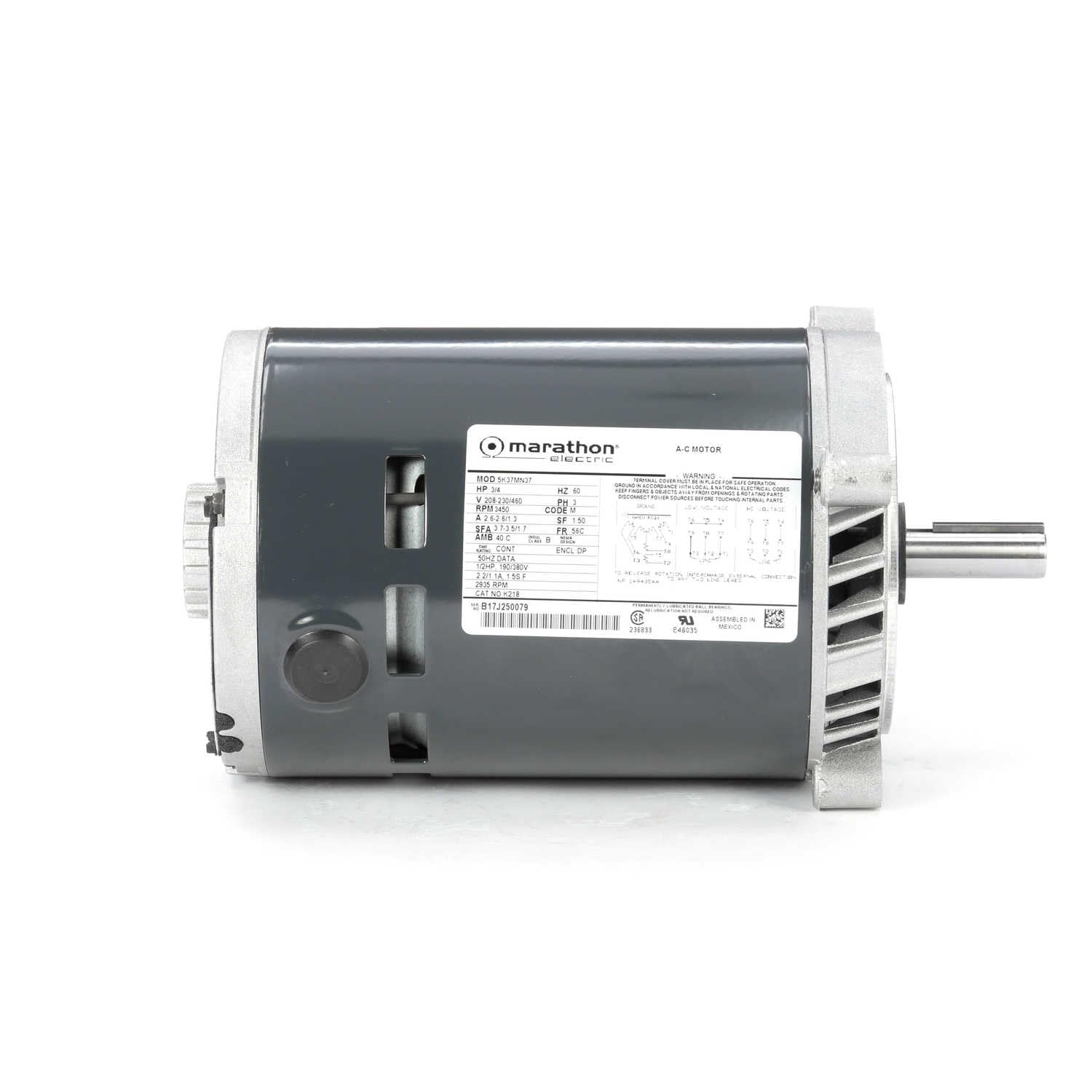

Marathon MK218 K218 56C Frame Open Drip Proof Motor 3/4 hp 3600 RPM 208-230/460 VAC

Product Description

The Marathon Electric MK218 is a three-phase, general-purpose motor designed for various applications. This motor operates at three-quarters of a horsepower and achieves a maximum speed of three thousand six hundred revolutions per minute. It is compatible with voltages of two hundred eight to two hundred thirty/ four hundred sixty VAC and features a ball bearing system for efficient performance. The open drip proof design makes it suitable for environments where moisture may be present.

• Three-phase motor with one-speed operation
• Runs at 3/4 hp with a maximum speed of 3600 RPM
• Durable rolled steel frame with an open drip proof enclosure

Product Highlights

This motor is a reliable choice for HVAC systems and various industrial applications requiring consistent performance and durability.

Product Information

Standard Information

• Manufacturer: Marathon Electric
• Model Number: MK218

Technical Specifications

• Horsepower: 0.75 hp
• Speed: 3600 RPM
• Voltage: 208-230/460 VAC
• Frame Size: 56C
• Weight: 18 lbs
• Enclosure Type: Open Drip Proof (ODP)
• Amperage: 2.6-2.6/1.3
• Material: Rolled Steel
