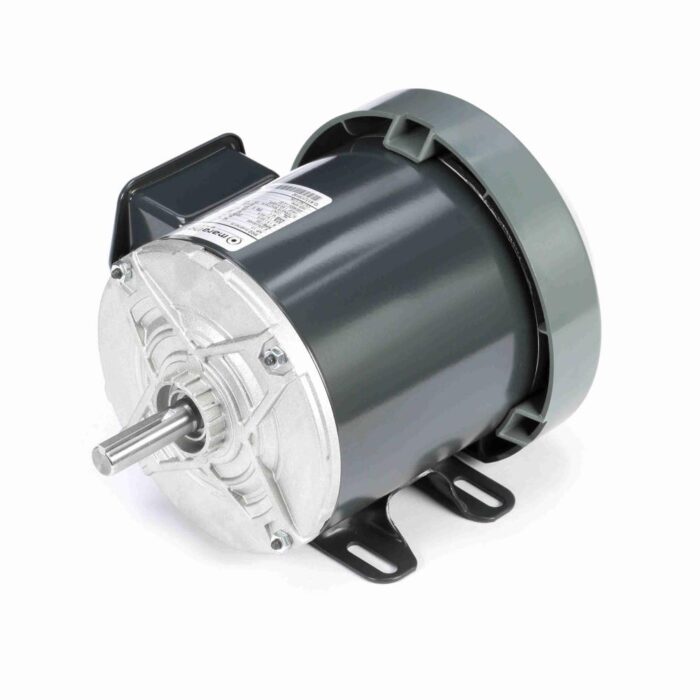

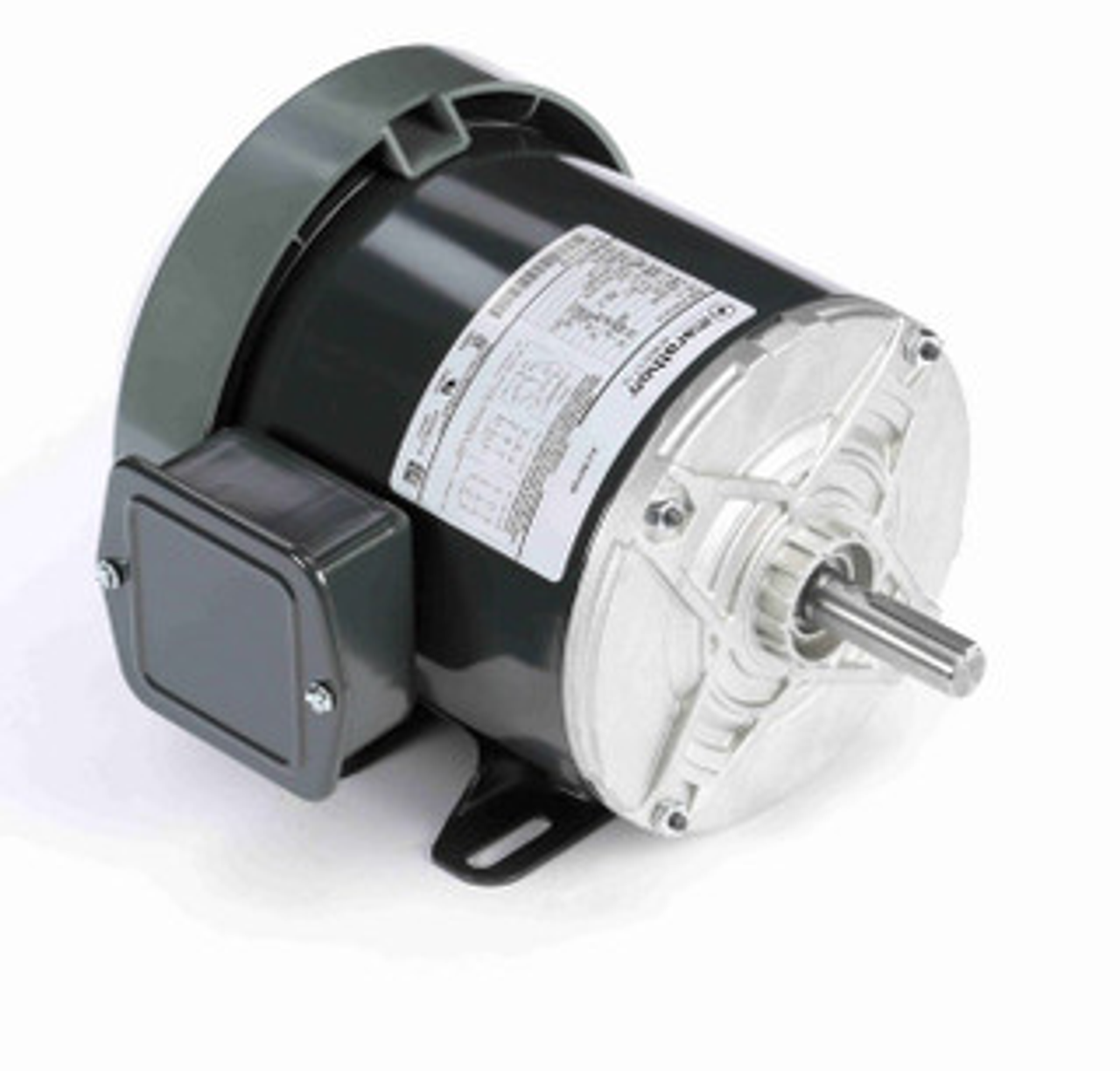

MARATHON MOTORS MK154 General Purpose Motor

Product Description

The MARATHON MOTORS MK154 is a three-phase general-purpose motor used in various applications like pumps, fans, blowers, compressors, and conveyors. This motor is designed for environments that may be damp, dusty, or dirty. It features a rigid base for easy mounting and is totally enclosed to provide protection from external elements. The ball bearings in this motor ensure efficient operation and the thermal overload protection offers safety during operation.

• Suitable for industrial machinery
• Designed for harsh environments
• Includes wiring diagram on the motor plate

Product Highlights

The MK154 motor is ideal for a variety of industrial applications. Its robust construction and reliable performance make it a valuable asset to any operation.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MK154

Technical Specifications

• Horsepower: 1/3 HP
• RPM: 1800
• Input Voltage: 208-230/460 Volt
• Full Load Amps: 1.5-1.6/0.8
• Frequency: 60/50 Hz
• Frame Size: NEMA 56
• Service Factor: 1.15
• Mounting Type: Rigid base
• Bearing Type: Ball Bearing
• Thermal Overload Protection: Yes
• Design: Reversible
• Insulation Class: Class insulation
• Keyed Shaft Dimensions: 5/8 inches diameter x 1 7/8 inches length
