Marathon MK1415 Fan and Blower Motor 3 Phase 5.5-5.6/2.8 amp 1 1/2 HP 1800 RPM 208-230/460V

Product Description

The Marathon MK1415 Fan and Blower Motor is a reliable 3-phase motor designed for various industrial applications. It offers 1 1/2 HP with an operating speed of 1800 RPM. This motor is suitable for use in 208-230/460V systems, handling amperages between 5.5-5.6/2.8 amps.

• Three-phase motor with 1 1/2 HP
• 1800 RPM speed
• 208-230/460V compatibility

Product Highlights

This Marathon fan and blower motor is designed for resilient mounting and features an open drip-proof enclosure. The motor is crafted from rolled steel and includes automatic overload protection.

Product Information

Standard Information

• Brand: Marathon Electric
• Model: MK1415
• Category: Permanent Magnet Motors

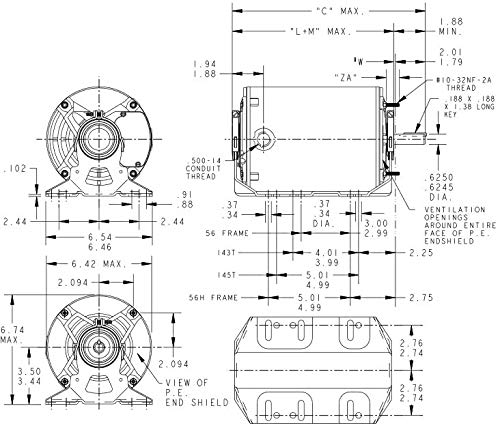

• Frame: 56H

Technical Specifications

• Horsepower: 1 1/2 HP
• Speed: 1800 RPM
• Voltage: 208-230/460V
• Amperage: 5.5-5.6/2.8 amps
• Mounting: Resilient Base
• Frame: 56H
• Enclosure: Open Drip Proof (ODP)
• Material: Rolled Steel
• Overload Protection: Automatic
