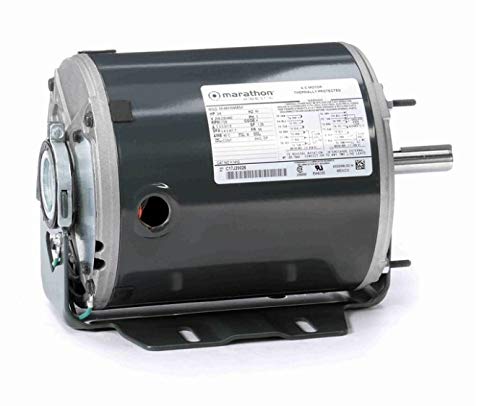

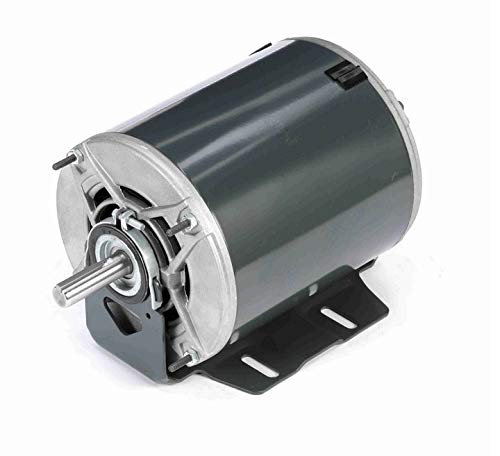

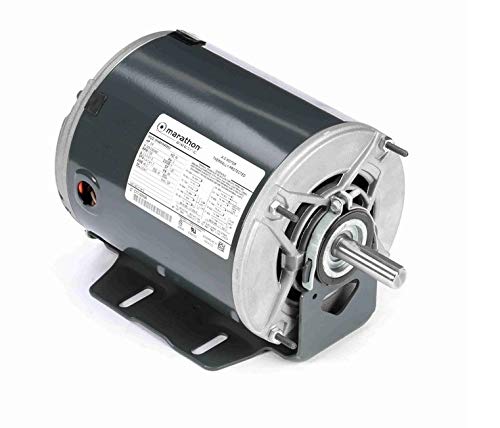

Marathon MK1410 56 Frame 5K46KN4085X Belt Drive Motor, 3 Phase, Resilient Ring Mount, Ball Bearing, 3/4 hp, 1800 RPM, 208-230/460 VAC

Product Description

This Marathon MK1410 belt drive motor is designed for robust performance. It is a three-phase motor with a one-speed operation. Running at 3/4 horsepower, it reaches a maximum speed of 1800 RPM. The motor operates at 208-230/460 VAC with a current draw of 3.3-3.0/1.5 Amps. The MK1410 features a 56 frame with an open drip-proof (ODP) enclosure, ensuring reliable performance in various environments. Its resilient ring mounting and ball bearing system provide stability and longevity.

• Three-phase belt drive motor with one-speed operation
• 3/4 horsepower with 1800 RPM max speed
• 56 frame with open drip-proof enclosure and ball bearing system

Product Highlights

Ideal for various industrial applications, the Marathon MK1410 ensures stable and efficient operation. Suitable for belt-driven systems, this motor provides consistent performance with its ball bearing design and resilient mounting.

Product Information

Standard Information

• Brand: Marathon Electric
• Model: MK1410

Technical Specifications

• Power: 3/4 hp
• Speed: 1800 RPM
• Voltage: 208-230/460 VAC
• Amps: 3.3-3.0/1.5
• Enclosure: Open Drip Proof (ODP)
• Mounting: Resilient Ring
• Bearing System: Ball Bearing
• Frame: 56
