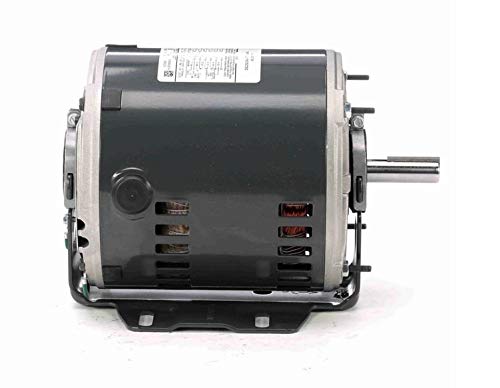

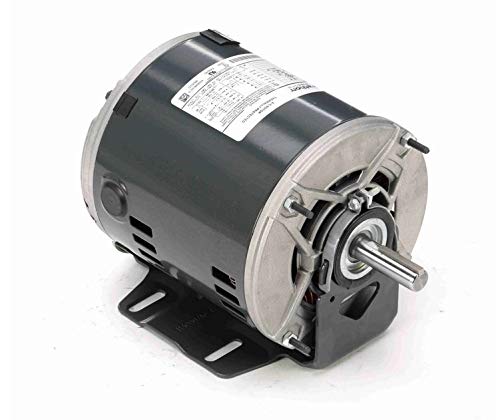

Marathon MK1408 56 Frame Open Drip Proof 5K42HN4089X Belt Drive Motor 1/2 hp 1800 RPM 208-230/460 VAC 3 Phase 1 Speed Ball Bearing Resilient Ring Mount

Product Description

The Marathon Electric MK1408 56 Frame Open Drip Proof Belt Drive Motor, part number 5K42HN4089X, is designed for industrial applications requiring reliable motor performance. Operating at 1/2 horsepower, it delivers a maximum speed of 1800 RPM and functions on 208-230/460 VAC. This motor is three-phase with one-speed operation, featuring a resilient ring mount and a ball bearing system.

• Three phase with one-speed operation
• Rated at 1/2 horsepower, 1800 RPM
• Open drip proof enclosure with resilient ring mount

Product Highlights

This motor's durable construction and reliable performance make it ideal for belt drives and similar applications. The 56 frame size and open drip proof enclosure enhance its functionality in various settings.

Product Information

Standard Information

• Electrical Type: Three Phase
• Horsepower: 1/2

Technical Specifications

• Frame: 56
• Enclosure: Open Drip Proof
• Voltage: 208-230/460
• Rotation: Reversible
• Amperage: 2.3-2.2/1.1
• Material: Rolled Steel
• Mounting: Resilient Base
• Shaft Type: Single
