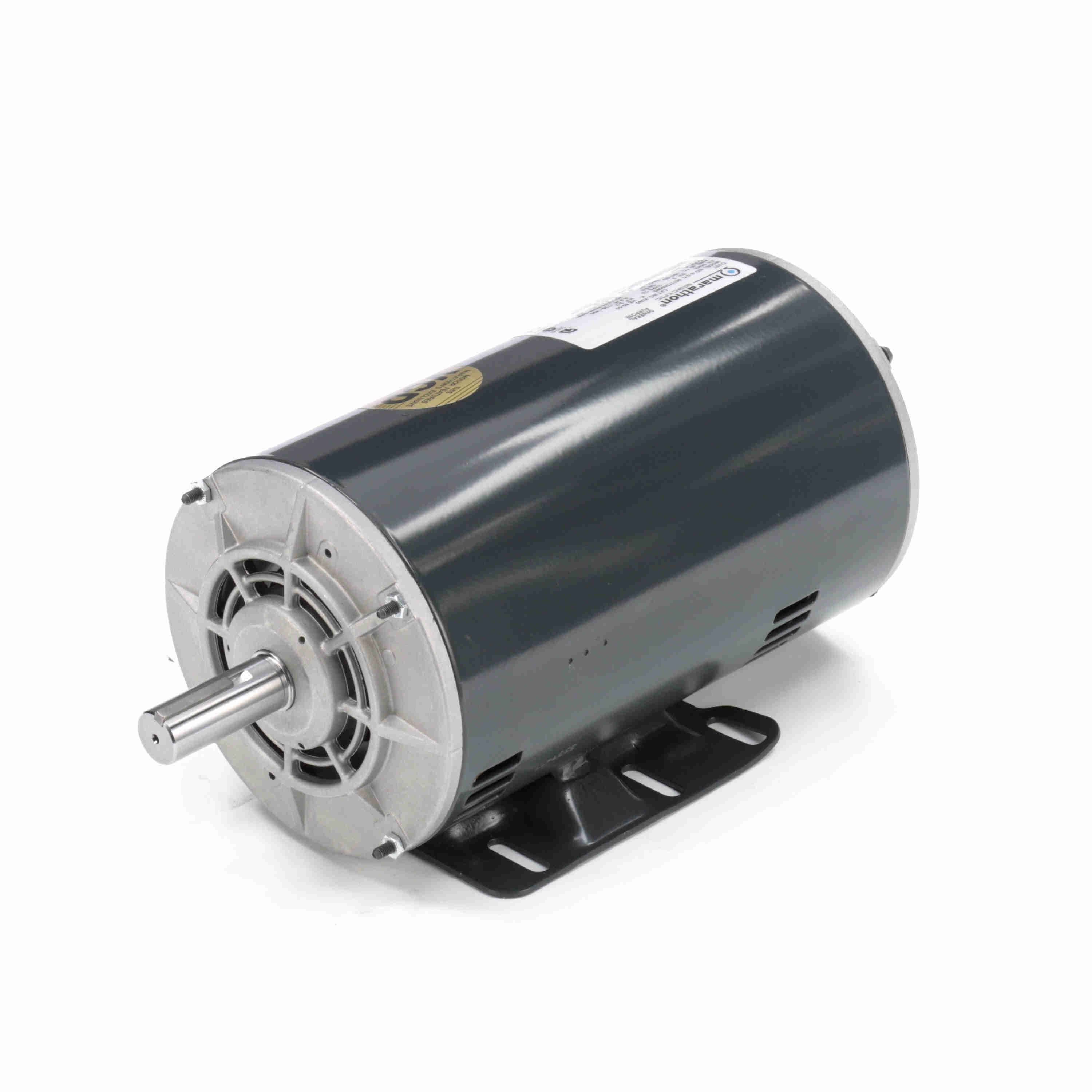

Marathon Electric MK080 General Purpose Motor 3 HP 56HZ Frame 208-230/460 VAC

Product Description

This Marathon Electric MK080 general purpose motor is suitable for various applications. It features a three-phase operation and a single-speed setting, delivering a power output of 3 hp and a maximum speed of 1800 RPM. It operates at 208-230/460 VAC with an amperage range of 9.2-8.6/4.3 Amp.

• General purpose motor with three-phase, single-speed operation
• Runs at 3 hp with 1800 RPM maximum speed
• Features a 56HZ frame with open drip-proof (ODP) enclosure and rigid base mounting

Product Highlights

This motor is equipped with a ball bearing system, auto protection, and a rolled steel frame. It weighs 47 pounds.

Product Information

Standard Information

• Brand: Marathon Electric
• Model/MPN: MK080

Technical Specifications

• Electrical Type: Three Phase
• HP: 3
• RPM: 1725
• Frame: 56HZ
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Three
• Voltage: 208-230/460
• Rotation: REV
• Overload Protection: Auto
• Material: Rolled Steel
• Mounting: Rigid Base
• Amperage: 9.2-8.6/4.3
• Shaft Type: Single
