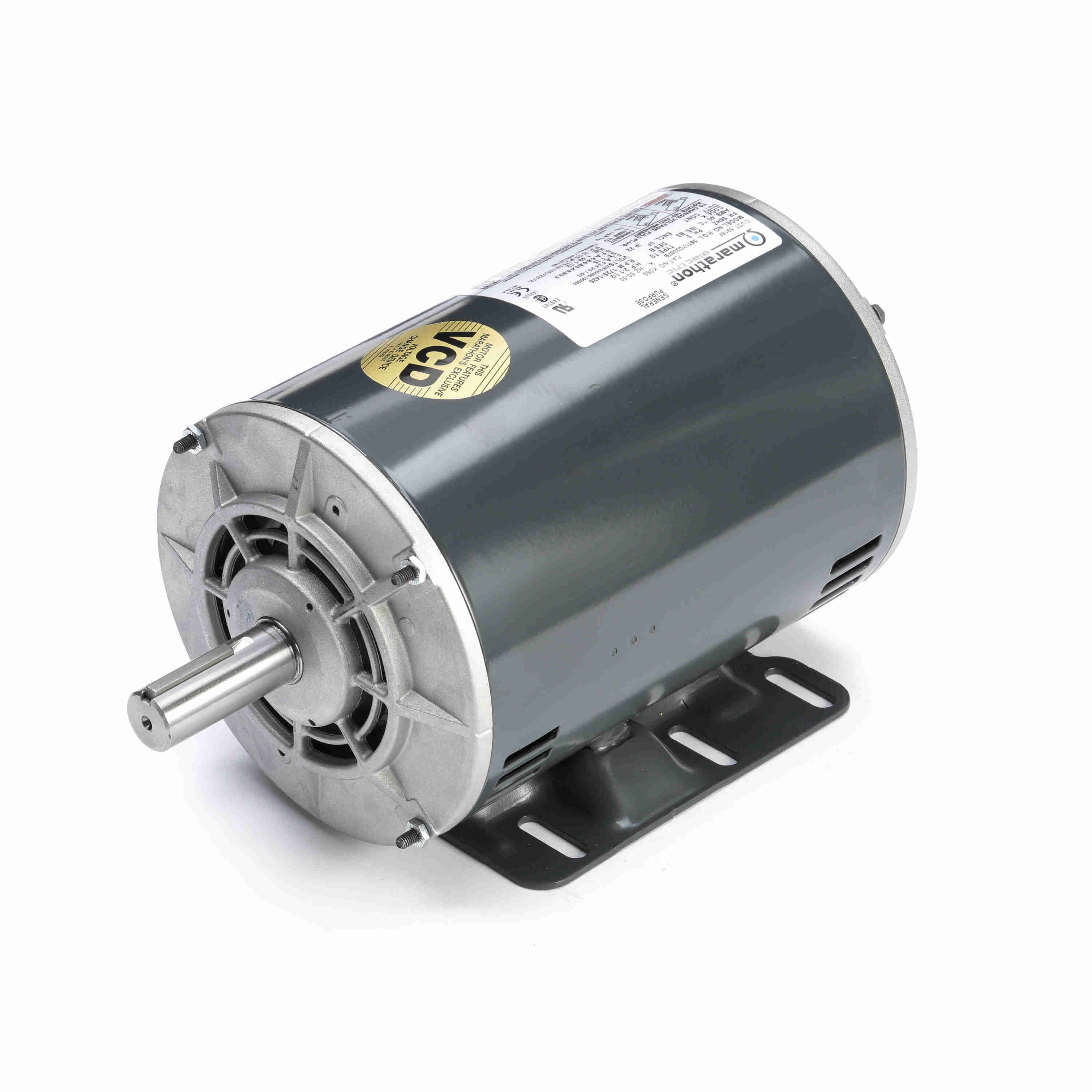

Marathon MK069 General Purpose Motor 2 hp 56HZ

Product Description

Marathon MK069 is a three-phase general purpose motor designed for various applications. It operates at 2 hp with a maximum speed of eighteen hundred revolutions per minute. This motor uses a voltage range of two hundred eight to two hundred thirty or four hundred sixty VAC and has an amperage rating of six point two to six point two or three point one. It features a 56HZ frame and an open drip proof enclosure.

• Three-phase motor with a single-speed operation
• Power rating of 2 hp and maximum speed of 1800 RPM
• Open drip proof enclosure with rigid base for mounting

Product Highlights

Designed for reliable performance in various industrial settings, this marathon motor is suitable for use with variable frequency drives.

Product Information

Standard Information

• Type: Electric Motor
• Brand: Marathon

Technical Specifications

• MPN: MK069
• Frame Size: 56HZ
• HP: 2
• Speed: 1800 RPM
• Voltage: 208-230/460
• Amperage: 6.2-6.2/3.1
• Weight: 34 lbs
• Material: Rolled Steel
• Mounting Type: Rigid Base
• Enclosure Type: Open Drip Proof
