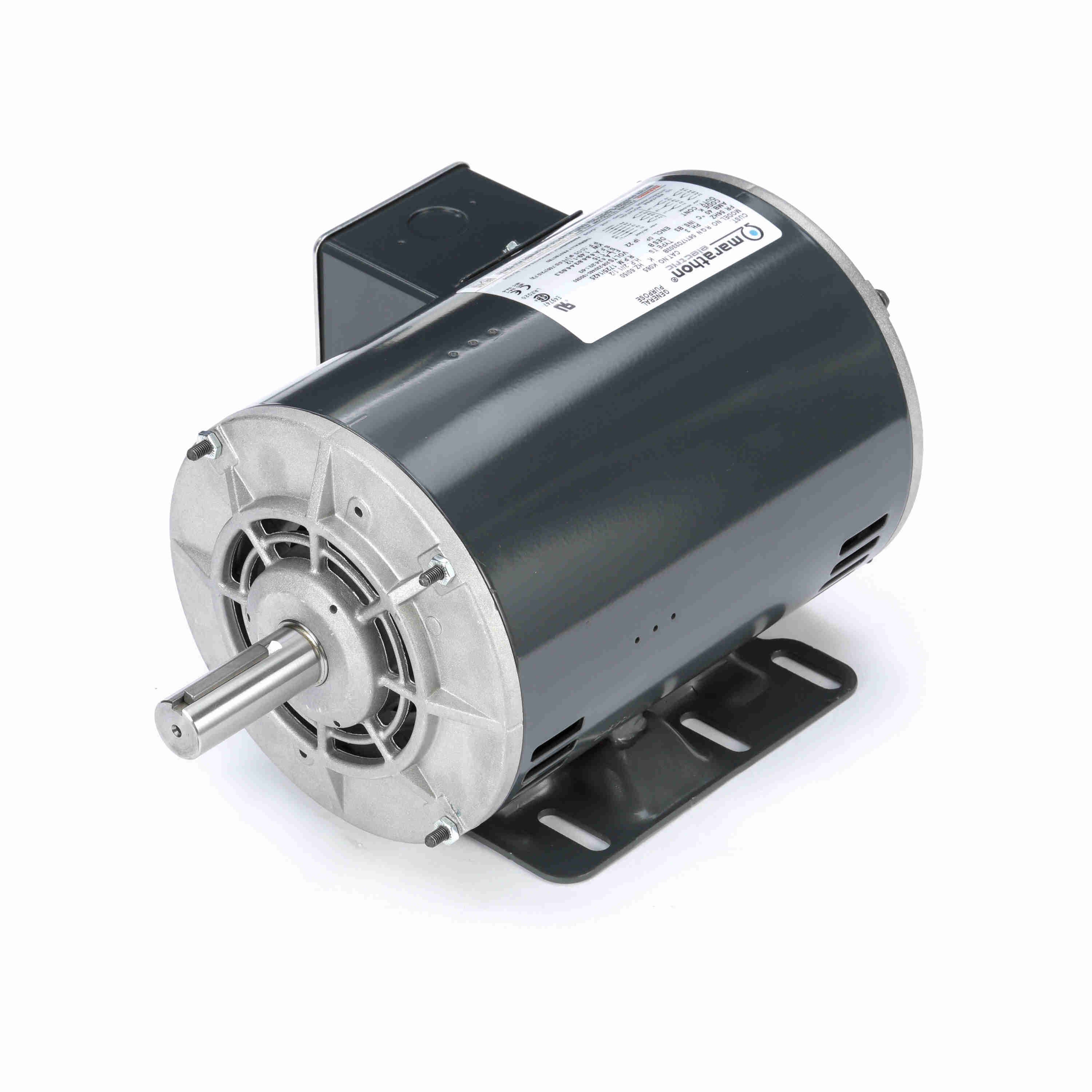

Marathon MK065 General Purpose Motor 2 HP 1800 RPM 56HZ Frame 208-230/460V

Product Description

The Marathon MK065 general purpose motor is designed for various applications and features three-phase power. With a maximum speed of 1800 RPM, this motor operates efficiently at 2 HP and 208-230/460V. It includes an open drip proof (ODP) enclosure and a rigid base mount.

• Motor 2 HP, 1800 RPM
• Three-phase, 208-230/460V
• Open drip proof (ODP) enclosure

Product Highlights

This Marathon MK065 motor is optimized for general use. Its rolled steel frame ensures durability and the rigid base enhances stability during operation.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MK065

Technical Specifications

• Horsepower: 2 HP
• Speed: 1800 RPM
• Voltage: 208-230/460V
• Phase: Three
• Frame: 56HZ
• Enclosure: Open Drip Proof (ODP)
• Mounting: Rigid Base
• Material: Rolled Steel
• Amperage: 6.2-6.2/3.1 A
• Diameter: 6.5 inches
• Shaft Type: Single
• Protection: Auto
• Weight: 35 pounds
