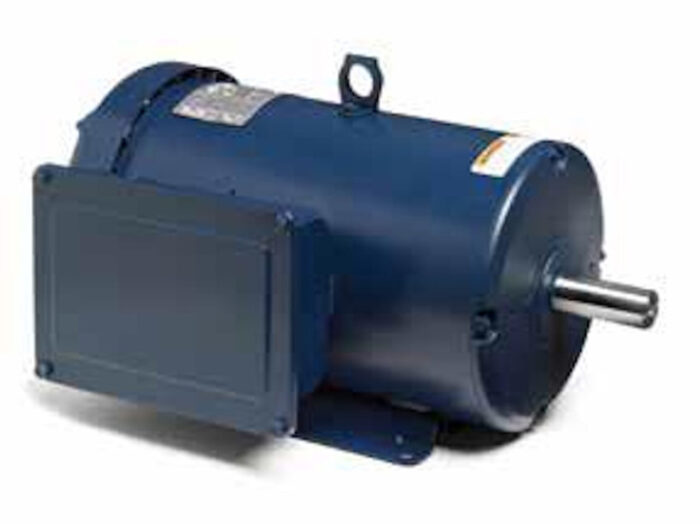

MARATHON MOTORS MI707 Electric Motor 3/4 HP NEMA 143T

Product Description

The MARATHON MOTORS MI707 is a single-phase electric motor that is useful for various general-purpose applications. It operates on a capacitor start/run design and comes in a totally enclosed fan-cooled (TEFC) enclosure. This motor features durable ball bearings and is insulated with Class F materials for improved safety and performance. Wiring diagrams are available on the motor plate for easy reference. The motor is designed for rigid base mounting and is reversible.

• TEFC design for enhanced durability
• Easy access wiring diagram on the motor plate
• Reversible operation for flexible usage

Product Highlights

This electric motor is ideal for HVAC, plumbing, and industrial applications where reliability is essential.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MI707

Technical Specifications

• Power: 3/4 HP
• Speed: 1200 RPM
• Amperage: 11.4/5.7 Amps
• Voltage: 115/208-230 Volts
• Frequency: 60 Hz
• Start Type: Capacitor Start/Run

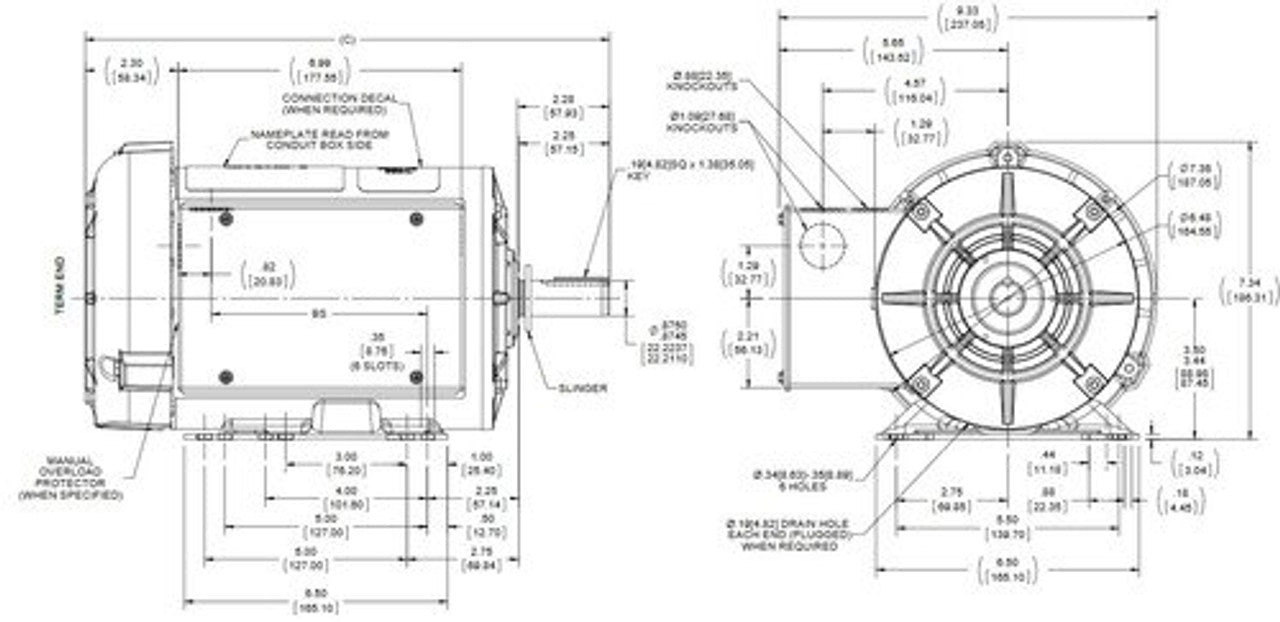

• Frame Size: NEMA 143T
• Shaft Diameter: 7/8 inches x 2 1/4 inches
• Service Factor: 1.15
• Overload Protection: None
• Mounting Type: Rigid Base
• Bearing Type: Ball Bearings
• Insulation Class: Class F
