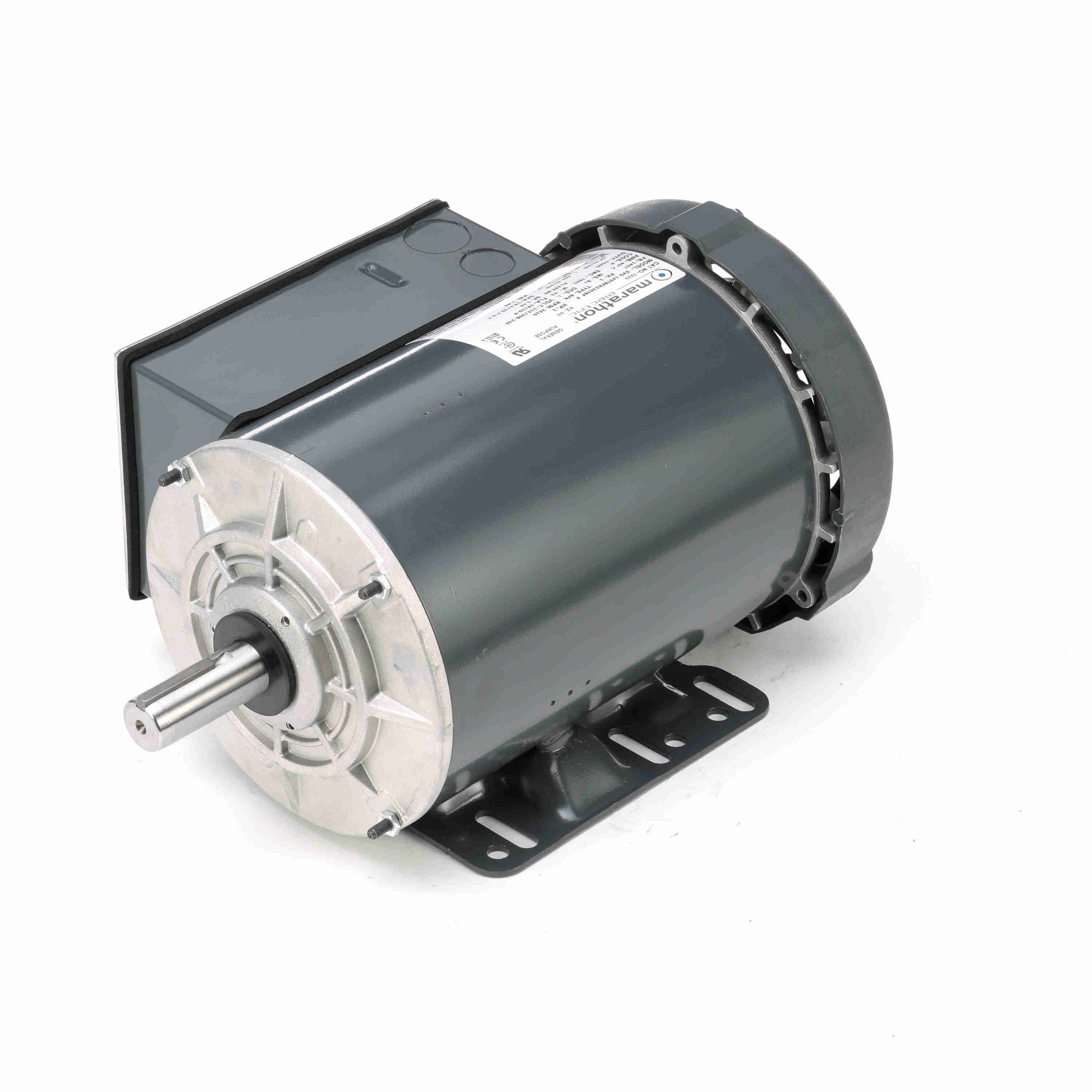

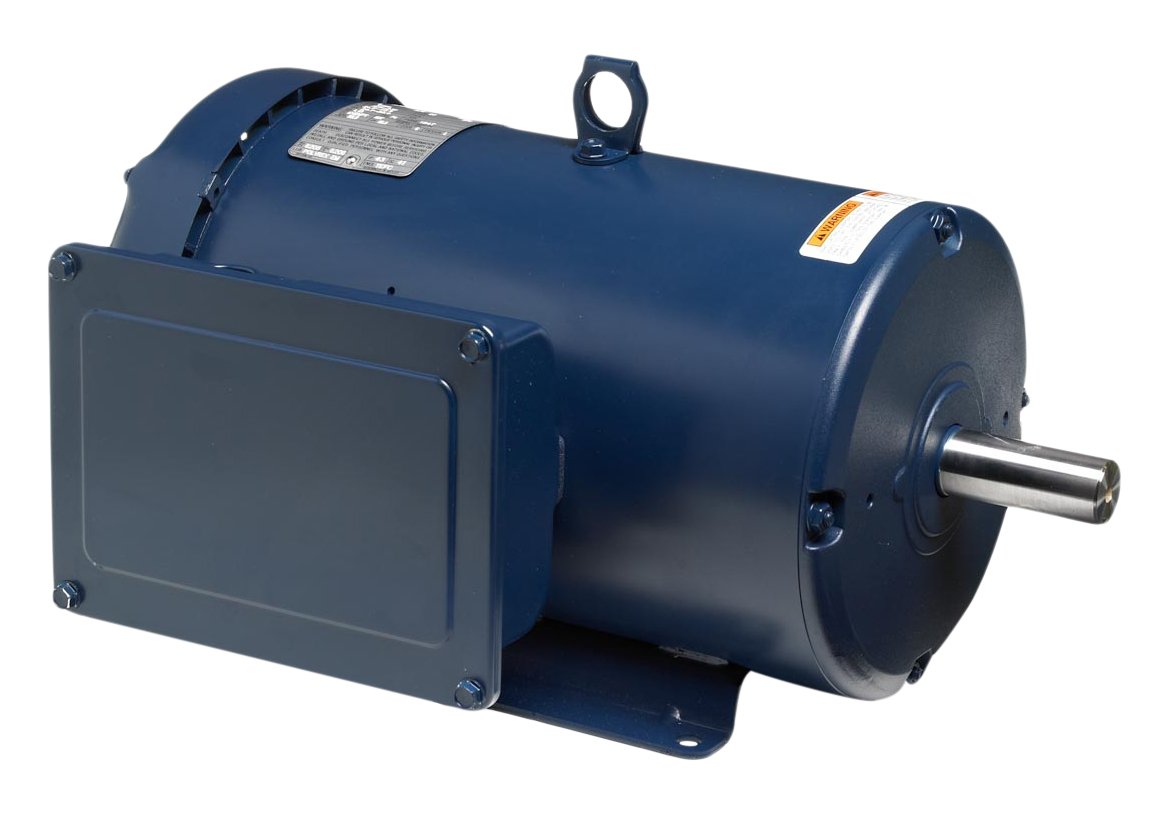

Marathon MI221 General Purpose Motor 2 HP 3600 RPM Ball Bearing Rigid Base

Product Description

The Marathon MI221 General Purpose Motor is a high-performance motor designed for various applications. Manufactured by Marathon Electric, this motor has an MPN of MI221 and is known for its robust design and efficiency. Ideal for HVAC systems and other industrial uses.

• 2 HP motor power
• 3600 RPM speed
• Rigid base for stable mounting

Product Highlights

This motor features a capacitor start and operates at 2 horsepower. With a speed of 3600 RPM, it is enclosed in a totally enclosed fan cooled (TEFC) casing made from rolled steel, ensuring durability and protection from external factors. It operates on a single-phase power supply.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MI221

Technical Specifications

• Horsepower: 2
• Speed: 3600 RPM
• Frame: 145T
• Enclosure: TEFC
• Voltage: 115/208-230 VAC
• Phase: Single
• Material: Rolled Steel
• Rotation: REV
• Mounting: Rigid Base
• Amperage: 18.0/10.0-9.0
• Shaft Type: Single
• Bearing Type: Ball Bearing
