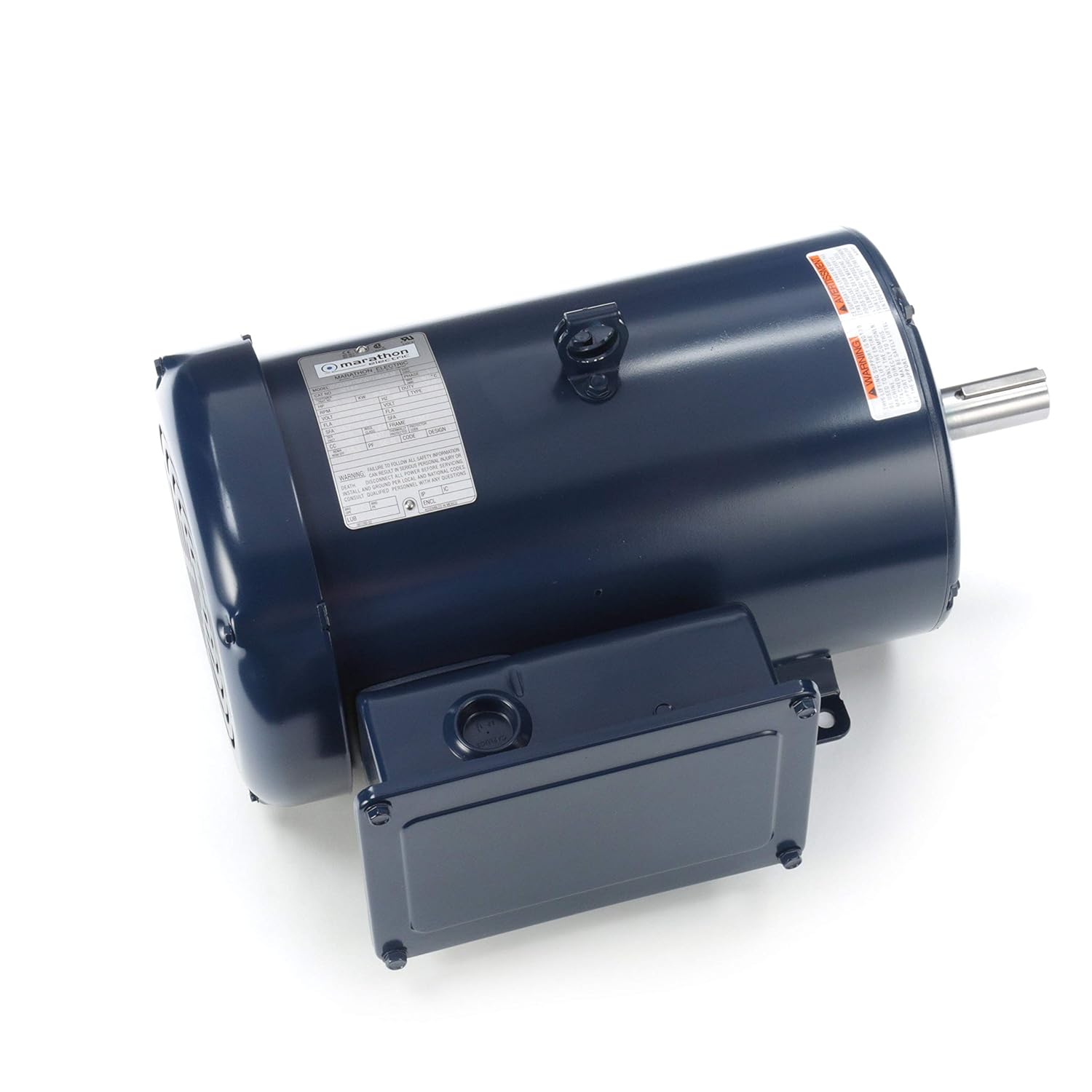

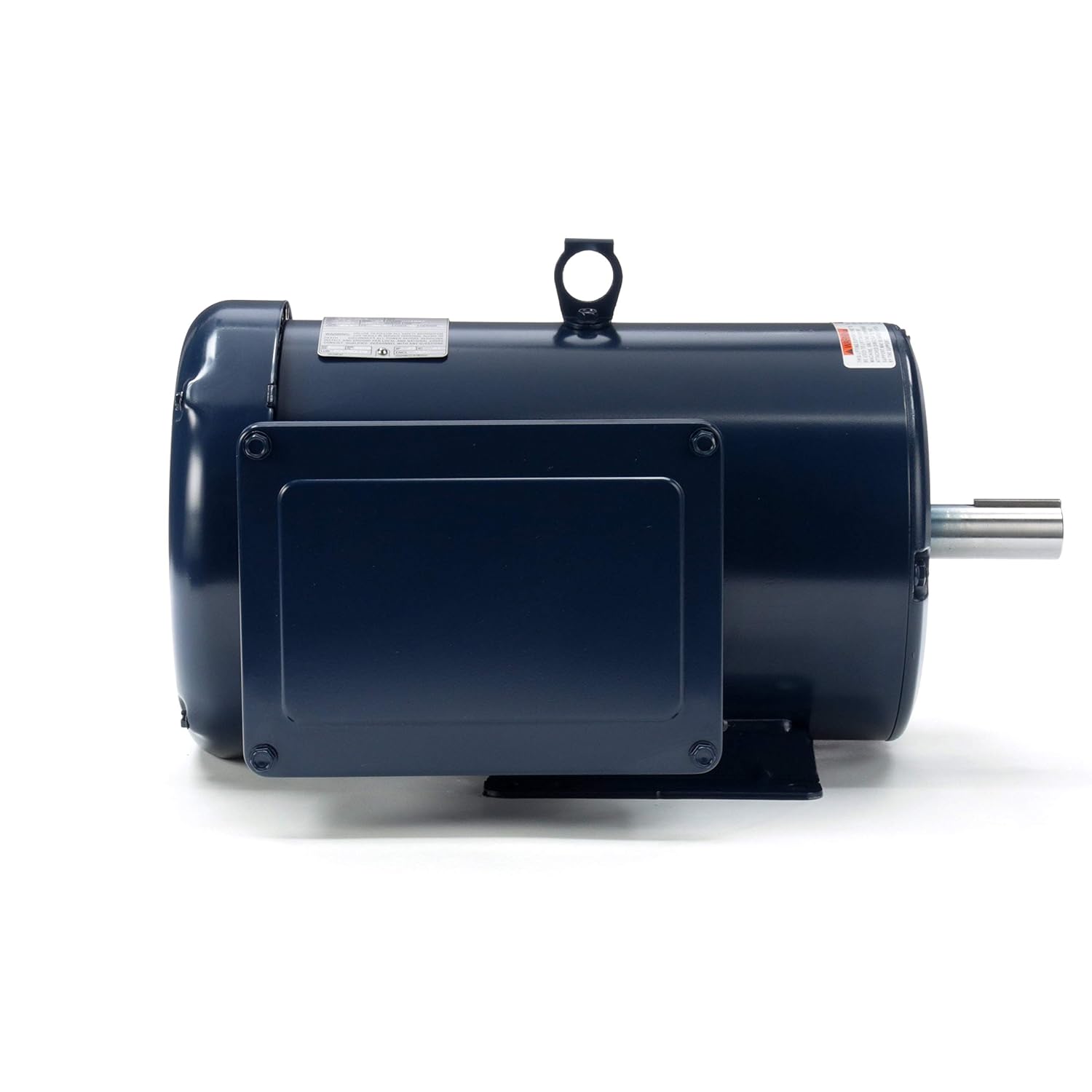

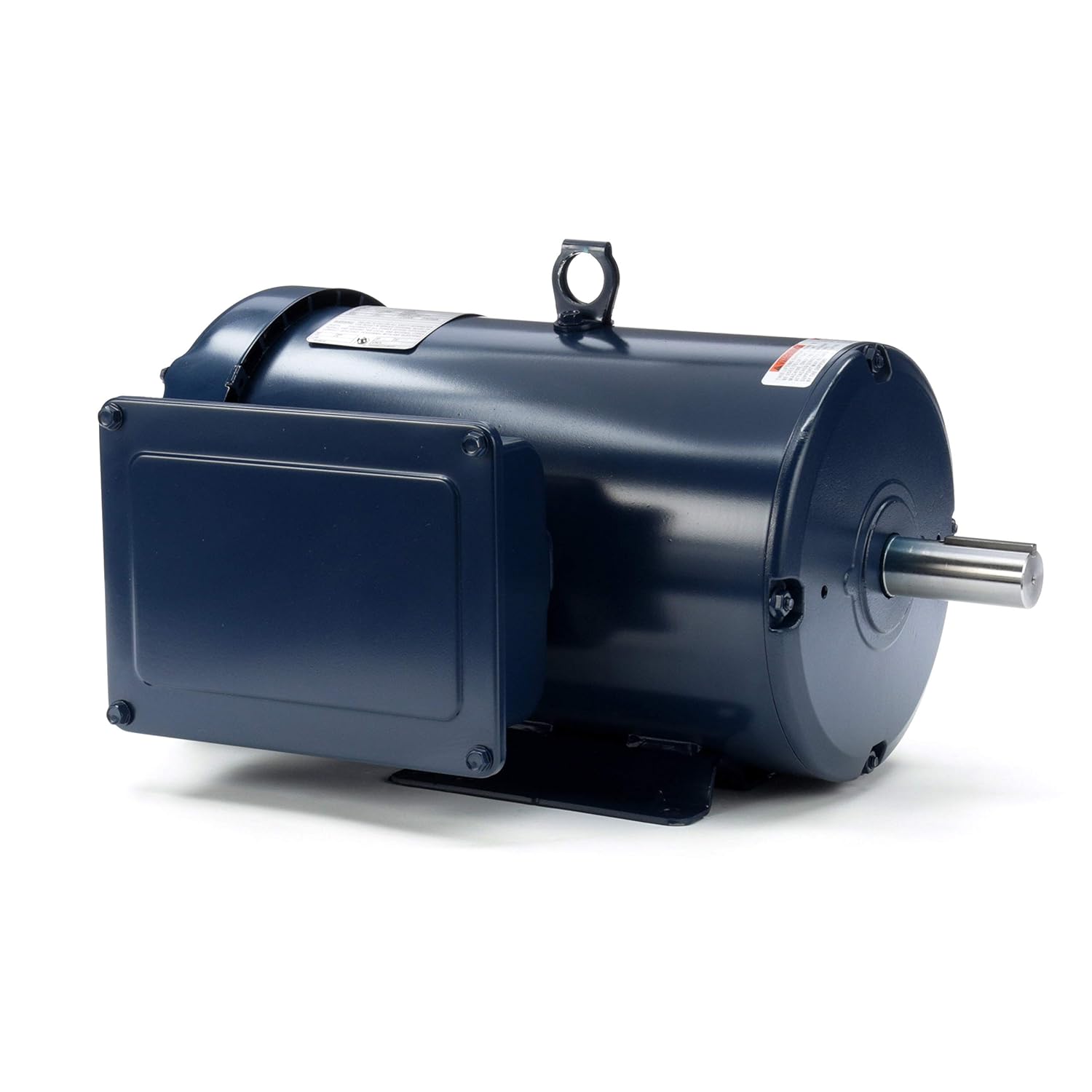

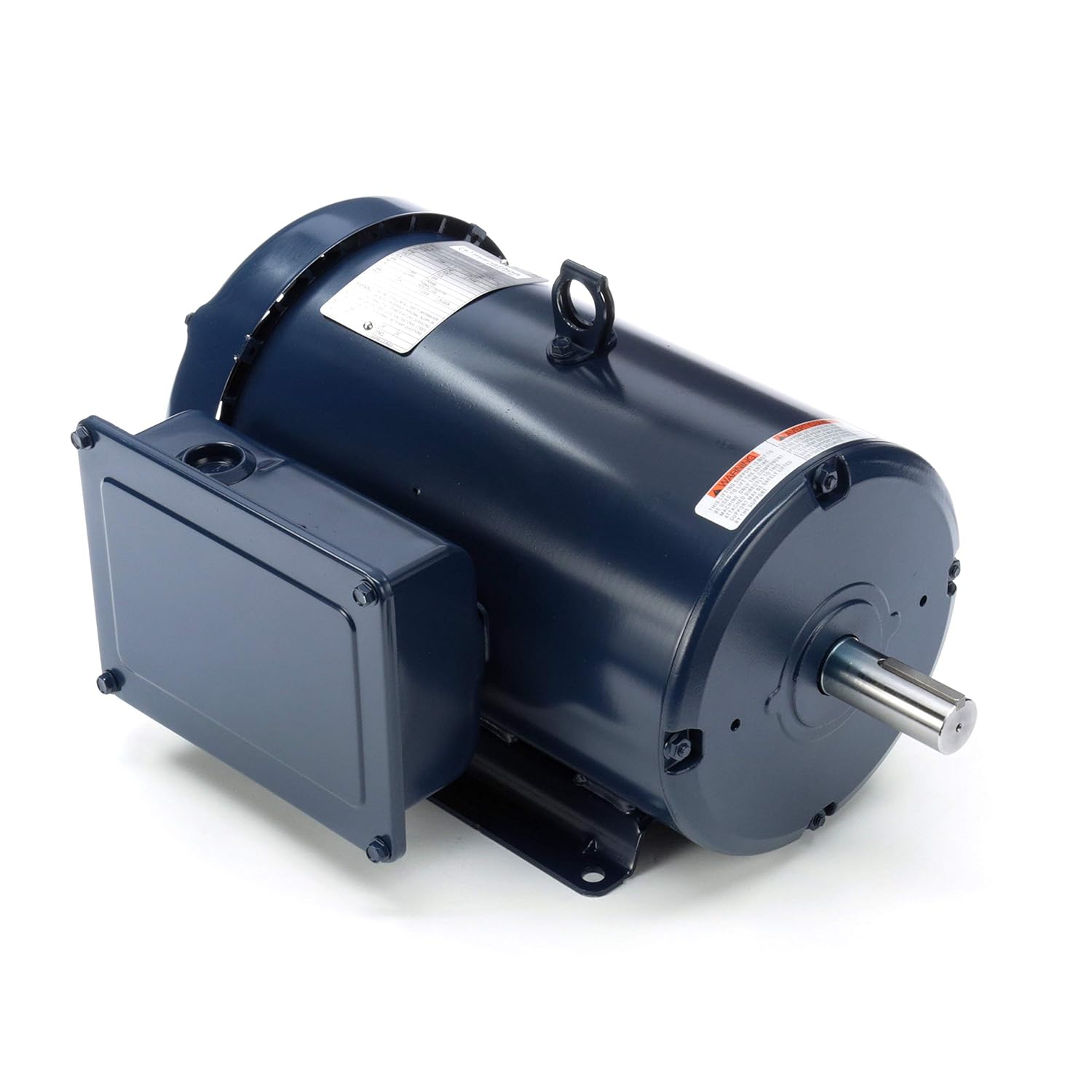

Marathon MI214A General Purpose Motor 5 HP 1 Phase 208-230 Volts 1800 RPM TEFC

Product Description

The Marathon MI214A General Purpose Motor is a versatile and reliable solution for various industrial applications. This motor offers a power rating of 5 HP, with a speed of 1800 RPM, making it suitable for demanding tasks.

• 5 HP Power Rating
• 1800 RPM Speed
• TEFC Enclosure

Product Highlights

This single-phase motor operates at 208-230 volts and features a 184T frame size with a rolled steel construction. The rigid base mounting ensures stability, while the TEFC (Totally Enclosed Fan Cooled) enclosure provides protection from the environment.

Product Information

Standard Information

• Manufacturer: Marathon Electric
• Brand: Marathon Electric
• Product Name: General Purpose Motor

Technical Specifications

• MPN: MI214A
• Horsepower: 5 HP
• Speed: 1800 RPM
• Voltage: 208-230 Volts
• Frame: 184T
• Enclosure: TEFC
• Amperage: 21.5-19.5
• Material: Rolled Steel
• Mounting: Rigid Base
• Rotation: REV
• Phase: Single
• Length: 20.13 inches
• Width: 14.63 inches
• Height: 12.38 inches
• Weight: 103 pounds
