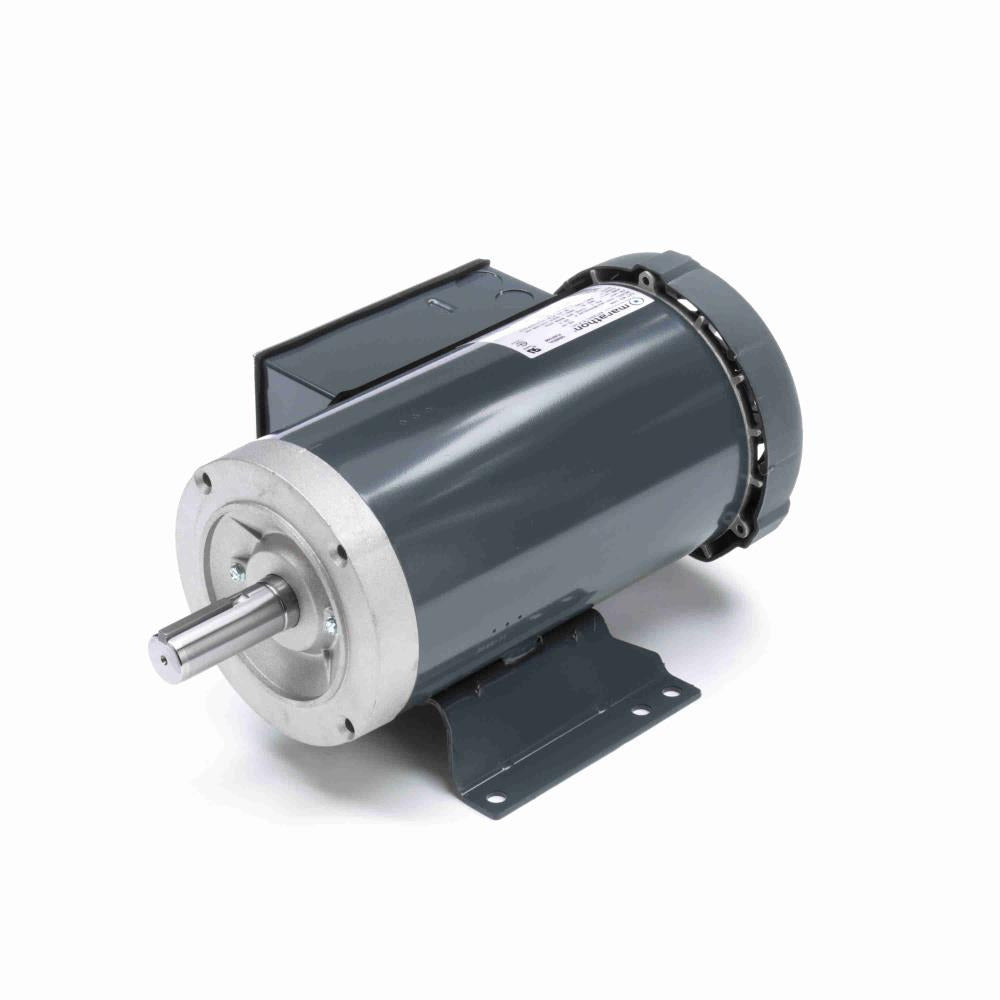

Marathon MI206 General Purpose Motor 3 HP 115/208-230 Replacement

Product Description

Marathon MI206 is a general purpose motor designed for various industrial applications. With a power of three horsepower, this motor operates at 3520 RPM. It features a TEFC enclosure, making it suitable for harsh environments. The motor is single-phase and can operate on 115 or 208 to 230 volts. Its rigid base mounting offers stability during operation.

• Three horsepower with a rotational speed of 3520 RPM.
• TEFC enclosure for durability and protection.
• Single-phase operation with a voltage range of 115/208-230 volts.

Product Highlights

Marathon MI206 motor is ideal for HVAC, pumps, and machinery where reliable performance is needed. The rolled steel construction ensures strength and longevity.

Product Information

Standard Information

• Brand: Marathon
• MPN: MI206

Technical Specifications

• Power: 3 HP
• RPM: 3520
• Frame Size: 182T
• Enclosure: TEFC
• Phase: Single
• Voltage: 115/208-230
• Rotation: REV
• Mounting Type: Rigid Base
• Amperage: 24.6/13.9-12.3
• Shaft Type: Single
