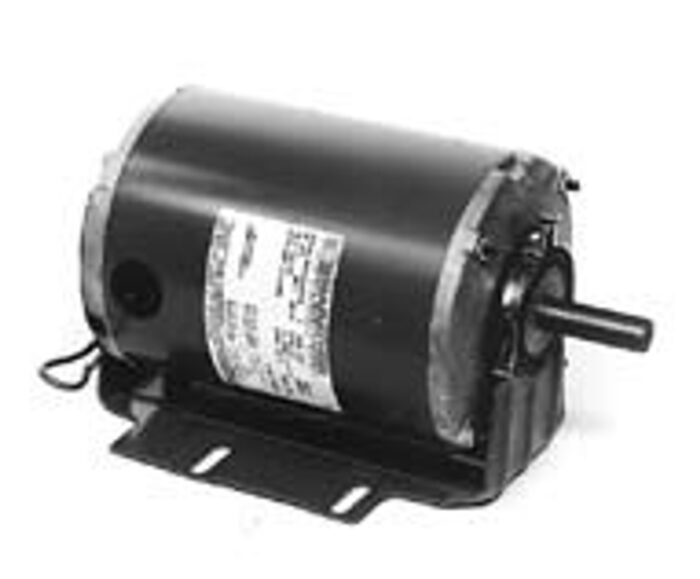

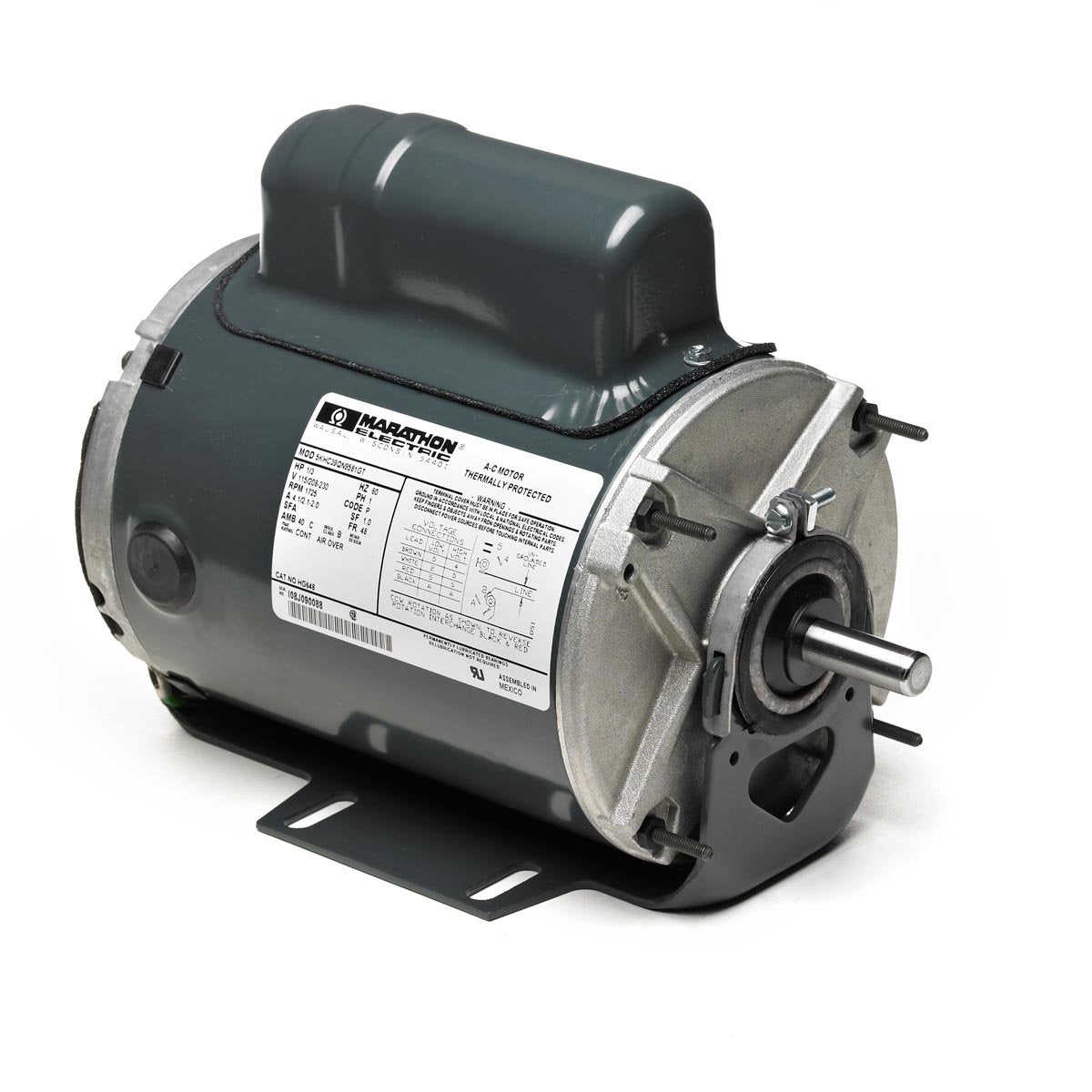

MARATHON MOTORS MHG648 Farm Duty Motor 1/3 hp 1800 RPM

Product Description

The MARATHON MOTORS MHG648 is a single-phase farm duty motor suitable for agricultural uses. It provides a power output of 1/3 horsepower and can run at 1725 or 1800 RPM. The motor is designed with a totally enclosed structure to protect its inner components and is mounted on a resilient base for stability.

• Suitable for agricultural applications.
• Features a robust rolled steel construction.
• Equipped with an automatic overload protector.

Product Highlights

The MARATHON MOTORS MHG648 offers reliability and durability for farm tasks, making it an essential component for various agricultural machines.

Product Information

Standard Information

• Manufacturer Part Number: MHG648
• Horsepower: 1/3 hp

Technical Specifications

• Speed: 1800 RPM
• Voltage: 115/208-230 VAC
• Material: Rolled Steel
• Mounting Type: Resilient Base
• Enclosure: Totally Enclosed Air Over (TEAO)
• Frame Size: 48
• Weight: 17 lbs
• Phase: Single
• Overload Protector: Automatic
• Rotation: Reversible
• Service Factor: 1.0
