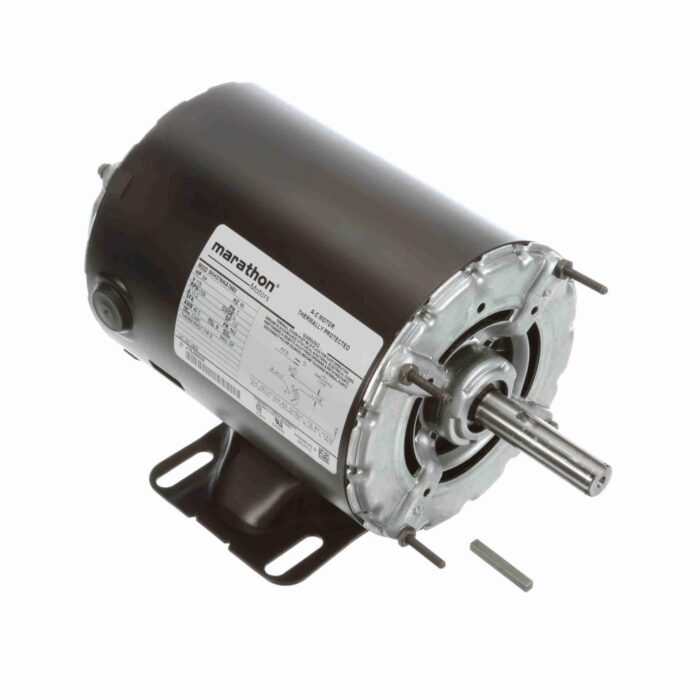

MARATHON MOTORS MH908 General Purpose Motor 3/4 HP

Product Description

The MARATHON MOTORS MH908 is a split phase, single-phase motor suitable for general-purpose applications. This motor operates at 115V and includes automatic overload protection, ensuring reliable performance during operations. The motor is designed with a rigid base mount for easy installation and an open drip proof enclosure, which helps protect it from moisture.

• Electrical split phase motor
• Includes automatic overload protection
• Features a rigid base mount

Product Highlights

Durable construction suitable for various applications, utilizing ball bearings for smooth operation and offering reversible rotation for flexibility.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• MPN: MH908

Technical Specifications

• Electrical Type: Split phase
• Phase: Single
• Voltage: 115V
• Overload Protector: Automatic
• Frame Size: 56z
• Enclosure: Open drip proof (ODP)
• Material: Rolled steel
• Horsepower: 3/4 HP
• Rotation: Reversible
• RPM: 1725
• Number of Speeds: 1
• Service Factor: 1.0
• Mounting Type: Rigid base mount
• Bearing Type: Ball bearings
• Insulation Class: Class B
• End Shields: Steel
• Keyed Shaft Diameter: 5/8 inches
• Keyed Shaft Length: 2 1/4 inches
