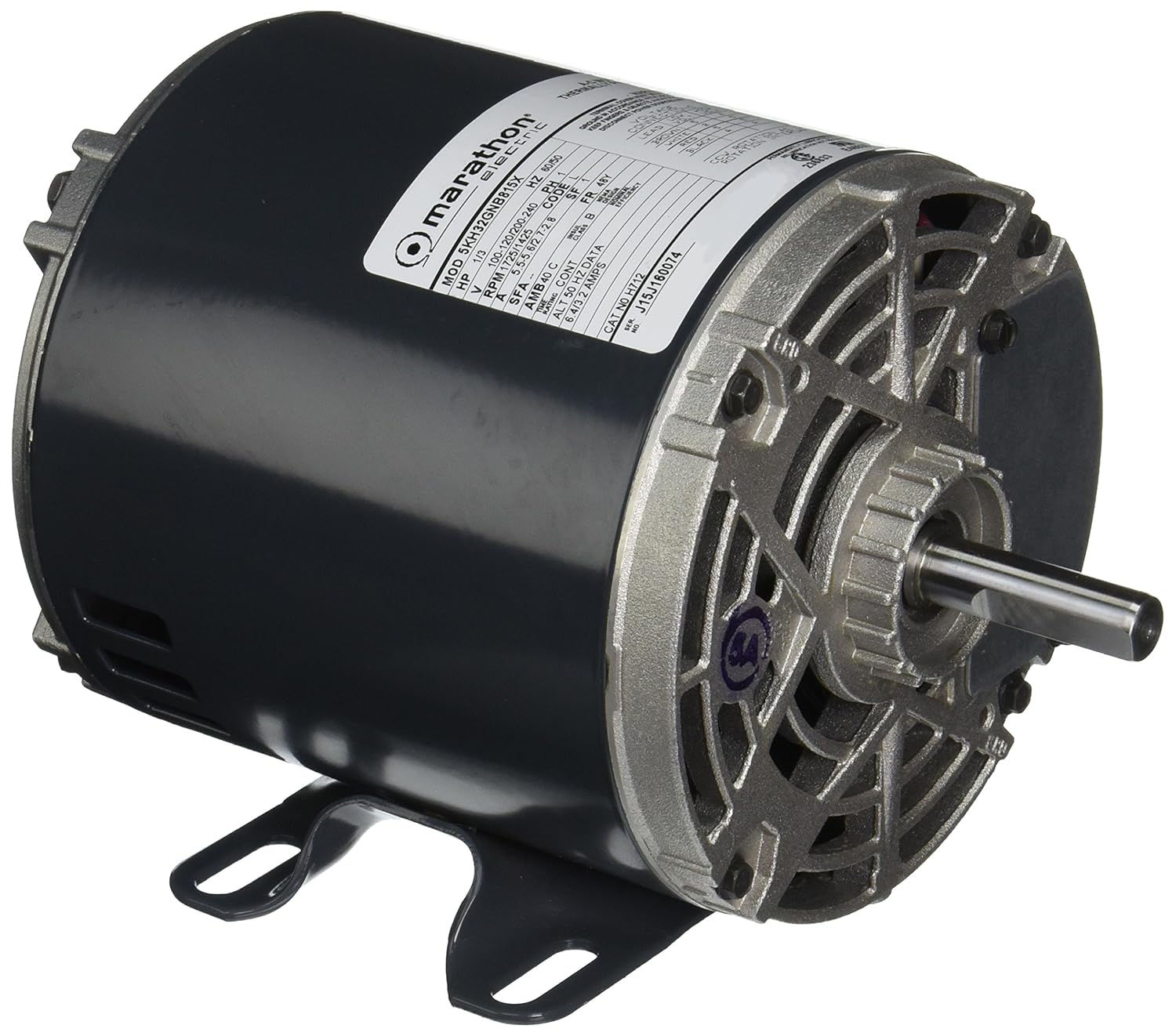

Marathon MH712 48Y Frame 5KH32GNB815X Carbonator Pump Motor 1/3 hp Two Speed Open Drip Proof

Product Description

The Marathon MH712 carbonator pump motor by Marathon Electric is designed for reliable performance. This model, 5KH32GNB815X, is single split phase with two-speed operation. It offers 1/3 hp and operates at both 1800 rpm and 1500 rpm. It supports 100-120/200-240 VAC with an amperage of 5.5-5.6/2.7-2.8 amps. The 48Y frame features an open drip proof (ODP) enclosure, rigid base mounting, and a ball bearing system.

• Single split phase with two-speed operation
• 1800 rpm and 1500 rpm maximum speeds
• Supports 100-120/200-240 VAC

Product Highlights

This motor is ideal for various applications requiring a reliable carbonator pump. It features an open drip proof design to protect against moisture and contaminants. The rigid base ensures stability during operation.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: MH712

Technical Specifications

• Electrical Type: Split Phase
• Horsepower: 1/3
• RPM: 1725
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 100-120/200-240 VAC
• Rotation: REV
• Overload: Auto
• Material: Rolled Steel
• Mounting: Rigid Base
• Amperage: 5.5-5.6, 2.7-2.8
• Shaft Type: Double
• Weight: 14 pounds
