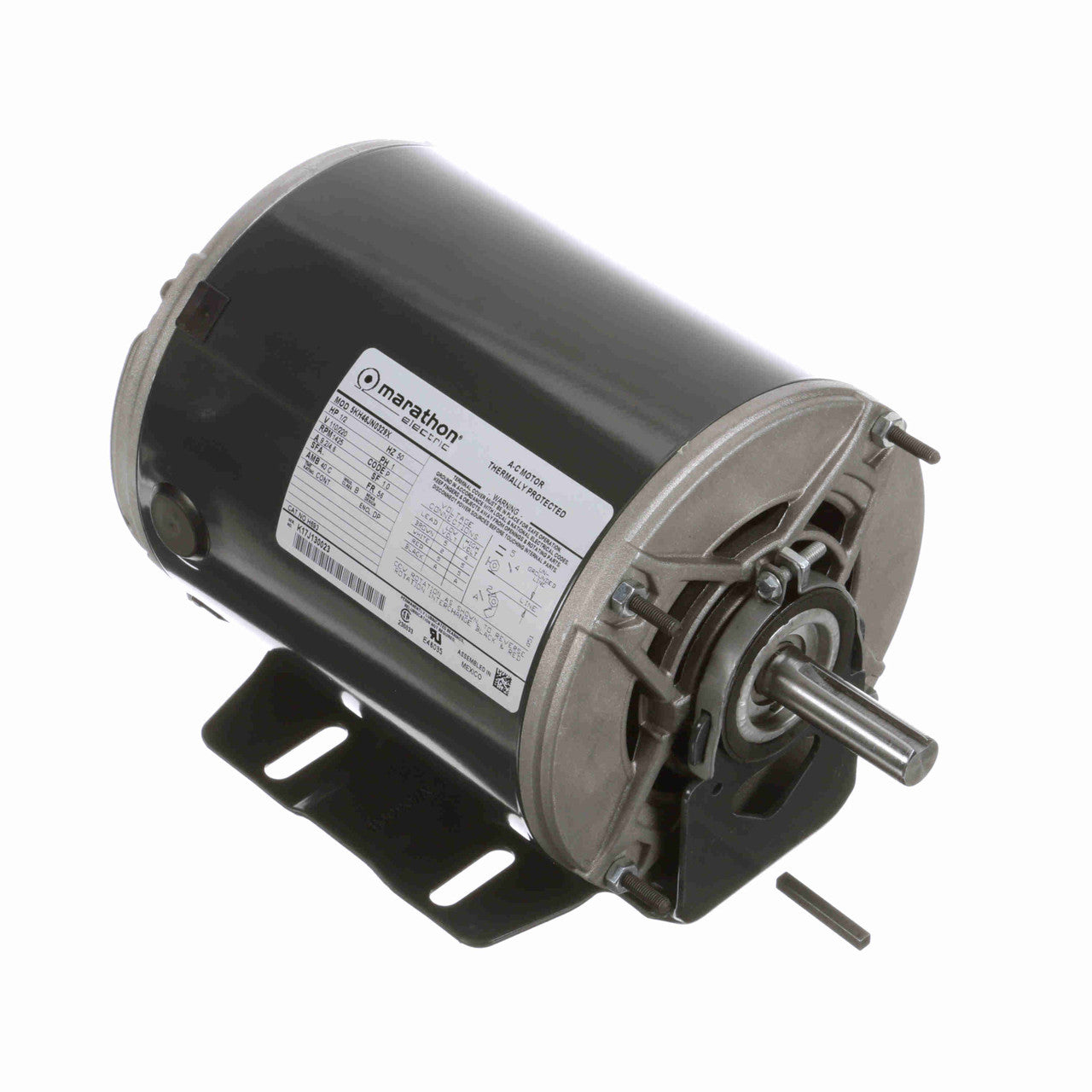

Marathon Motors MH693 H693 1/2 HP 1425 RPM 110/220 Volts General Purpose Motor

Specifications:
Product Category: General Purpose NEMA General Purpose Single Phase Motors > Single Phase ODP Motors
HP: 1/2
Volts: 110/220
Frequency: 50
Amps: 9.2,4.6
RPM (Number of Poles): 4 (1201 RPM to 1800 RPM)
RPM (Nameplate): 1425
Speeds: 1
Phase: 1
Enclosure Type: Drip Proof
Rotation: Counterclockwise/Clockwise
Mounting Type: Resilient Base
Frame Type: 56
Frame Material: Rolled Steel
Shaft Diameter: 5/8 (in.)
Shaft Extension: 1.88 (in.)
DE Bearing Type: Ball
ODE Bearing Type: Ball
C-Dimension: 10.88 (in.)
Electrical Type: Split Phase
Duty: Continuous
Motor Orientation: ANY
Service Factor: 1
Type of Overload Protector: AUTO
Insulation Class B
Max Ambient 40C
UL Recognized
CE N
CSA Y
KVA Code P
DEM Reference NOHP
