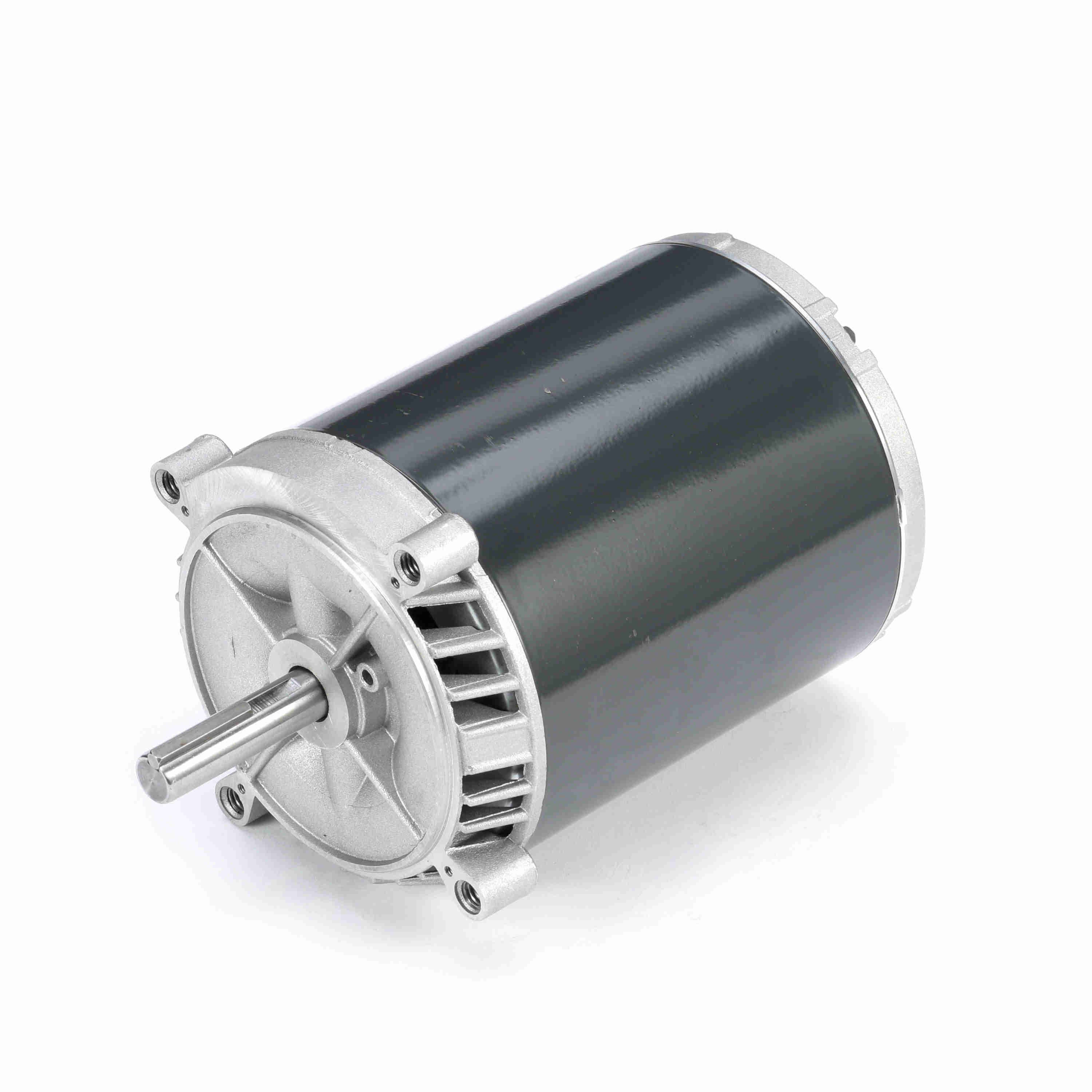

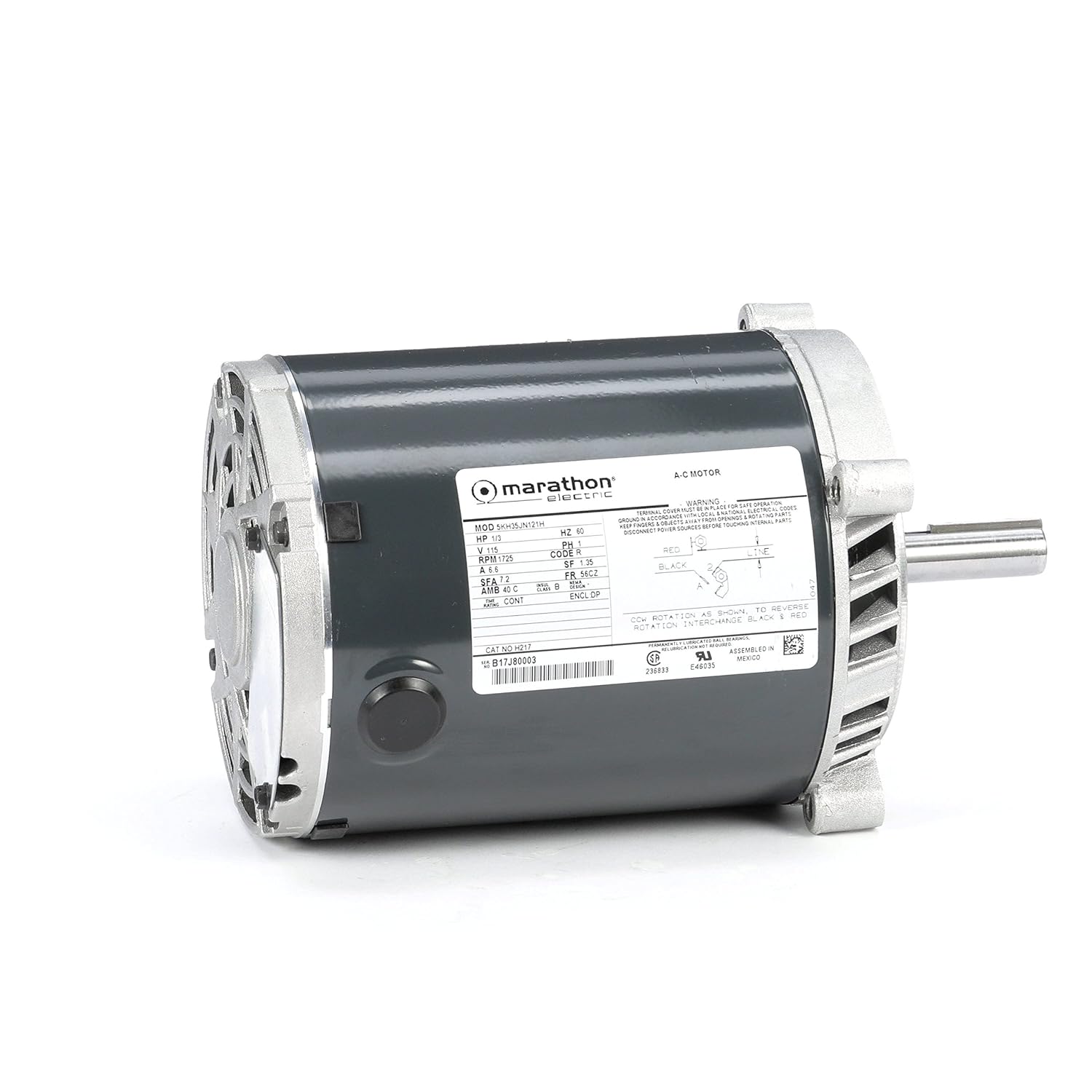

Marathon MH217 Exhaust Ventilator Motor 115 Volts 56CZ Frame Single Split Phase

Product Description

The Marathon MH217 Exhaust Ventilator Motor is a reliable single split phase motor designed for ventilator applications. This motor by Marathon Electric operates with a power of 1/3 HP at a maximum speed of 1725 RPM, drawing 115 volts and 6.6 amps.

• Single split phase, one-speed operation
• 56CZ frame with open drip proof (ODP) enclosure
• C-face mounting and ball bearing system

Product Highlights

Ideal for exhaust ventilation applications, the Marathon MH217 motor is designed for durability and efficient performance. Its C-face mounting and ball bearing system ensure optimal operation even in demanding conditions.

Product Information

Standard Information

• Type: Exhaust Ventilator Motor
• Brand: Marathon Electric
• Model: H217

Technical Specifications

• MPN: MH217
• Speed: 1725 RPM
• Voltage: 115 Volts
• Horsepower: 0.33 HP
• Amperage: 6.6 Amps
• Frame: 56CZ
• Enclosure: Open Drip Proof (ODP)
• Mounting: C-Face, Footless
• Material: Rolled Steel
• Shaft Type: Single
• Weight: 14 pounds
• Package Dimensions: 13.1 x 8.3 x 7.3 inches
• Certification: UL
