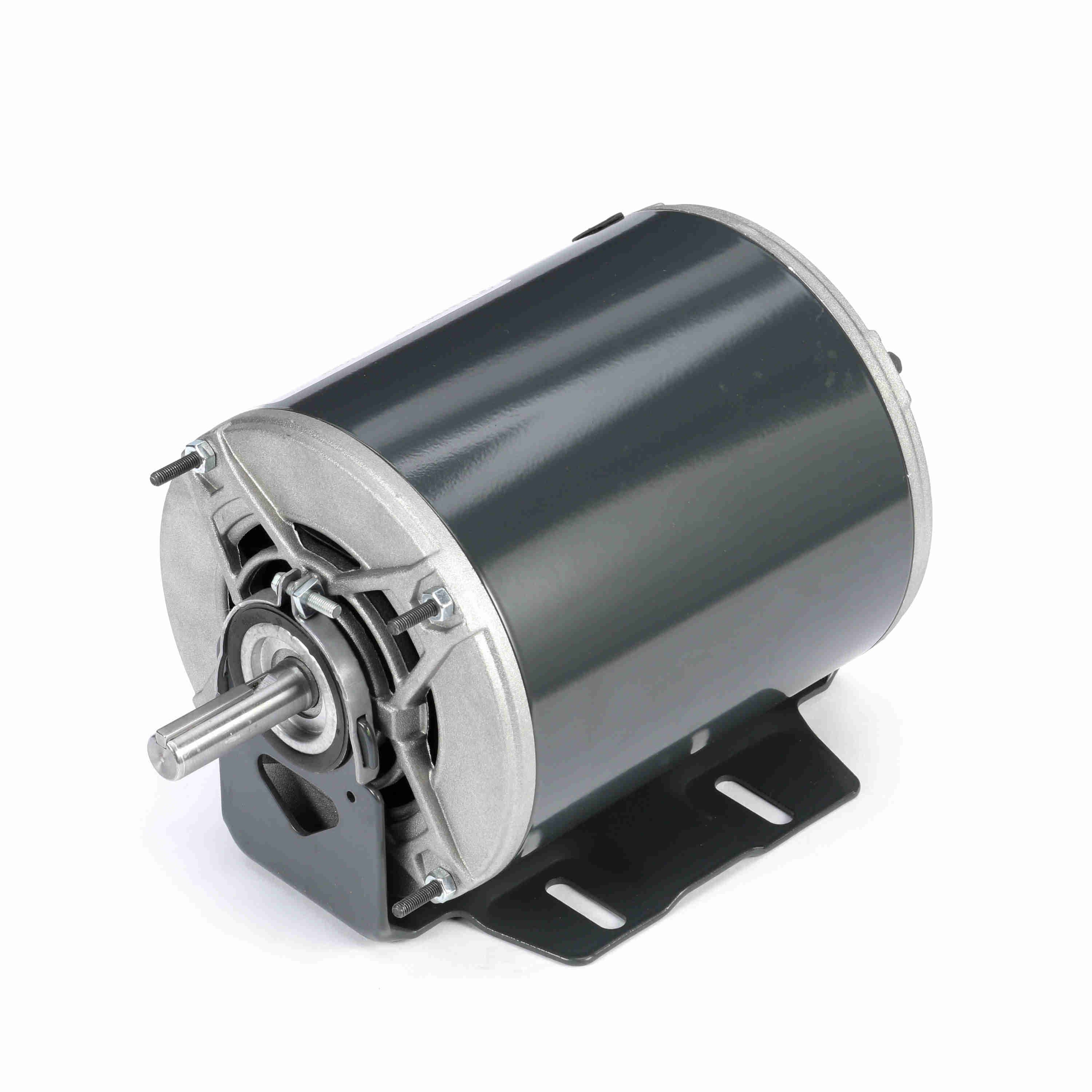

Marathon MH173 Belt Drive Motor 1/3 hp 1725 RPM 115 VAC Split Phase Ball Bearing

Product Description

The Marathon MH173 Belt Drive Motor is designed for reliable performance. This single split-phase motor offers two-speed operation and runs at 1/3 horsepower. With a maximum speed of 1725 RPM and operating at 115 VAC, it is suitable for various industrial applications.

• Single split-phase with two-speed operation
• 1/3 horsepower with a maximum speed of 1725 RPM
• 56 frame with open drip-proof enclosure

Product Highlights

The Marathon MH173 Belt Drive Motor is efficient and versatile. Its resilient ring mounting and ball-bearing system ensure stability and smooth operation.

Product Information

Standard Information

• Brand: Marathon
• MPN: MH173
• Model: 5KH46MN3025

Technical Specifications

• Horsepower: 0.33 hp
• RPM: 1725
• Voltage: 115 VAC
• Frame Size: 56
• Enclosure: Open Drip Proof
• Mounting: Resilient Base
• Material: Rolled Steel
• Amperage: 5.7, 3.2
• Dimensions: 14 x 10 x 9 inches
• Weight: 25 lbs
