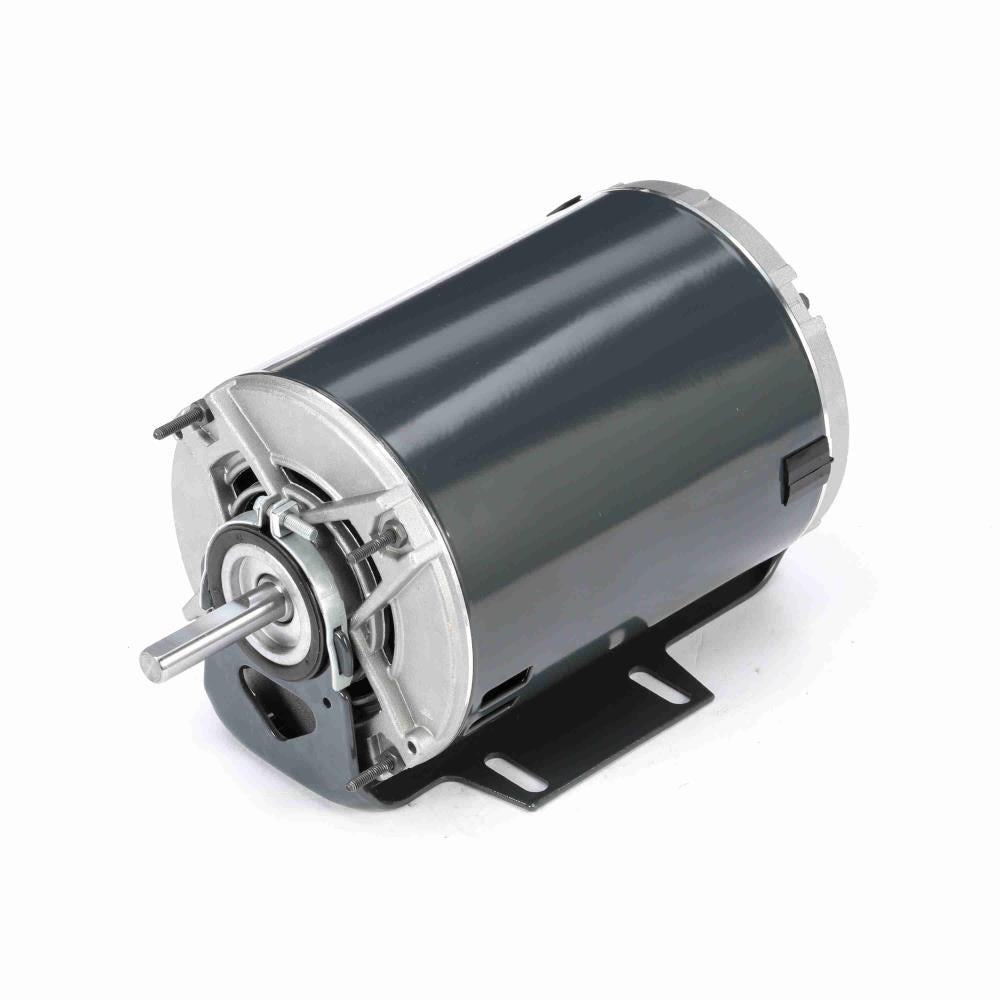

Marathon MH172 H172 48Z Frame Belt Drive Motor 1/4 hp 1725/1140 RPM 115 VAC 1 Split Phase

Product Description

The Marathon Electric MH172 H172 48Z Frame Belt Drive Motor is ideal for various applications. This motor features a single split phase with two-speed operation. It runs at 1/4 hp with a maximum speed of 1725 RPM and operates at 115 VAC. The motor comes with a 48Z frame, open drip-proof (ODP) enclosure, resilient ring mounting, and a ball bearing system. It has auto protection and weighs 21 pounds.

• Single split phase with two-speed operation
• Runs at 1/4 hp with 1725 RPM maximum speed
• 48Z frame, ODP enclosure, resilient ring mounting, ball bearing system

Product Highlights

This motor is designed for belt drive applications, offering reliable performance with its single split phase and two-speed operation. The 48Z frame and open drip-proof enclosure provide durability and safety.

Product Information

Standard Information

• Brand: Marathon Electric
• Model: MH172

Technical Specifications

• Electrical Type: Split Phase
• Horse Power: 1/4 hp
• RPM: 1725
• Frame: 48Z
• Diameter: 5.6 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 115
• Rotation: REV
• Overload Protection: Auto
• Material: Rolled Steel
• Mounting: Resilient Base
• Amperage: 4.2/2.7
• Shaft Type: Single
