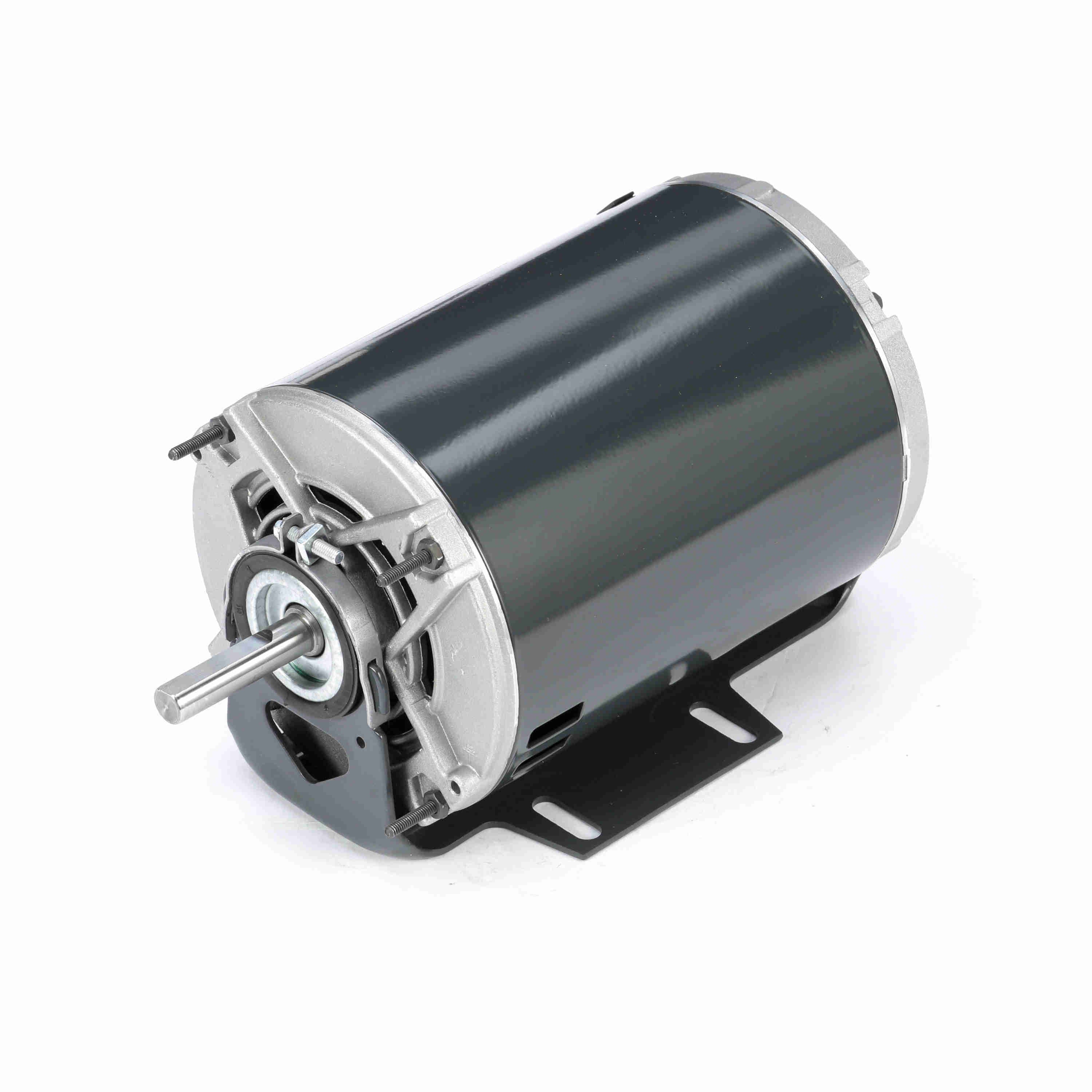

Marathon MH171 Belt Drive Blower Motor 0.25HP 48Z Frame 115V

Product Description

The Marathon MH171 Belt Drive Blower Motor offers reliable performance in various applications. This motor, with model number MH171, is perfect for HVAC systems and other belt drive blower applications. Operating at 0.25 hp, the motor runs at a maximum speed of 1725 RPM and uses 115 volts.

• Single split phase with two-speed operation
• Runs at 1/4 hp with a maximum speed of 1725 RPM
• 48Z frame with open drip proof enclosure

Product Highlights

Designed for use in HVAC systems, this Marathon MH171 motor includes a resilient ring mounting and ball bearing system. The motor’s open drip-proof enclosure ensures protection against moisture and contaminants, making it suitable for various environments.

Product Information

Standard Information

• Brand: Marathon Electric
• Model Number: MH171
• Application: HVAC systems, belt drive blowers

Technical Specifications

• Speed: 1725 RPM
• Voltage: 115 Volts
• Horsepower: 0.25 hp
• Frame: 48Z
• Enclosure: Open Drip Proof (ODP)
• Mounting: Resilient Base
• Amperage: 4.2,2.7
• Shaft Type: Single
