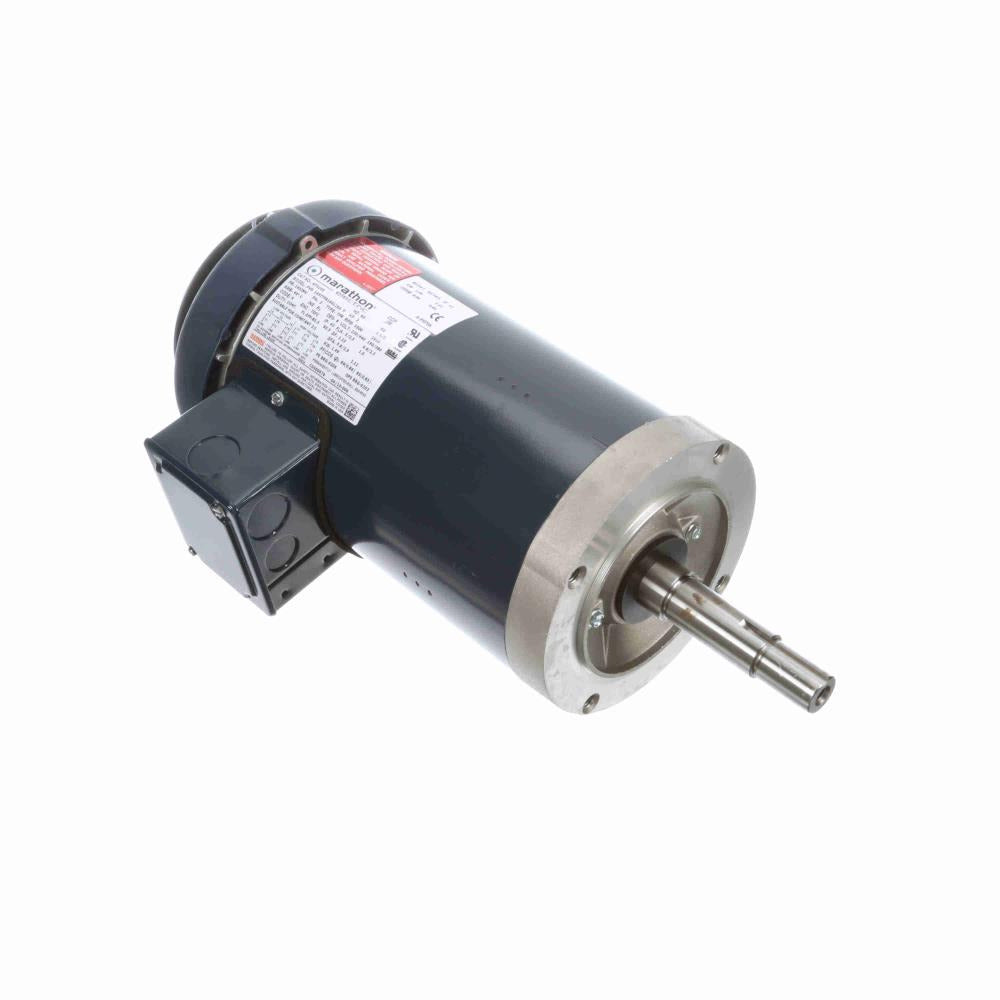

Marathon MGT5106 Close Coupled Pump Motor 2 HP 230/460V 145JMV

Product Description

The Marathon MGT5106 is a close-coupled pump motor designed for various industrial applications. It operates at 2 horsepower with a voltage rating of 230/460 volts. The motor has a three-phase electrical type and a 3500 RPM rotational speed.

• 2 horsepower motor
• Three-phase electrical type
• 3500 RPM speed

Product Highlights

This motor is enclosed in a TEFC (Totally Enclosed Fan Cooled) housing and constructed with rolled steel for durability. It features a single shaft type and is rated for vertical mounting. The motor has a reverse rotation capability.

Product Information

Standard Information

• Electrical Type: Three Phase
• HP: 2
• RPM: 3500
• Frame: 145JMV
• Enclosure: TEFC
• Voltage: 230/460
• Rotation: REV
• Material: Rolled Steel
• Mounting: Vertical
• Amperage: 5.0/2.5
• Shaft Type: Single

Technical Specifications

• Electrical Type: Three Phase
• HP: 2
• RPM: 3500
• Frame: 145JMV
• Enclosure: TEFC
• Phase: Three
• Voltage: 230/460
• Rotation: REV
• Overload Protector: None
• Material: Rolled Steel
• Mounting: Vertical
• Amperage: 5.0/2.5
• Shaft Type: Single
