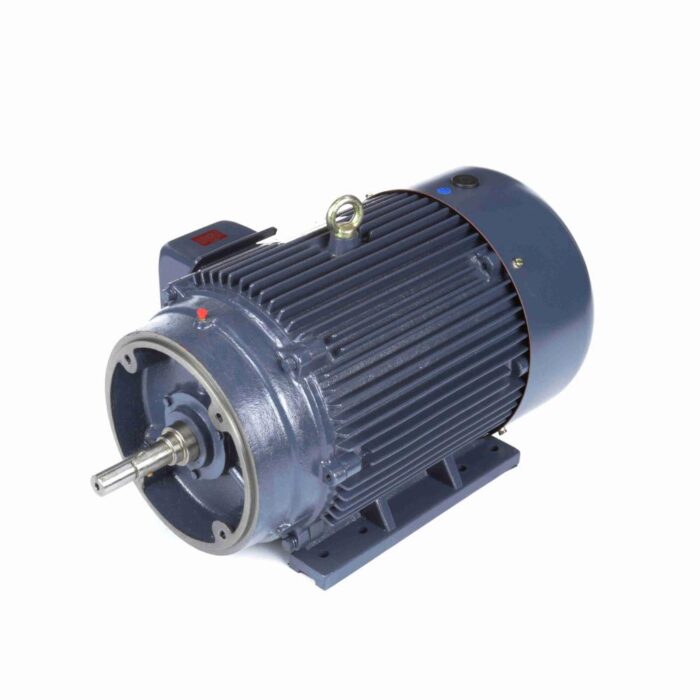

MARATHON MOTORS MGT3136 Close Coupled Pump Motor

Product Description

The MARATHON MOTORS MGT3136 is a close coupled pump motor ideal for continuous duty applications. It is a durable three-phase electric motor built on a rigid base compatible with close coupled pumps. This motor has a totally enclosed fan cooled (TEFC) design and is encased in a sturdy cast iron housing.

• Designed for continuous operation
• Rugged construction with rigid base
• Effective for close coupled pump systems

Product Highlights

This motor is tailored for continuous duty, ensuring reliable performance in various pumping applications.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MGT3136

Technical Specifications

• Electrical Type: Three Phase
• Input Voltage: 230/460V
• Frame Size: 326JM
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Housing Material: Cast Iron
• Horsepower: 50 HP
• Rotation: Reversible
• RPM: 3568
• Number of Speeds: 1
• Output Current: 113.0/56.5 Amps
• Frequency: 60Hz
• Service Factor: 1.15
• Insulation Class: Class F
• Overload Protection: Yes
• Duty Type: Continuous Duty
• Bearing Type: Ball Bearings
• Warranty: One Year Manufacturer Warranty
